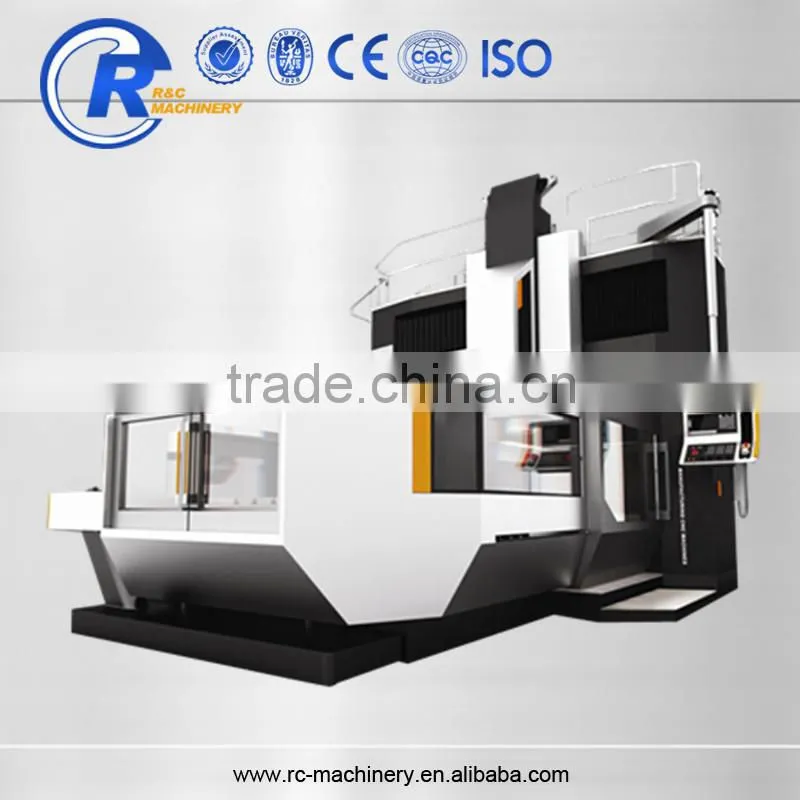

GM2518Z Gantry Machining Center

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

Place of Origin:

Shandong, China

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

Place of Origin Shandong, China

Brand Name R&C

Model Number GM2518Z

Voltage 380V

Weight 28000kg

Certification ISO9001 & CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

GM2518Z Gantry Machining Center

Product Description

Specification and Data
Item		GM2518Z	Unit
Travel	X axis travel	2500	mm
	Y axis travel	1800	mm
	Z axis travel	850	mm
	Distance from spindle nose to workbench	318-1168	mm
	Distance from spindle to post	345	mm
	Distance from two columns	1800	mm
Worktable	Table size	2500*1600	mm
	T-slot(size×quantity×distance)	229180	mm
	Max. load	9000	kg
Spindle	Spindle taper	#50
	Standard spindle type	Gear type BT50-6000	rpm
	Spindle power(continuation/overload 30min)	22/26	Kw
	Spindle torque(continuation/overload 30 min)	560/662	Nm
Feed	Cutting speed	1-8000	mm/min
Feed	Rapid traverse speed	X/Y:16 Z:10	m/min
Accuracy	Position accuracy(total excursion)	X:0.028 Y:0.023 Z:0.018	mm
Accuracy	Reposition accuracy(total excursion)	X:0.011 Y:0.009 Z:0.007	mm
Others	Required air pressure	6.5	Kgf/cm2
	Power supply capacity	50	KVA
	Weight of machine	28000	Kg
	Floor area(length*width)	7700×4500	mm
	Height of machine	4800	mm
Tool type (optional)	Tool type	disc/chain
	Tool magazine specification	BT50
	Tool change time(tool presetting)	3.5/5.5	Sec.
	Tool station	24/32/40
	Max. size of tool(adjacent cutter diameter/length)	Φ105/300	mm
	Max. weight of cutting tools	15/20	Kg
