Home > Products > Glass Tempering Furnace > THP2010 New Condition and Glass Cutting Machine Machine Type mini glass tempering furnace

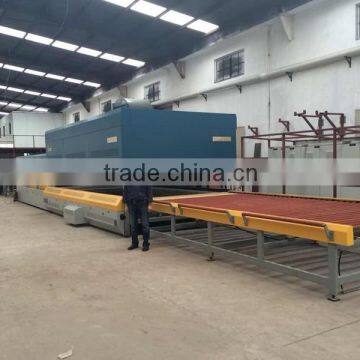

THP2010 New Condition and Glass Cutting Machine Machine Type mini glass tempering furnace

FOB Price

USD $200,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qinhuangdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Glass Tempering Furnace
Production Capacity	15/18 (load/h)	Place of Origin	Hebei, China
Brand Name	R&C	Model Number	THP1307
Voltage	380V	Power(W)	90KW (Heating Power)
Dimension(LWH)	9100x4200x2100mm	Weight	3000kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

THP2010 New Condition and Glass Cutting Machine Machine Type mini glass tempering furnace

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER ROBOTS >> R&C(link)

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

Models	Max. Size( mm)	Min. Size (mm)	Thickness(mm)	Productivity (m²/h)	Installed Power Capacity (KVA)
THP1206	1200x600	80x80	2.8-12	11	100
THP1307	1300x700	80x80	2.8-15	14	100
THP1307	1300x700	80x80	4-19	14	80
THP2010	2000x1000	220x100	2.8-15	30	400
THP2010	2000x1000	220x100	4-19	30	200
THP2212	2200x1200	220x100	2.8-15	40	400
THP2212	2200x1200	220x100	4-19	40	250
THP2515	2500x1500	300x150	4-19	56	315
THP2616	2600x1600	300x150	4-19	58	315

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

-The tempering furnace is designed in according with standard of GB15763.2-2005,ANSIZ97.1 -2004, EN12150.2:2005.

-Degree of temper: Surface pressure is bigger than or equal to 90Mpa. The disparity of stress value in the same piece of glass will be less than 13MPa.

-Fragmentation:There would exist more than 40 pieces of fragments within area of 50x50mm.

-From distance of 1000mm and in natural light, people can not see any flaws like stress cod, breakage, and so on.

-General smoothness would reach 1.5/1000mm or more.

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)


*FLAT GLASS TEMPERING FURNACE*	*BENDING TYPE GLASS TEMPERING FURNACE*

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C(link)

Kindly contact me for further questions.
