Glass Washer And Dryer Machine

Glass Washer And Dryer Machine photo-1
Glass Washer And Dryer Machine photo-2
Glass Washer And Dryer Machine photo-3
Glass Washer And Dryer Machine photo-4
Glass Washer And Dryer Machine photo-5
US$ 888 - 2,199 MOQ: 1 Set
Key Specifications
Get Latest Price
Machine Type:
Other, Glass washer
Production Capacity:
1-5m/min
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or as customers' request
Delivery Detail:
Delivery time depends on order quantity.
Machine Type Other, Glass washer
Production Capacity 1-5m/min
Place of Origin Henan, China
Brand Name HENTO
Model Number HTO- QX1200
Voltage 380V/220V
Power(W) 8.5kw
Dimension(L*W*H) 2500mm*1600*1100mm
Weight 550kg
Certification Other, Glass washer
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas

 Glass Washer And Dryer Machine

Product Description



1.Machine introduction of Glass Washer

1). This glass cleaning machine is designed for cleaning flat glass with thickness 2mm-25mm. It is combined with glass pass-in, washing, drying and glass passing

out. The glass cleaning machine is easy to operate with good cleaning effect, reliable performance.

2).Adopts 3-class drum-type brushes with cold water cleaning and double air knife hot wind drying system. The multi-functional combination of independent blower, cycling water and hot air makes the operation more convenient.

3).The roller and brush head adopt random up/down adjustment system, which is suitable for cleaning coated glass and Low-E glass. And it is convenient to clean water tank and adjust brushes' position.

4).Our glass washing machine adopts imported drive and step-less speed regulation.

5).As cleaning system and drying system can be adjusted according to requirements,the glass washing machine is easy to process.

6).Rubber rollers in the washing section are processed by the grinding machine, so even the thin glass will not be broken.

7).Shield and water tank of our glass washing machine is made by stainless steel.

2.Technical parameters of Glass Washer

Model

HTO- QX1200

Power

8.5kw

Voltage

380v 50hz

Pressure

0.5-0.8MPA

Working speed

1-5m/min

Glass washing depth

2-12mm

Washing glass dimension

300*300-1200mm*2400mm

Brushing roll

Squeeze water roll

Hot Air Knife

1

Cold knife

1

Dimension

2500mm*1600*1100mm

Pictures of Machine

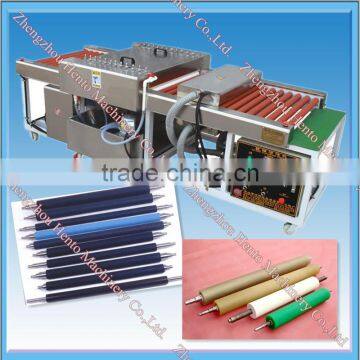

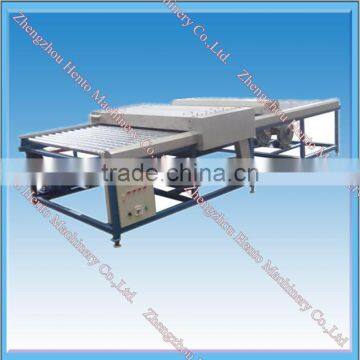

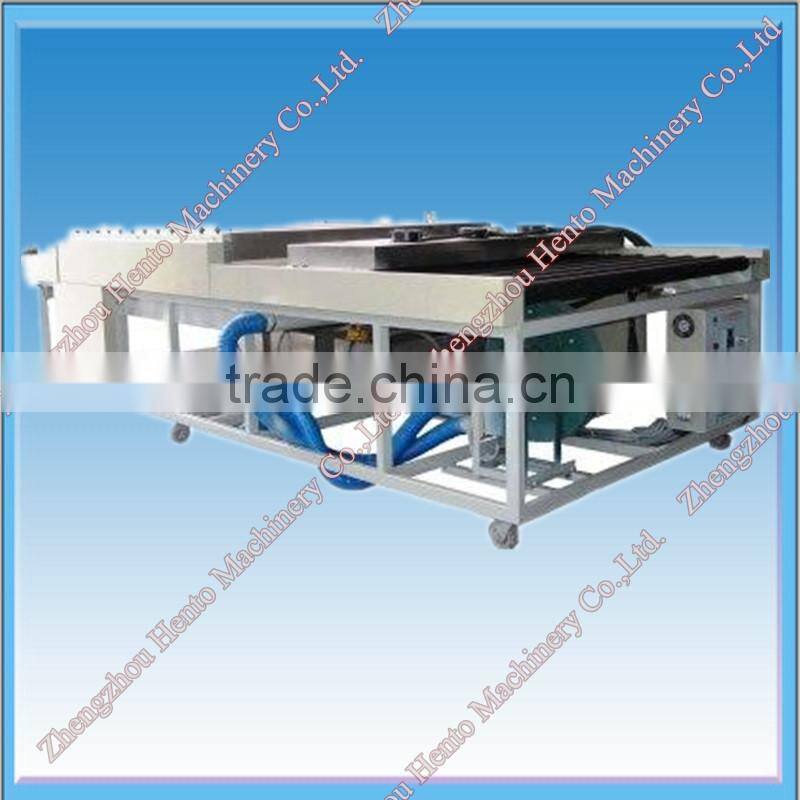

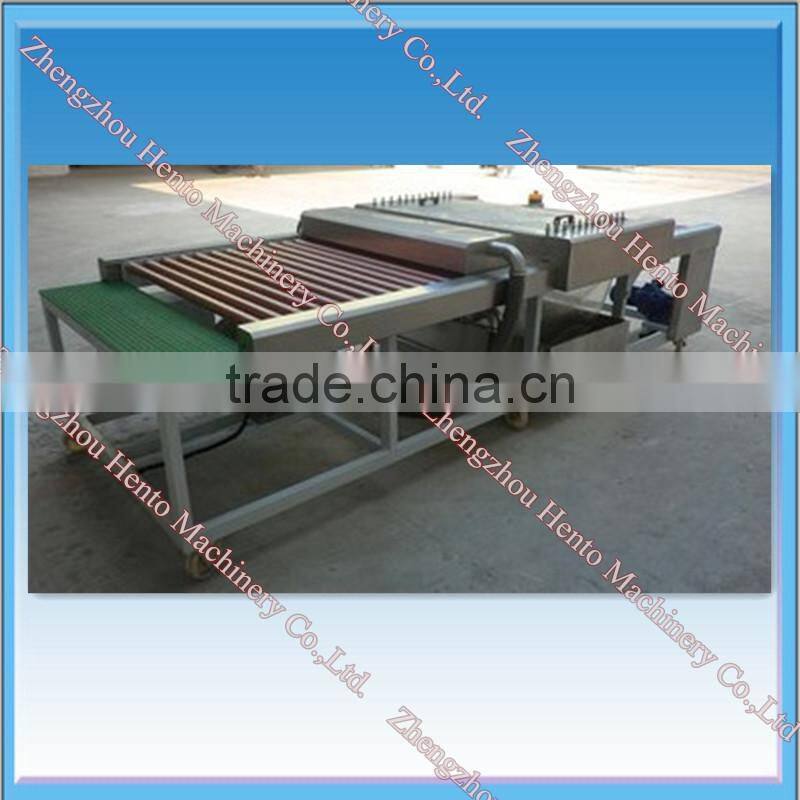

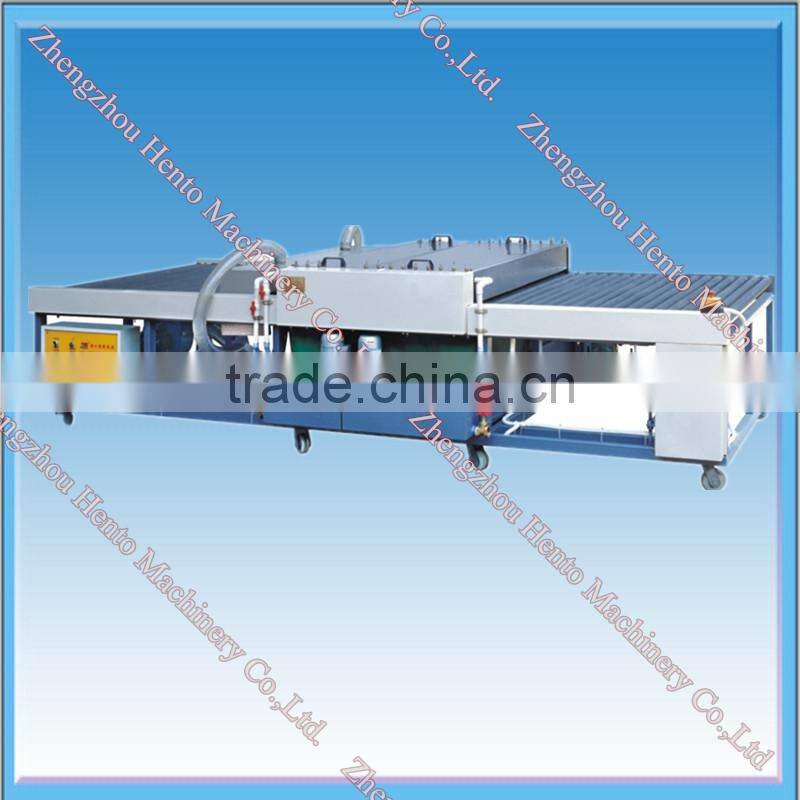

3.Pictures of machine

Glass Washer And Dryer MachineGlass Washer And Dryer MachineGlass Washer And Dryer MachineGlass Washer And Dryer MachineGlass Washer And Dryer Machine





Company Information

4.Company Information

Our company,Zhengzhou Hento Machinery Co.,Ltd.,is the professional manufacturer.We have produced this machine for more than 10 years and HENTO brand is becoming more and more popular.Many companies in China bought machines from our company,and resold them in the international market.

What is more,our company have passed the supplier assessment of German TUV Rheinland and Swiss SGS.We have sent the certificates to you in attachment,kindly check them.

Glass Washer And Dryer MachineGlass Washer And Dryer Machine

FAQ

5.FAQ:


1.What is our advantages?
A.We are manufacturers
B.Low MOQ: One set.
C.OEM Accepted : We can produce your design .
D.Good Service : We treat clients as friend.
E.Good Quality :We have strict quality control system .Good reputation in the market.
F.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).


2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?
After we made agreement on the product and price, we will make proforma invoice for your confirmation.when we got your payment (deposit) we will place the order and send goods within 5 working days generally. when goods are ready, we will prepare for our QC report, if there is no problem, we will ship goods to destination port as your required.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. If you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder to help you clear the custom.

4.What's your payment term?
For trial orders:100% T/T paid in advance. For block orders, 50% down payment and balance before shipping.please confirm everything clearly before you make payment.

5.what's your products' advantages ?
A. Good quality and competitive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. After-sale services, we offer one year guarantee.

6.Which brands you already cooperated with in the past ?
In the foreign markets, we have cooperated with more than 50 wholesalers, also the ultimate users. They are all satisfied with our products' quality.
