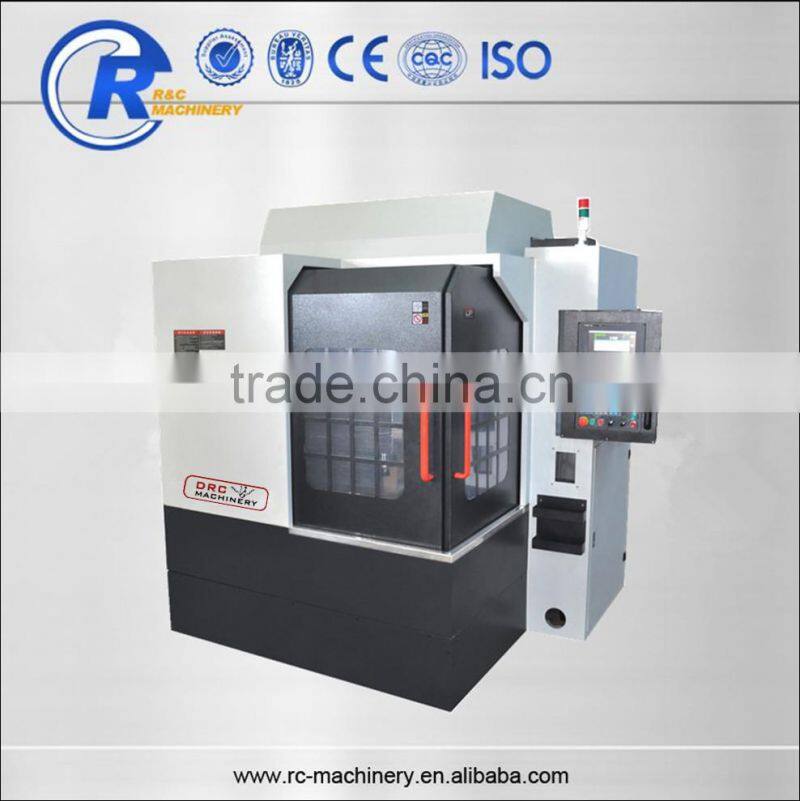

Help CenterRC-6050 High Reputation Engraving and Milling Machining Center for Bath Product
Related Products
-
RC-T5 High Speed CNC Drilling and Tapping CenterUS$ 40,000 - 50,000MOQ: 1 Set -
RC-T5 Fine Manuafacture Vertical Drilling and Tapping Machine CentreUS$ 40,000 - 50,000MOQ: 1 Set
-
RC-T5 Good Quality Vertical Drilling and Tapping Machine CenterUS$ 40,000 - 50,000MOQ: 1 Set
-
RC-6060C High Speed Engraving Milling/Carves-milling Machine CenterUS$ 20,000 - 40,000MOQ: 1 Piece
-
RC-1480 High Precision CNC Engraving Milling MachineUS$ 20,000 - 40,000MOQ: 1 Set
Structural features:
1.RC-6050 is a kind of fully enclosed design, and it is convenient to prevent processing dust pollution.Machine body is fully casting with stable structure and great weight-bearing ability.
2.Machine has been equipped with accurate bidirectional ball screw of famous brand, Taiwan rectangle rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor. High-speed main axis and cooling system with high accuracy and high power make amplitude smaller and three-axis more stable.
3.Machine has been equipped with automatic cutter setting device.
Main application:

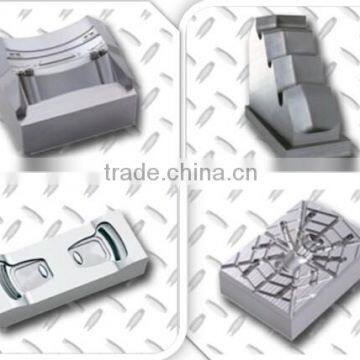

The machine is widely adopted in small and medium sized auto parts molds, plastic molds stamping molds and electrodes, etc. It has high accuracy and efficiency, and it is the fast-speed specialized carving milling CNC machine.
specifications:
| Specification | ||
| Item | Standard Values | Unit |
| X/Y/Z travel | 600*500*300 | mm |
| Table size | 600*500 | mm |
| Table flatness tolerance | ≤0.03 | mm |
| Spindle deviation | <0.005 | mm |
| X/Y/Z control resolution | 0.0015625 | mm |
| X/Y/Z motion positioning accuracy | ±0.01/300 | mm |
| X/Y/Z repeatability | ±0.00625 | mm |
| X/Y/Z operating sensitivity | <0.005 | mm |
| Z axis spatial height | 350 | mm |
| Machine weight | 3000 | kg |
| Max.carving power consumption | 12 | kw |
| Max.caving speed | 6000 | mm/min |
| Papid traverse | 10000 | mm/min |
| X/Z perpendicularity | 0.01/300 | mm |
| Spindle speed | 6000-18000/24000 | r-min |
| Power of main motor | 5.5 | kw |
| Drive system | AC servo | |
| Working voltage | 380V/50Hz | |
| Overall dimension | 1900*1800*2400 | mm |

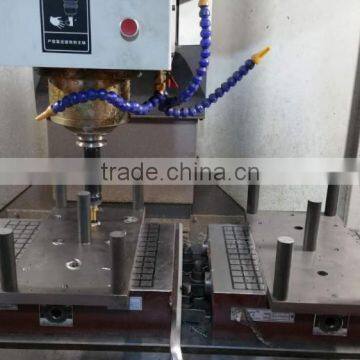

Product Show
