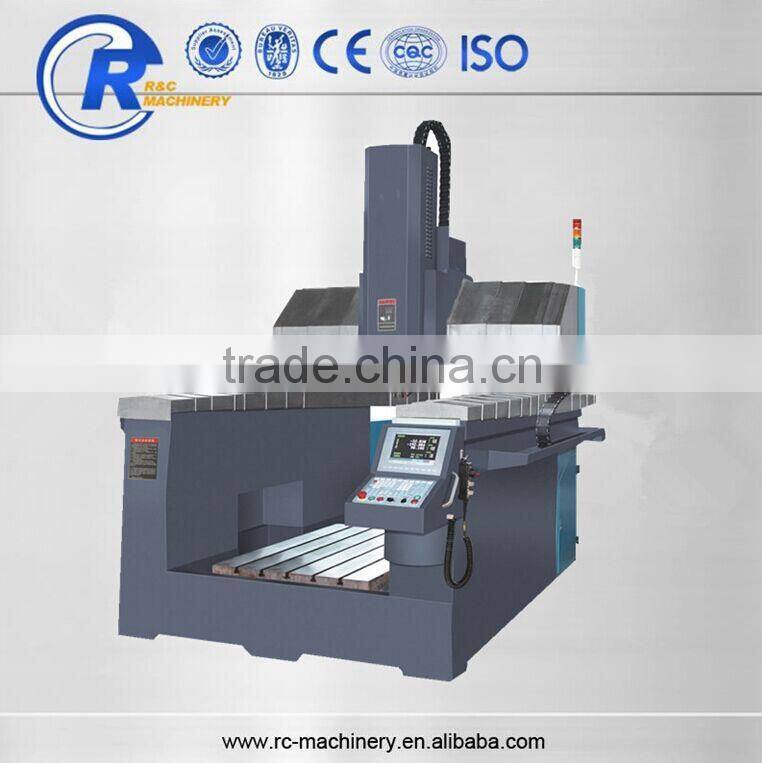

RC1480 HIGH PRECISION CNC CARVNG AND MILLING MACHINE

IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C

Item

         RC1480

Unit

X/Y/Z travel

800*1400*700

mm

Table size

900*1500

mm

Table flatness tolerance

±0.02

mm

Spindle deviation

<0.005

mm

X/Y/Z control resolution

0.0015625

mm

X/Y/Z motion positioning accuracy

±0.01/300

mm

X/Y/Z repeatability

±0.00625

mm

X/Y/Z operating sensitivity

<0.005

mm

Z axis spatial height

1080

mm

Machine weight

8500

kg

Max.carving power consumption

15

kw

Max.caving speed

6000

mm/min

Papid traverse

8000

mm/min

X/Z perpendicularity

0.01/300

mm

Spindle speed

6000-18000/(r-min)

r-min

Power of main motor

7.5

kw

Drive system

AC servo

Working voltage

380V/50Hz

Overall dimension

3000*2300*3000

mm

IMAGE > STRUCTURAL FEATURES >MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C

KR-1480 is kind of open design, and it is convenient for users to load and unload processing parts. Machine body is fully casting with stable structure and great weight-bearing ability.

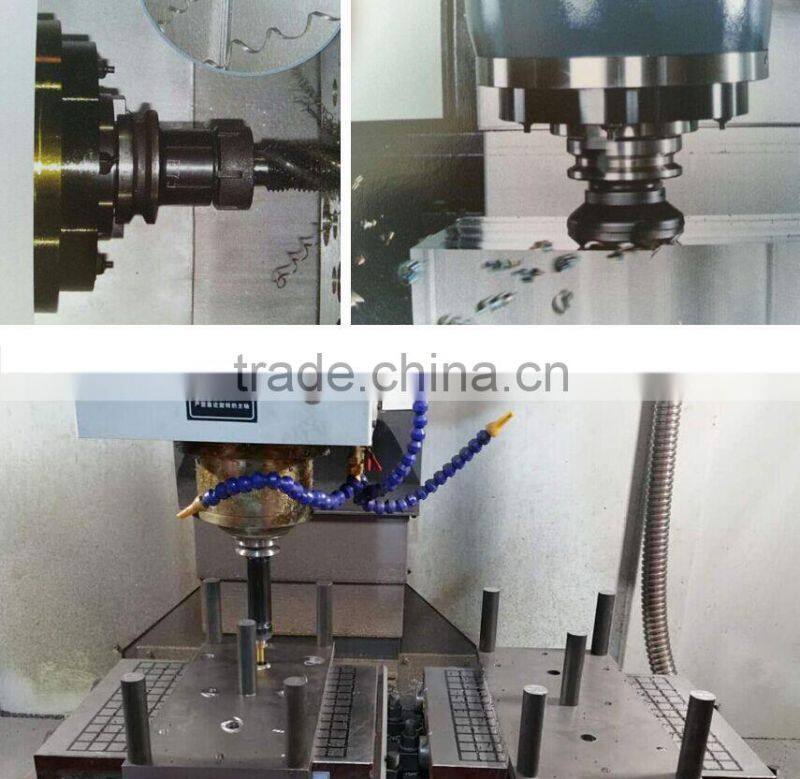

Machine has been equipped with accurate bidirectional ball screw of famous brand, Taiwan rectangle rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor. High-speed main axis and cooling system with high accuracy and high power make amplitude smaller and three-axis more stable.

Machine has been equipped with automatic cutter setting device.

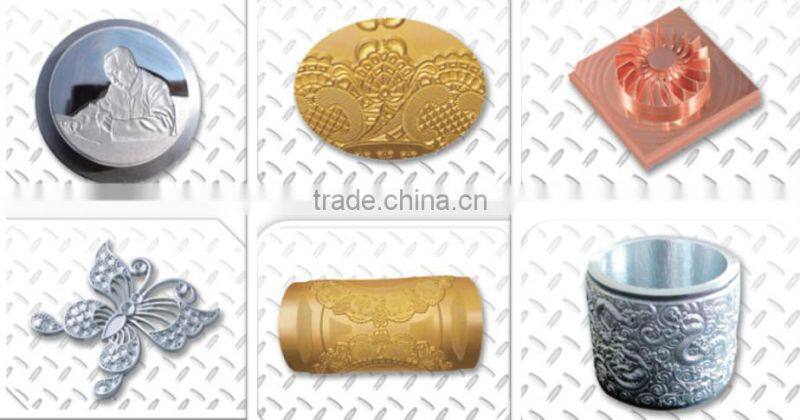

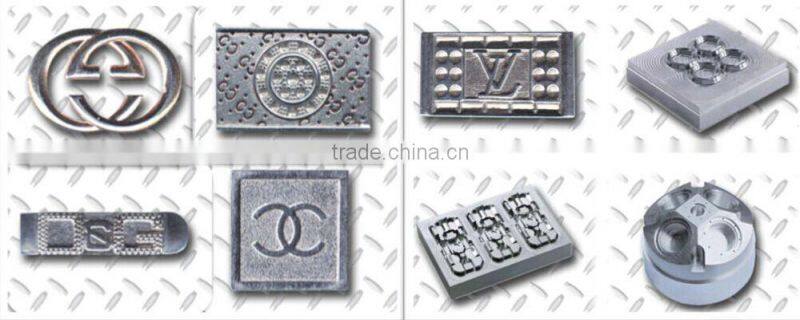

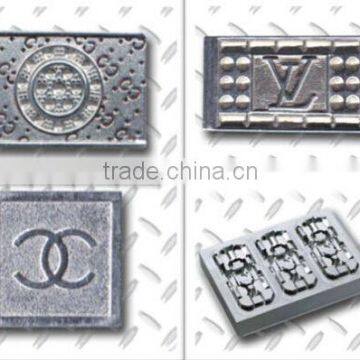

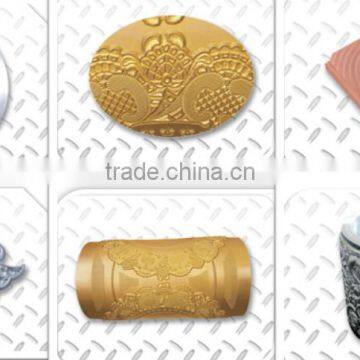

The machine is widely adopted in small and medium sized auto parts molds, plastic molds stamping molds and electrodes, etc. It has high accuracy and efficiency, and it is the fast-speed specialized carving milling CNC machine.
