Economical Horizontal Boring Milling Machine CNC DBM 130

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	DBM130
Type	Horizontal	CNC or Not	CNC
Voltage	380V/50Hz/3Ph	Power(W)	22/30
Dimension(LWH)	797060804790	Weight	40000KG
Certification	ISO9001 CE	Warranty	12 Months
After-sales Service Provided	Overseas service center available

Product Description

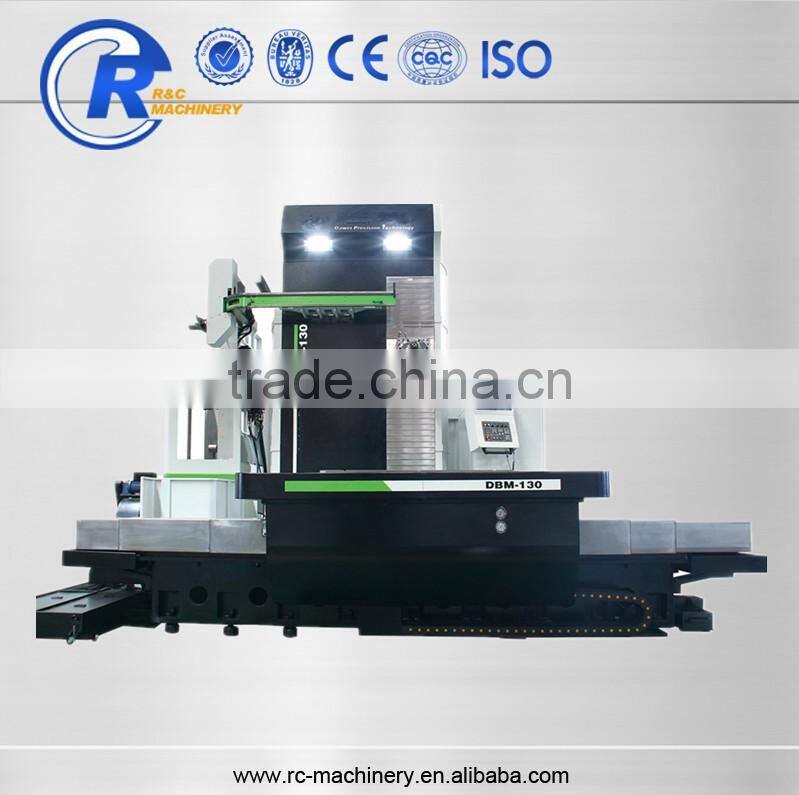

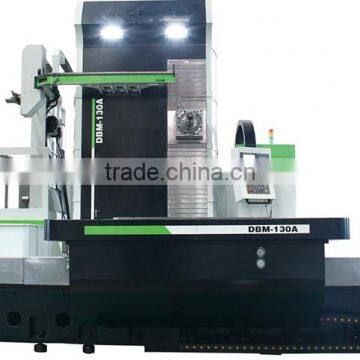

Economical Horizontal Boring Milling Machine CNC DBM 130

Main Futures

With nice appearance overall,symmetry coordinate layout . Horizontal boring machine bed, column, down the seat rails are rectangular, and good stability. Guide the use of refrigeration hardened, high wear resistance. Synchronous digital display, intuitive and accurate, can improve efficiency and reduce costs.

Technical parameters

Model	Unit	DBM-130	DBM-130A	DBM-130B
X-axis travel (standard)	mm	2000	3500	4500
X-axis travel (optional)	mm	2500/3000/3500	4500/5500	5500
Y-axis travel (standard)	mm	2200	2600	3500
Y-axis travel (optional)	mm	2600	3500
Z-axis travel (standard)	mm	1500	1500	2000
Z-axis travel (optional)	mm	2000	2000	2500
W-axis travel (standard)	mm	700	700	700
Spindle
Center of spindle worktable surface	mm	0~2200	0~2600	0~3500
Nose of spindle to work center	mm	-40~2160	100~2000	100~2000
Spinde diameter	mm	130	130	130
Spindle taper		ISO 50	ISO 50	ISO 50
Rotating spindle speed (standard)	rpm/min	35~3000	35~3000	35~3000
Number of steps of rotating speed of spindle		2 Steps	2 Steps	2 Steps
Transmission mode		Gear box	Gear box	Gear box

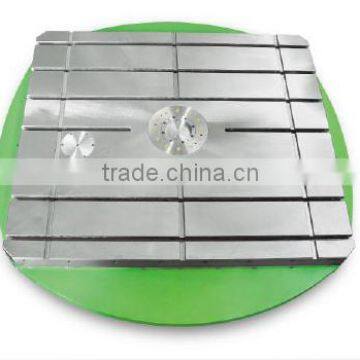

Worktable
Table size (optional)	mm	1400×1600 （1600×1800）	1800×2200 （2500×2500）	2500×2500
Division angle	deg	0.001°	0.001°	0.001°
Reference aperture	mm	Φ140H7	Φ330H7	Φ330H7
Max. load on worktable	kg	8000/10000	15000/20000	20000/25000
T-shot	mm	24H7×200×7	24H7×150×11	24H7×150×15
Division precision	sec	15	15	15 Repetitive locating precision
Transmission mode
X, Y, Z-axis		Direct-drive	Direct-drive	Direct-drive
W-axis		Belt-drive	Belt-drive	Belt-drive
Y-axis counterweight		Hyd. Type	Hyd. Type	Hyd. Type
Cutting speed X/Y/Z/W	m/min	10/10/10/5	10/10/10/5	10/10/10/5
Rapid traverse speed X/Y/Z/W	m/min	10/10/10/8	10/10/10/8	10/10/10/8
Tool magazine and automatic toolchanger (optional)
Capacity of tool magazine		60	60	60
Tool selecting mode		Absolute	Absolute	Absolute
Tool changing type		Arm type	Arm type	Arm type
Tooling		BT/CAT/DIN #50	BT/CAT/DIN #50	BT/CAT/DIN #50
Max. tool weight	kg	25	25	25
Max. tool length	mm	500	500	500
Max. tool diameter (no adjacent tool)	mm	Φ125/250	Φ125/250	Φ125/250
Spindle and motor
Spindle motor	kw	FANUC 22/30	FANUC 22/30	FANUC 22/30
Max. torque of spindle	Nm	3002/4093	3002/4093	3002/4093
Precision
Locating precision of machine tool	mm	±0.010	±0.010	±0.010
Repetitive locating precision of machine tool	mm	±0.005	±0.005	±0.005

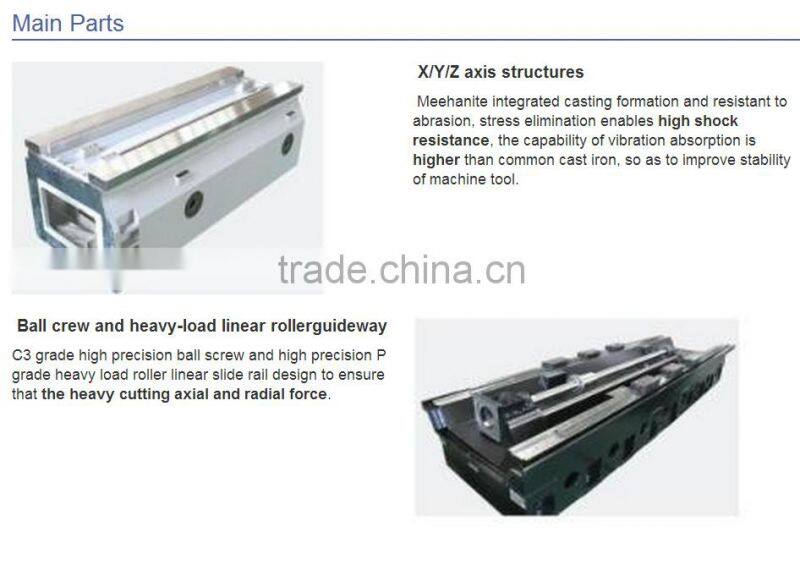

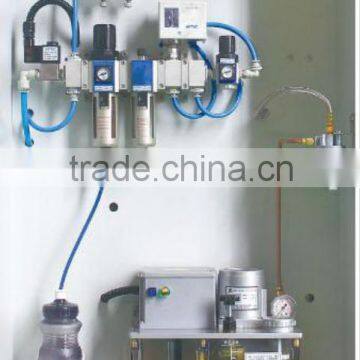

Main parts

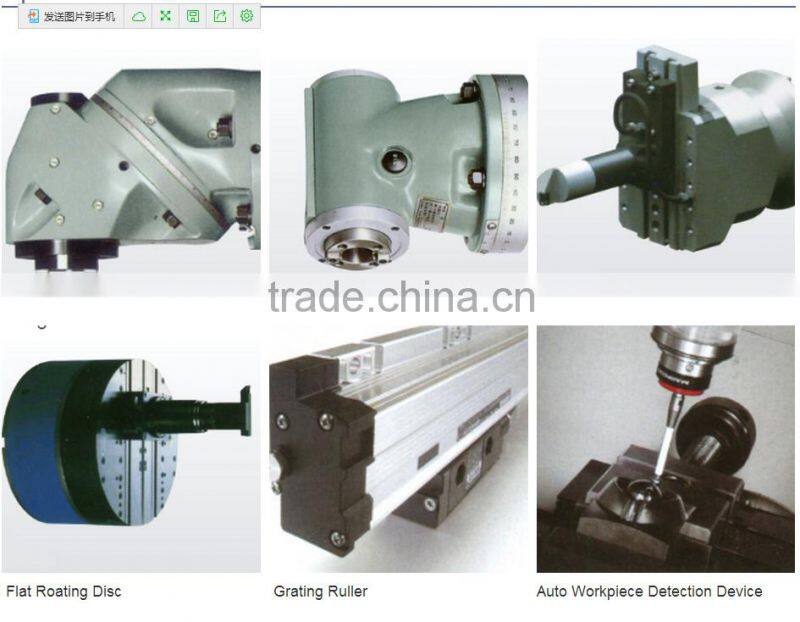

Optional Attachment

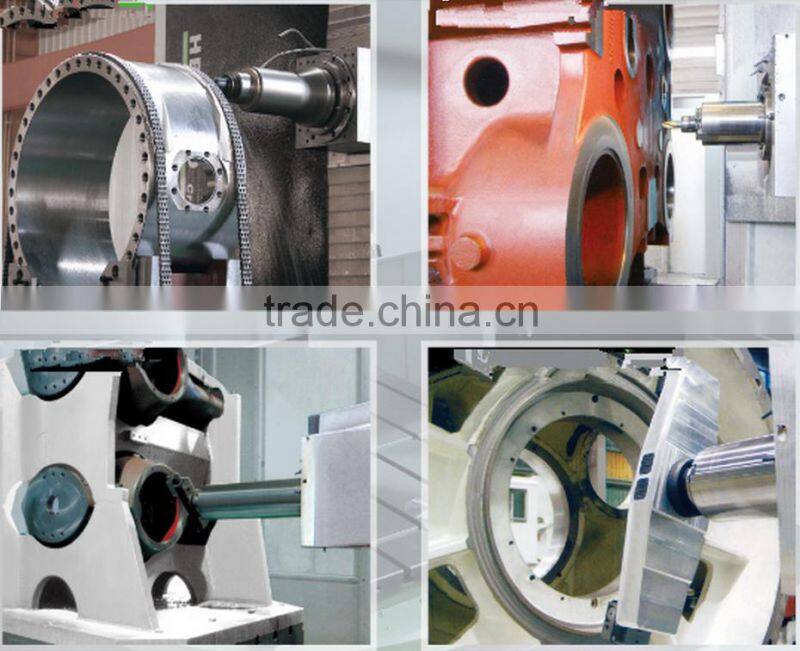

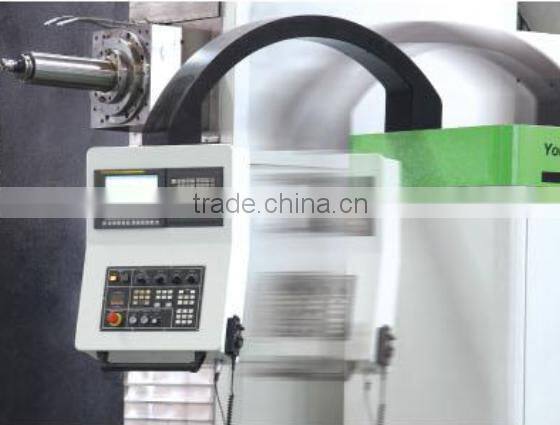

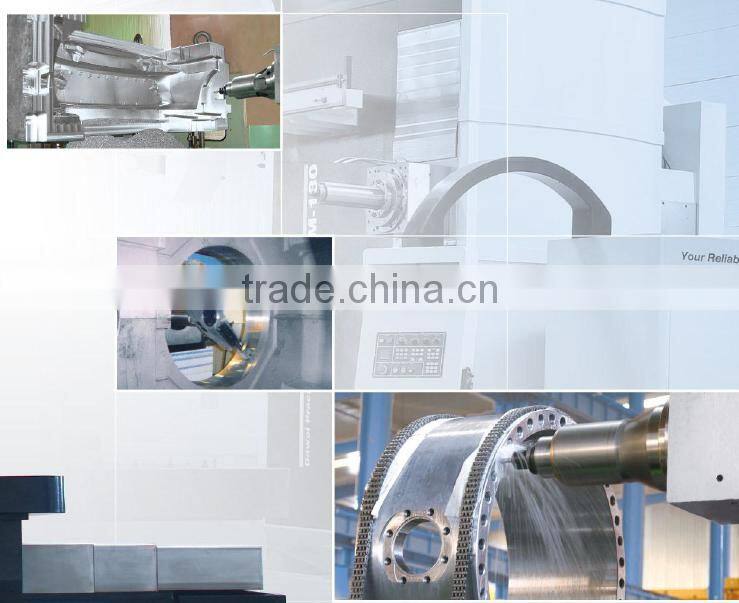

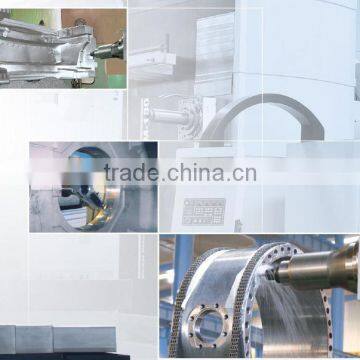

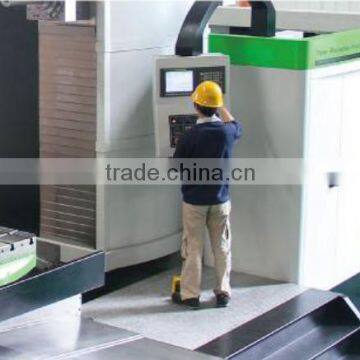

Detailed Images

Packing & Delivery
