High Quality Refractory Silicon Carbide Crucibles-NSIC

Henan JK Industry Co., Ltd.
High Quality Refractory Silicon Carbide Crucibles-NSIC thumbnail-1
High Quality Refractory Silicon Carbide Crucibles-NSIC thumbnail-2
High Quality Refractory Silicon Carbide Crucibles-NSIC thumbnail-3
High Quality Refractory Silicon Carbide Crucibles-NSIC photo-1
High Quality Refractory Silicon Carbide Crucibles-NSIC photo-2
High Quality Refractory Silicon Carbide Crucibles-NSIC photo-3
US$ 3 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Shape:
Plate
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Hongkong Beijing etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Shape Plate
Material Silicon Carbide (SiC)
SiO2 Content (%) silicon carbide plates
Al2O3 Content (%) silicon carbide plates
MgO Content (%) silicon carbide plates
CaO Content (%) silicon carbide plates
CrO Content (%) silicon carbide ceramic plates
SiC Content (%) >90%
Model Number B4-SCC-07
Brand Name JK



High Quality Refractory Silicon Carbide Crucibles



Product Overviews

Description of silicon carbide crucibles

Silicon carbide crucible have superior characteristics, such as corrosion Resistance, high temperature tolerance, oxidation

resistance, no dropping slags, superior thermal Conductivity, high bending strength, non-deformation for a long time servi

ce, etc .



The series of beams are ideal kiln furnitures for sanitary ceramics, household porcelain, building ceramics, electric porcelain, refractories, etc. They are specially used for load-bearing beams in shuttle kilns, tunnel kilns, roller hearth kilns and othe

r industrial kilns.



Main Technology of silicon carbide crucibles

Item



Unit



Data

RSiC

SiSiC

N-SiC

SSiC

Bulk Density

(g/cm 3 )

2.60-2.72

≥3.02



≥2.75



2.95



Porosity

%

≤17

≤0.1

10

0.5

Bending Strength

(4-point)

MPa(at20℃)

≥ 90

≥250

150

350

MPa(1200℃)

≥100

≥280

170

450

Thermal

Expanssion

10-6 k-1

4.8

4.8

4.6

4.2

Thermal

conductivity

W/m.k

23

45

25

90

Youngs Modulus

GPa(20℃)

240

320

280

420

Working Temp.

℃

1650

1350

1450

1700



Parameter of silicon carbide crucibles

Chemical Composition SIC >=

 90%

Physics

property

Max. Service Temp.

1400ºC

Refractoriness >=

39SK

2kg/cm2 Refractoriness under

load T2 >=

1790ºC



Modulus of Rupturt at room

temp >=

500Kg/cm2

Modulus of Rupture at 1400ºC

>=

550Kg/cm2

Compressive strenght >=

1300Kg/cm2

Thermal Expansion at 1000ºC

0.42%-0.48%



Apparent Porosity

≤20%

Bulk Density

(2.55-2.7)g/cm3

Thermal Conductivity at 1000ºC

(13.5-14.5) Kcal/m.hr.ºC







product shows

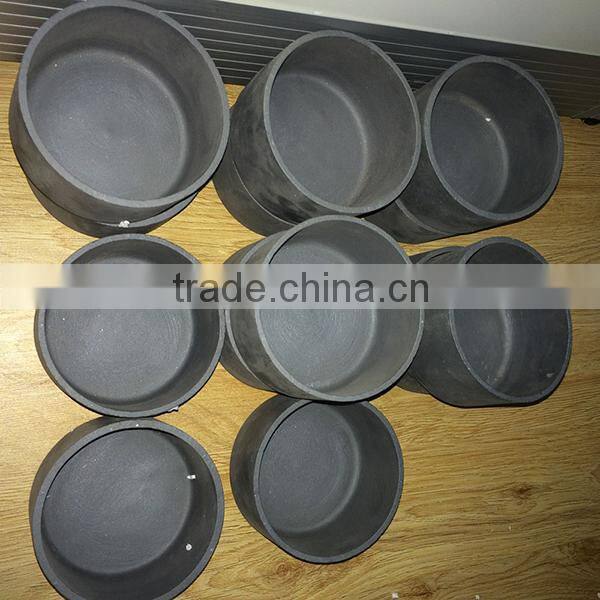

High Quality Refractory Silicon Carbide Crucibles-NSIC

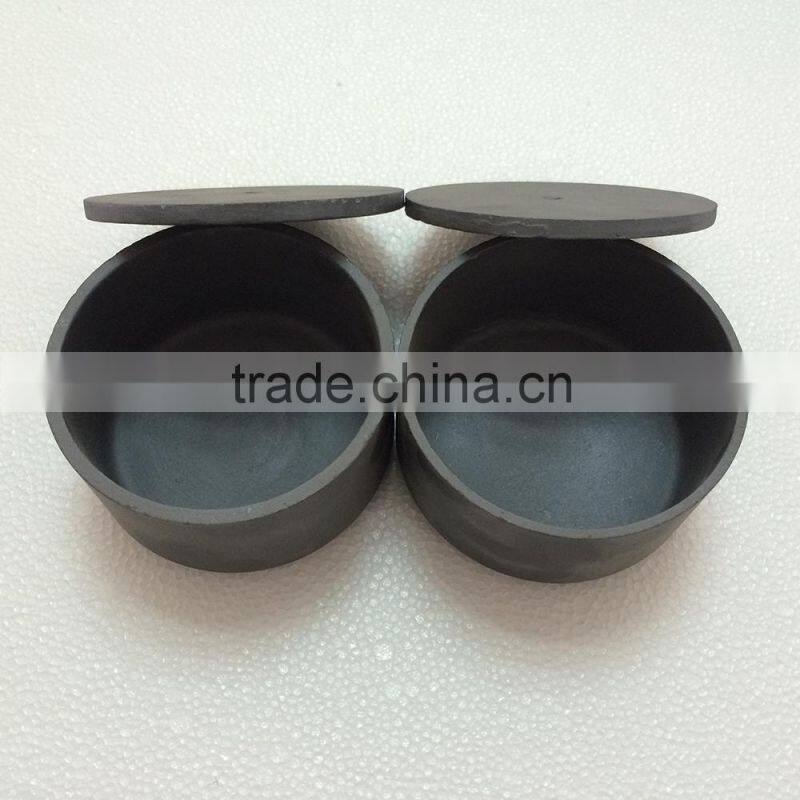

High Quality Refractory Silicon Carbide Crucibles-NSIC

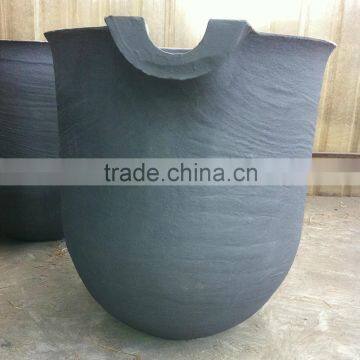

High Quality Refractory Silicon Carbide Crucibles-NSIC
