ISO9001 Certification Ceramic Chamber Heater 12V
Cearmic Fiber Heater combines a heat source with superior high temperature insulation - an ideal solution for many
industrial heating applications. These heaters deliver fast, efficient and reliable uniform heat to temperatures of 1250°C. Designed to deliver power densities up to 1500 watts/ft2, we are one of the most versatile embedded element radiant heaters produced. OEM furnace and thermal process equipment manufacturers plus end users alike have embraced this combination heating and insulating system.

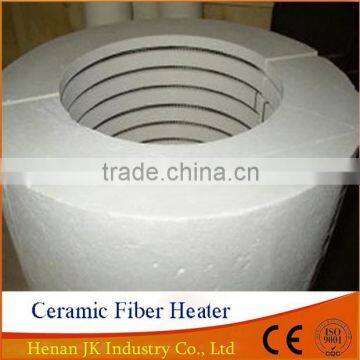

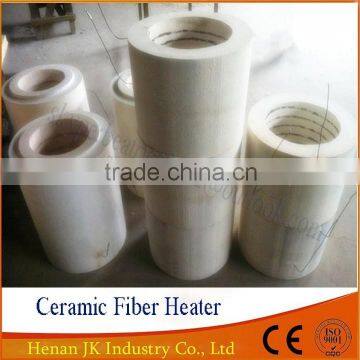

Flat Panel, Full Cylinder and Semi-Cylinder Fiber Insulated Heaters consist of high quality helically-wound Fe-Cr-Al alloy resistance wire elements embedded in a rigid body of vacuum formed high temperature refractory fiber. The lightweight ceramic fiber insulation has very low thermal mass and thermal conductivity and thus can handle extremely rapid cycling. Elements are typically mounted flush with the heated surface. The diameter of the helically wound element coil is kept to a minimum, reducing the difference between the element and chamber temperature, thus ensuring long heater life, and enabling the design and manufacture of extremely responsive heating systems.
All Fiber Insulated Heaters are 100% organic free and will not smoke or outgas when heated. Fiber Insulated Heaters are available in flat panel, full cylinder and semi-cylinder shapes - with several lead styles.
Chamber Heater Characteristics:
Thermal Response Power (watts) plus Hot & Cold Face Temperatures (°C) vs. Time for a test furnace composed of a custom cylindrical heater (6in. ID x 10in. OD x 6in. L, 1200W, 120V) with 2in. thick Alumina Silica InsulationType AXL discs on each end. |
|
Electrical Change The electrical characteristics of these heaters change with temperature due to a shift in resistivity of the alloy used in the heating coil. At 1100C there is a ~3.8% increase in resistance and decrease in current and power. | |
Safe Operation Zone Fiber Insulated Heaters Type FIH are designed to operate at power densities up to 1500 watts/ft2 at 1100C. They may, however operate at significantly higher power densities at lower temperatures and still provide long life.
|
|
Chamber Heater Availability
ITEM | DESCRIPTION | SHIP WT. (lb.) |
CX15120A | C, 1in. x 3in. x 6in., 200w, 60V | 5 |
CX15180A | C, 3in. x 6in. x 12in., 1200w, 120V | 8 |
CX15270A | C, 8in. x 12in. x 12in., 3100w, 240V | 12 |
Flat Panel | Semi-Cylinder | Cylinder |
|
|
|
N & T = 2in. | M = 2in., T = 1in. | M = 2in. |
Fiber Insulated Heaters are also available on a custom basis. Typically manufactured to customer specification, we can design and construct units to satisfy a range of heating needs.
Chamber Heater Molybdenum Disilicide Heating elements
1750 Celsius Maximum Operating Temperature in Air
1600 Celsius Maximum Operating Temperature in Nitrogen, Argon or Helium
1450 Celsius Maximum Operating Temperature in Hydrogen Atmospheres
Excellent resistance to oxidation at temperatures above 1200 C.
Available in Cylindrical, Split Tube and Rectangular Configurations
Limited Complete Furnace Manufacturing (upon request)
Applications include semiconductor production, gem production, laboratory and research, annealing, sintering, heat treating, metal melting
Chamber Heater with Silicon Carbide Heating elements
1500 Celsius Maximum Operating Temperature in Air
1600 Celsius Maximum Operating Temperature in Nitrogen, Argon or Helium
1450 Celsius Maximum Operating Temperature in Hydrogen Atmospheres
Excellent resistance to oxidation at temperatures above 1200 C.
Available in Cylindrical, Split Tube and Rectangular Configurations
Limited Complete Furnace Manufacturing (upon request)
Applications include semiconductor production, gem production, laboratory and research, annealing, sintering, heat treating, metal melting
Furnaces can be configured to operate at 208 or 240 line voltage in single or three phases
Fiber Insulated Heater Suggested Application
1. Heating source and primary thermal insulation in furnaces and industrial process equipment operating to 1200C
2. High temperature hot plate heating element.
3. Heating source for molten metal launders, troughs and distribution boxes.
To Order Cearmic Fiber Heater Standard FIH: order online or specify quantity, item # and description. Custom FIH: specify quantity and description (by supplying drawings, sketches, written descriptions, Fiber Insulate Heater Questionaire or material specifications). |

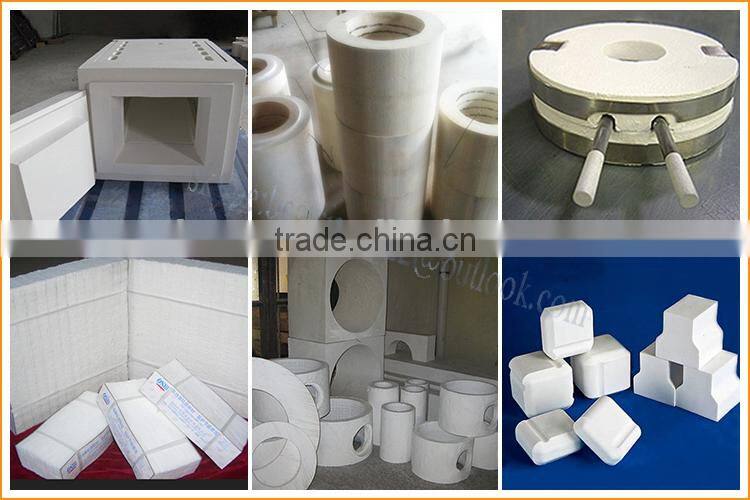

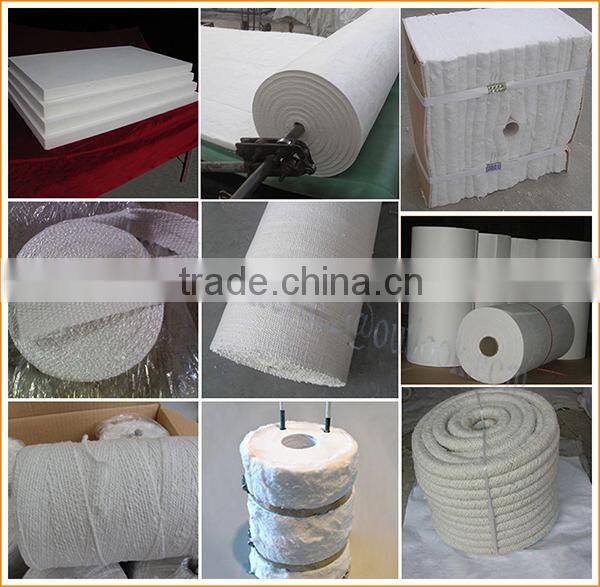

Our Other Ceramic Fiber Products
(1) Packing: standard export packing , wooden case , cartoon case, It will be protect the products well.
(2) Shipping: Fast delivery, in general, it needs 5-15days after payment, and multiple transportation
methodsfor yourchoose, by sea/air/express/by the seller's shipping agaent are OK.
--By DHL/Fedex (Door to door, Home delivery service)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ shipping agent
(1) JK Cooperation Limited Company, located in the center of Henan Province -Zhengzhou.
(2) We have been working in Export&Import for 8years, our partners are across South America, Asia, African, Europen etc.
(3) We provide top quaity high temperature product and production, and we offer you resonable and competitive price.
(4) We stick to the principle of Customers are God, so we provide nice service .
Any question, please fell free to contact Beatrice Pan.
Have fun.
