Low thermal conductivity Electric Ceramic Fiber Heater 1200
- Shanghai Qingdao Guangzhou Nanjing Shenzhen etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Insulation ceramic fiber module 1400 C. temp classfication
-
Fireproof Ceramic Fiber Paper for Kilns 1430C.
-
China-double spiral type sintered silicon carbide rod heater
-
Factory sale - silicon carbide electric double spiral heating element
-
Double spiral type silicon carbide heating element
-
ISO 9001 certificated double spiral silicon carbide sic ceramic heating element
Product Details
| Place of Origin | Henan, China | Brand Name | JK | |
| Model Number | CFH-04 | Application | Refractory | |
| Grade | ST (Standard) | Dimensions | as your request | |
| Working Temperature | 1250C | Fiber Diameter | 2-5um | |
| Thermal Conductivity | 0.12w/(m.k) | Shrinkage (1800℉, 3h) | -3 |
Product Description
Low thermal conductivity Electric Ceramic Fiber Heater 1200
Cearmic Fiber Heater combines a heat source with superior high temperature insulation - an ideal solution for many
industrial heating applications. These heaters deliver fast, efficient and reliable uniform heat to temperatures of 1250°C. Designed to deliver power densities up to 1500 watts/ft2, we are one of the most versatile embedded element radiant heaters produced. OEM furnace and thermal process equipment manufacturers plus end users alike have embraced this combination heating and insulating system.

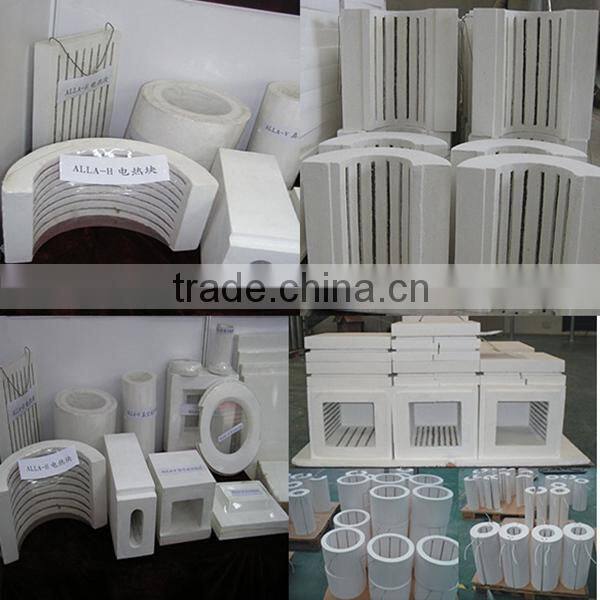

Flat Panel, Full Cylinder and Semi-Cylinder Fiber Insulated Heaters consist of high quality helically-wound Fe-Cr-Al alloy resistance wire elements embedded in a rigid body of vacuum formed high temperature refractory fiber. The lightweight ceramic fiber insulation has very low thermal mass and thermal conductivity and thus can handle extremely rapid cycling. Elements are typically mounted flush with the heated surface. The diameter of the helically wound element coil is kept to a minimum, reducing the difference between the element and chamber temperature, thus ensuring long heater life, and enabling the design and manufacture of extremely responsive heating systems.
All Fiber Insulated Heaters are 100% organic free and will not smoke or outgas when heated. Fiber Insulated Heaters are available in flat panel, full cylinder and semi-cylinder shapes - with several lead styles.
Cearmic Fiber Heater Characteristics:
Thermal Response Power (watts) plus Hot & Cold Face Temperatures (°C) vs. Time for a test furnace composed of a custom cylindrical heater (6in. ID x 10in. OD x 6in. L, 1200W, 120V) with 2in. thick Alumina Silica InsulationType AXL discs on each end. |
|
Electrical Change The electrical characteristics of these heaters change with temperature due to a shift in resistivity of the alloy used in the heating coil. At 1100C there is a ~3.8% increase in resistance and decrease in current and power. | |
Safe Operation Zone Fiber Insulated Heaters Type FIH are designed to operate at power densities up to 1500 watts/ft2 at 1100C. They may, however operate at significantly higher power densities at lower temperatures and still provide long life.
|
|
Ceramic Fiber Heater Availability
ITEM | DESCRIPTION | SHIP WT. (lb.) |
CX15120A | C, 1in. x 3in. x 6in., 200w, 60V | 5 |
CX15180A | C, 3in. x 6in. x 12in., 1200w, 120V | 8 |
CX15270A | C, 8in. x 12in. x 12in., 3100w, 240V | 12 |
Standard heaters are available for immediate shipment from stock. Standard tolerance as shown for Alumina-Silic
Flat Panel | Semi-Cylinder | Cylinder |
|
|
|
N & T = 2in. | M = 2in., T = 1in. | M = 2in. |
Fiber Insulated Heaters are also available on a custom basis. Typically manufactured to customer specification, we can design and construct units to satisfy a range of heating needs.

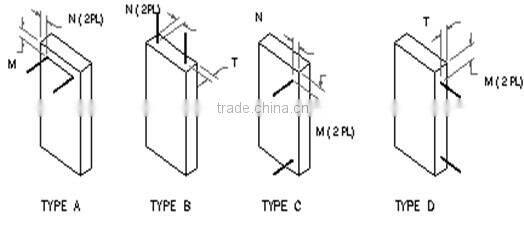

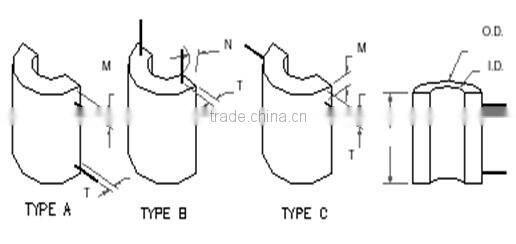

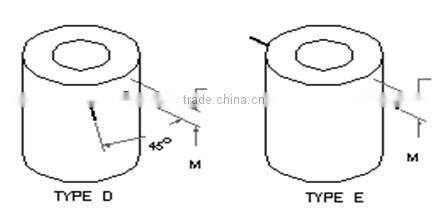

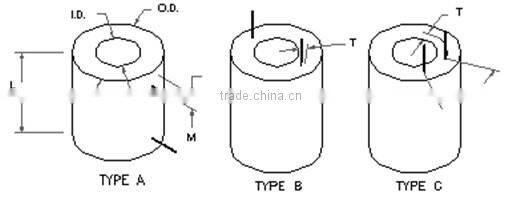

The following figures show a range of heater styles and lead locations
Flat panel heaters are typically produced up to 36in. wide x 48in. long x 6in. thick. Custom heaters and shapes smaller than a few cubic inches and larger than several cubic feet have been produced.
Cylindrical heaters typically produced have 1in. to 24in.ID, 1in. to 4in. wall thickness and are up to 12in. long. Custom cylindrical units and shapes smaller than a few cubic inches, larger than several cubic feet, weighing up to 100 pounds, with ID’s of 1/2in. to 36in., wall thickness of 1/2in.’ to 6in. and lengths to 48in. can be produced. Staved cylinder heaters typically produced have 24in. to 84in.ID, 1in. to 5in. wall thickness and segments up to 24in. long. Shapes smaller than a few cubic inches, larger than several cubic feet, with ID’s of 1in. and up, wall thickness of 1/2in. to 6in. and lengths to 48in. can be produced. |
Custom heaters and preparations are available on request. Our forming processes, large inventory of custom toolingand state of the art machining techniques allow a wide variety of sizes and shapes to be made. Special geometries such as disks, rings, custom bore (round corner square, hexagonal, oval, etc.) cylinders, staved cylinders, troughs, channel, angle, custom-machined shapes and others can be fabricated. Custom machining, compositional variations and the application of surface rigidizers and hardening agents are available.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing. Our Fiber Insulated Heater Questionnaire is an excellent tool to use to convey the requirements of a custom Heater.
Ceramic fiber heater Molybdenum Disilicide Heating elements
1750 Celsius Maximum Operating Temperature in Air
1600 Celsius Maximum Operating Temperature in Nitrogen, Argon or Helium
1450 Celsius Maximum Operating Temperature in Hydrogen Atmospheres
Excellent resistance to oxidation at temperatures above 1200 C.
Available in Cylindrical, Split Tube and Rectangular Configurations
Limited Complete Furnace Manufacturing (upon request)
Applications include semiconductor production, gem production, laboratory and research, annealing, sintering, heat treating, metal melting
Ceramic fiber heater with Silicon Carbide Heating elements
1500 Celsius Maximum Operating Temperature in Air
1600 Celsius Maximum Operating Temperature in Nitrogen, Argon or Helium
1450 Celsius Maximum Operating Temperature in Hydrogen Atmospheres
Excellent resistance to oxidation at temperatures above 1200 C.
Available in Cylindrical, Split Tube and Rectangular Configurations
Limited Complete Furnace Manufacturing (upon request)
Applications include semiconductor production, gem production, laboratory and research, annealing, sintering, heat treating, metal melting
Furnaces can be configured to operate at 208 or 240 line voltage in single or three phases
Fiber Insulated Heater Suggested Application
1. Heating source and primary thermal insulation in furnaces and industrial process equipment operating to 1200C
2. High temperature hot plate heating element.
3. Heating source for molten metal launders, troughs and distribution boxes.
To Order Cearmic Fiber Heater Standard FIH: order online or specify quantity, item # and description. Custom FIH: specify quantity and description (by supplying drawings, sketches, written descriptions, Fiber Insulate Heater Questionaire or material specifications). |
1. Packing: Standard export packing.
2. Shipping: Fast delivery, in general, it needs 3-15days after payment, and multiple transportation methods
for your choose, by sea/air/express are OK.
Warranty: 2 Years
Our products are warranted to be free from defects in materials or workmanship for two years from the date of
purchase. Within this period, Across International will, at its sole options, replace any components that fail in normaluse.
This warranty does not cover consumables and failures due toabuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
(1) JK Cooperation Limited Company, located in the center of Henan Province -Zhengzhou.
(2) We have been working in Export&Import for 8years, our partners are across South America, Asia, African, Europen etc.
(3) We provide top quaity high temperature product and production, and we offer you resonable and competitive price.
(4) We stick to the principle of Customers are God, so we provide nice service .
Any question, please fell free to contact Beatrice Pan.
Have fun.
