Product Details
| Place of Origin | Henan, China | Brand Name | JK | |
| Model Number | BN-C18 | Application | high temperature furnace | |
| Grade | HP (High Pure) | Dimensions | 300*300*200,300*300*250 | |
| Working Temperature | 1400C | Fiber Diameter | 3-6um | |
| Thermal Conductivity | 0.1-0.13W/M.K | Shrinkage (1800℉, 3h) | -4 |
Product Description

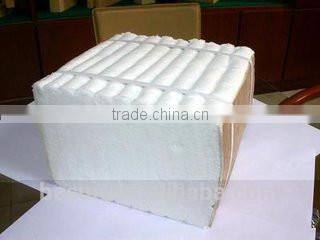

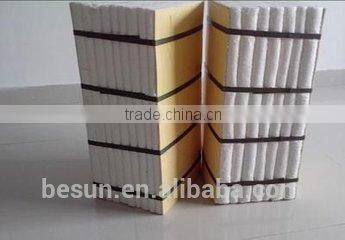

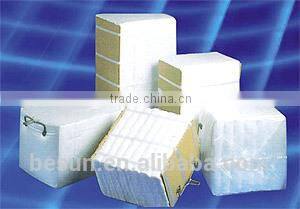

Insulation ceramic fiber module 1400c. temp classfication
1.Description of Insulation Cearmic Fiber
Themoduleis made of fold or precutother Blanket stack bonded and squashing to form a module with cut edges exposed.The Module contains no any binders. We use special equipments for producing BLOKS to confirm the precise dimensions of BLOKS. BLOK can be connected with structures of kiln and furnace by Anchor. It’s easy to install and speed constructing lining of furnace.
2.Features of Insulation Cearmic Fiber
Low bulk density
Low thermal conductivity
Resistance to heat-shock
Resistance to airspeed eroding
High mechanical strength
High safety within anchor
Easy installation
3.Application Insulation Cearmic Fiber

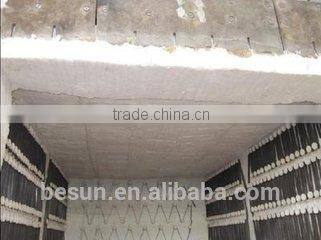

ron-steeling: heating furnace,Carbonizing Furnace, Ladle Petro-industry: Heater,Reformer ,Cracking Furnace Allother ind
ustrial kilns such as heat-treatment furnace,ceramic kiln and kiln car
4.Standard size Insulation Cearmic Fiber
300x300x150/200/250/300mm
Other special size can be produced according to customers' requirement.
Type | BN-1000 | BN-1260 | BN-1400 | BN-14200 | |
Classified temperature (.C) | 1000 | 1260 | 1400 | 1420 | |
Melting Temperature (.C) | 1760 | 1760 | 1760 | 17002 | |
Color | White | White | White | White | |
Average fiber diameter ( u m) | 3-4.5 | 3-4.5 | 2.8 | 2.8 | |
Fiber length (mm) | ~250 | ~250 | ~250 | ~250 | |
Bulk density (kg/m3) | 190-240 | 190-240 | 190-240 | 190-240 | |
Chemical composition (%) | Al2O3 | 44 | 46-47 | 52-55 | 35 |
SiO2 | 52 | 51-52 | 44-47 | 49.7 | |
Zro2 | / | / | / | 15 | |

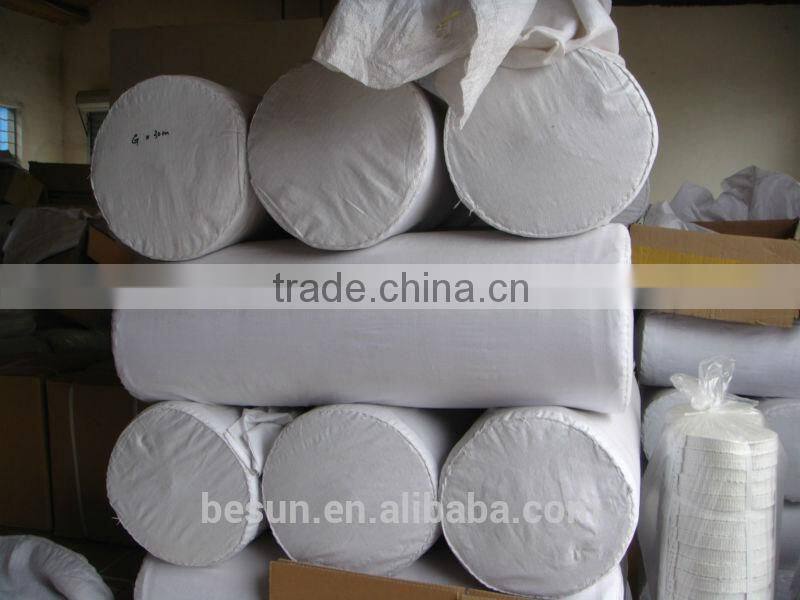

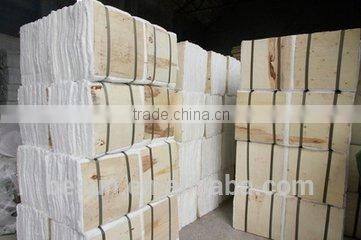

(1)Packing: We have the standard packing to ensure the security of product,we have standard woven bag packing .
(2)Shipping:We provide fast delivery ,in general ,we arrange shipping within 20days after payment, and we adopt
multiple ransportation methods,by sea,air,express are ok.
