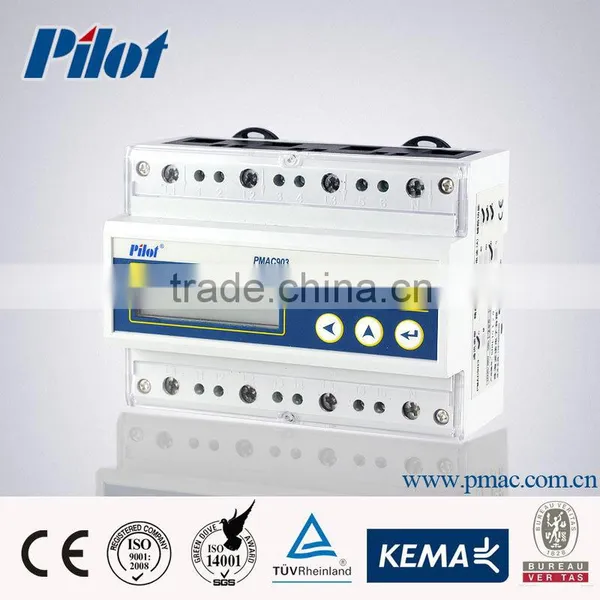

PMAC903 three phase kWh meter, energy meter

FOB Price

Negotiable / Unit

8 Units(Min. Order)

Port Zhuhai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC903	Display Type	Digital Only
Phase	Three Phase	Measuring Energy Range	999999.9 kwh
Accuracy Class	0.5%	Output Voltage	220/380V
Operating Temperature	-20℃~ +55 ℃	Dimensions	125x88x73mm

Product Description

Specifications

1.3 phase kWh energy meter,LCD display
2. U,I,Hz,power,power factor value from RS485
3. Multif-tariff, Reactive energy,Demand

3 phase kWh types of energy meter

high temperature resistant materials

zero complaints, zero return

3 phase kWh types of energy meter

Features:

1. Suit for 220V AC low voltage system

2. 6 +1 digits LCD display (999999.9 kWh)

3. kWh accuracy class 0.5S

4. LED indicates pulse, reverse energy

5. 3 keys for programming

6. CT programmable, pulse output

7. 35mm DIN rail installing, standard DIN ED5002

8. High temperature resistant materials

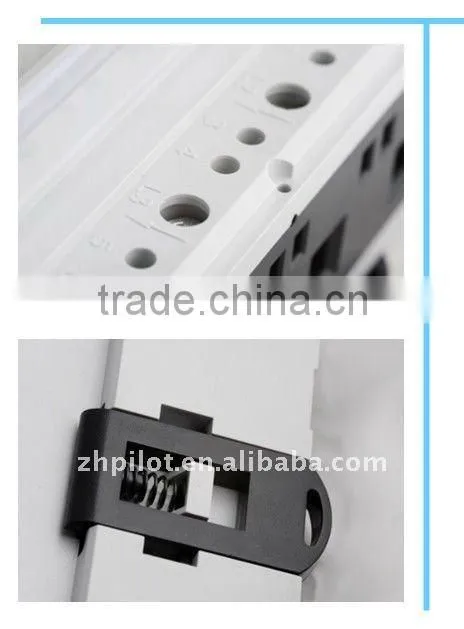

9. Spring type buckle, easy to install

3 phase kWh types of energy meter

Basic Function

1. Measure and display kWh value

2. One RS485 communication

3. Support Modbus-RTU

4. Other real time data via RS485: V, I, P, Q, S, PF, F

3 phase kWh types of energy meter

Optional Function

1. Multi-tariff

2. Reactive energy measuring

3. Demand analysis

Parameter	Accuracy
Voltage	0.2%
Current	0.2%
Active power	0.5%
Reactive power	1.0%
Apparent power	0.5%
Power factor	0.5%
Frequency	0.01
Active energy	0.5%
Reactive energy	2.0%
