3 Phase Din Rail KWh Meter, Energy Meter, Electronic Meter
Negotiable
/ Unit
8 Units(Min. Order)
- Zhuhai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | PILOT | |
| Model Number | PMAC903 | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 999999.9 kwh | |
| Accuracy Class | 0.5% | Output Voltage | 220/380V | |
| Operating Temperature | -20℃~ +55 ℃ | Dimensions | 125x88x73mm |
Product Description
Specifications
1.3 phase smart energy meter,LCD display2. U,I,Hz,P,PF value from RS485/Modbus/CMBUS
3. Multif-tariff, Reactive energy,Demand
PMAC903 Electronic Energy Meter
high temperature resistant materials
zero complaints, zero return
PMAC903 Electronic Energy Meter Features:
1. Suit for 220V AC low voltage system
2. 6 +1 digits LCD display (999999.9 kWh)
3. kWh accuracy class 0.5S
4. LED indicates pulse, reverse energy
5. 3 keys for programming
6. CT programmable, pulse output
7. 35mm DIN rail installing, standard DIN ED5002
8. High temperature resistant materials

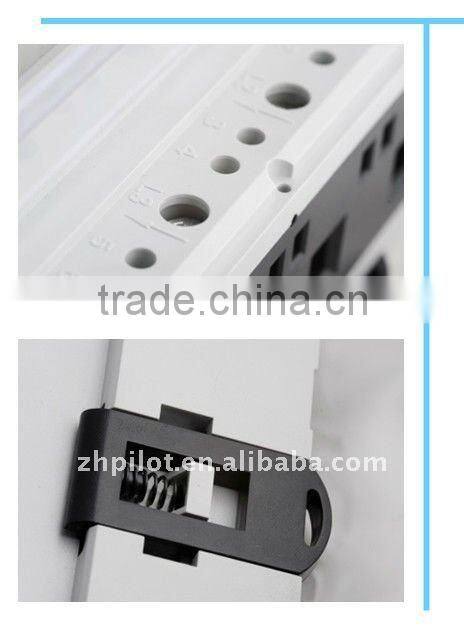

9. Spring type buckle, easy to install
PMAC903 Electronic Energy Meter Basic Function
1. Measure and display kWh value
2. One RS485 communication
3. Support Modbus-RTU
4. Other real time data via RS485: V, I, P, Q, S, PF, F
PMAC903 Electronic Energy Meter Optional Function
1. Multi-tariff
2. Reactive energy measuring
3. Demand analysis
| Parameter | Accuracy |
| Voltage | 0.2% |
| Current | 0.2% |
| Active power | 0.5% |
| Reactive power | 1.0% |
| Apparent power | 0.5% |
| Power factor | 0.5% |
| Frequency | 0.01 |
| Active energy | 0.5% |
| Reactive energy | 2.0% |
