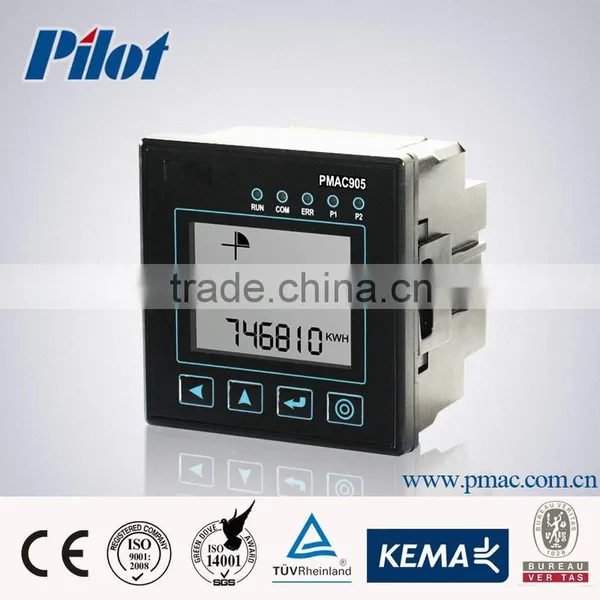

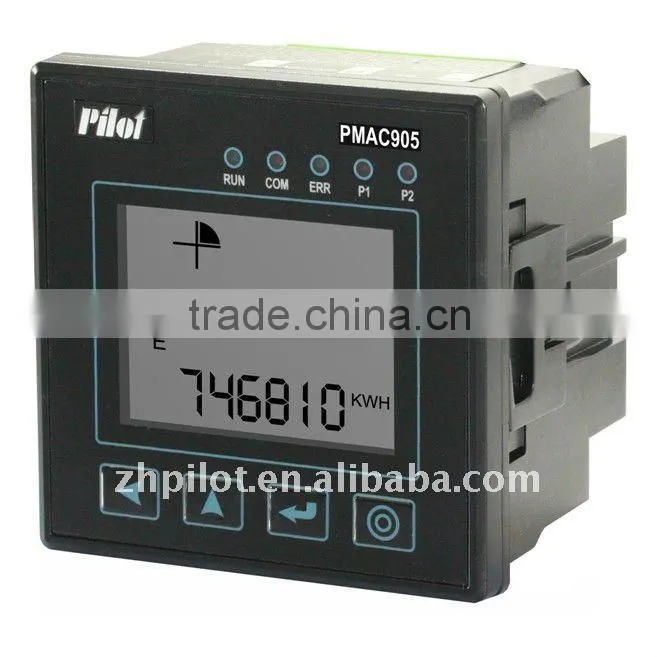

PMAC905 Three Phase Digital Multifunction Panel Meter

FOB Price

Negotiable / Unit

3 Units(Min. Order)

Port Zhuhai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC905	Display Type	Digital Only
Phase	Three Phase	Measuring Energy Range	99999999.9 kwh
Accuracy Class	0.5%	Output Voltage	220/380V
Operating Temperature	-20~+60	Dimensions	96x96mm

Product Description

Specifications

1. LCD screen smart meter measure kWh value, voltage, current, power, power factor,
2. Multi-tariff energy
3. RS485/Modbus

Alibaba recommended produc

Perfect, stability, Reliability

Features:

1. Suit for LV/ HV voltage system

2. CT and PT programmable

3. kWh accuracy class 0.5S

4. Panel size: 96 x 96mm

5. Pluggable terminals, easy to install

6. Large high-contrast LCD

7. User-friendly and easy handing

8. Two pulse output

9. Password protect

Basic Function:

Measures and display real-time parameters:

1. Voltage—Ua, Ub, Uc, Uab, Ubc, Uca,

2. Current—Ia, Ib, Ic, In

3. Active power – Pa, Pb, Pc, ∑P

4. Reactive power –Qa, Qb, Qc, ∑Q

5. Apparent power –Sa, Sb, Sc, ∑Q

6. Power factor—PFa, PFb, PFc, ∑PF

7. Frequency

8. Active energy—4 quadrant kWh

9. Reactive energy– 4 quadrant kvarh

Optional Function:

1. Statistics of multi-tariff energy: 8 periods of time, 4 different tariff

2. Record historical energy value: (kWh & kvarh) data of the past 31 days/ 12 months

3. One RS485 communication port: support Modbus-RTU protocol

Parameter	Accuracy
Voltage	0.2%
Current	0.2%
Power	0.5%
Power factor	0.5%
Frequency	0.01
Active energy	0.5%
Reactive energy	2.0%
