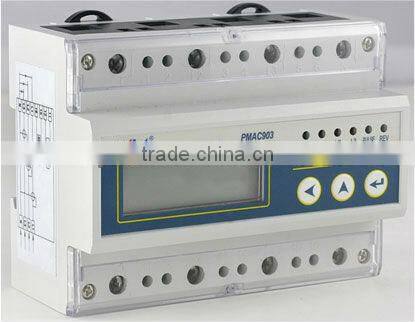

PMAC903 Three Phase Ethernet Kwh Meter

Specifications

1. digital energy monitor,LCD display
2. Voltage, current, Hz. power, power factor value from RS485
3. Multif-tariff, demand

  PMAC903 Three Phase Ethernet kwh Meter

high temperature resistant materials

zero complaints, zero return



Features:

1. Suit for 220V AC low voltage system

2. 6 +1 digits LCD display (999999.9 kWh)

3. kWh accuracy class 0.5S

4. LED indicates pulse, reverse energy

5. 3 keys for programming

6. CT programmable, pulse output

7. 35mm DIN rail installing, standard DIN ED5002

8. High temperature resistant materials

9. Spring type buckle, easy to install



Basic Function

1. Measure and display kWh value

2. One RS485 communication

3. Support Modbus-RTU

4. Other real time data via RS485: V, I, P, Q, S, PF, F



Optional Function

1. Multi-tariff

2. Reactive energy measuring

3. Demand analysis



Parameter	Accuracy
Voltage	0.2%
Current	0.2%
Active power	0.5%
Reactive power	1.0%
Apparent power	0.5%
Power factor	0.5%
Frequency	0.01
Active energy	0.5%
Reactive energy	2.0%
