Zhuhai Pilot Technology Co., Ltd.: Zhuhai, Guangdong, China; Main products: Power Meter, Energy Meter, Branch circuit power meter, 380V AC solar water pump controller, Battery Monitoring system for Data Center

Home > Products > New Products > One Phase KWh Meter PMAC901

One Phase KWh Meter PMAC901

FOB Price

Negotiable / Unit

5 Units(Min. Order)

Port zhuhai port
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Pilot
Model Number	PMAC901	Display Type	Digital Only
Phase	Single Phase	Measuring Energy Range	0-999999.9 KWH
Accuracy Class	class 0.5s	Output Voltage	220/380V
Operating Temperature	-20~+55 centi-degree

Product Description

Specifications

Alibaba recommended this multi energy meter
Good Quality, best price
LCD display,LED pulse output,
class 0.5s accuracy

Alibaba recommended Multi Panel Meter

New product, good quality , best price, quick delivery

High temperature resistant materials

Perfectly Match Your Billing System

Feature

LCD display kWh data

Read data from RS485 communication: current, voltage, active power, frequency, kWh.

35mm DIN rail instaling, standard DIN ED5002

Active energy accuracy up to class 1

6+1 digits LCD display (999999.9 kWh)

Passive pulse output, standard DIN43864

LED indicating pulse output and opposing energy

One RS485 port, support MODBUS protocol

Basic Function
Measure and display kWh value
One RS485 communication
Support Modbus-RTU
Other real time data via RS485: V, I, P, S

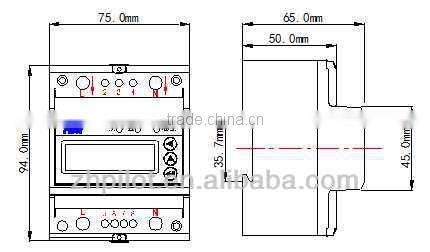

Dimension

Note: PMAC901default rated voltage 220V, frequency 50Hz. Other customized input such as120V or 60Hz is available, please mention the requirement before place order.

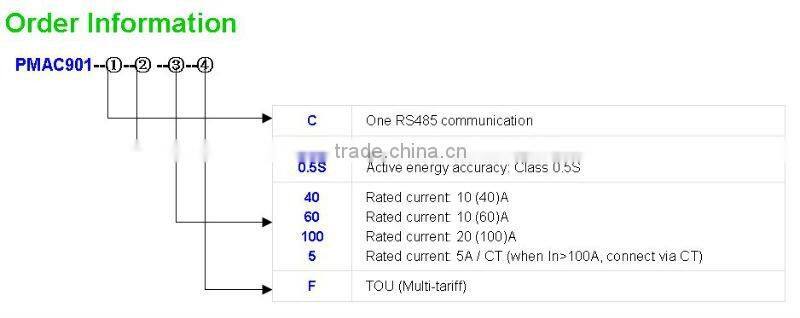

Example 1: Model No. PMAC901-C-1-40-F, which indicates the device provides basic function, rated current is 40A (direct), accuracy class 1, and measure multi-tariff
