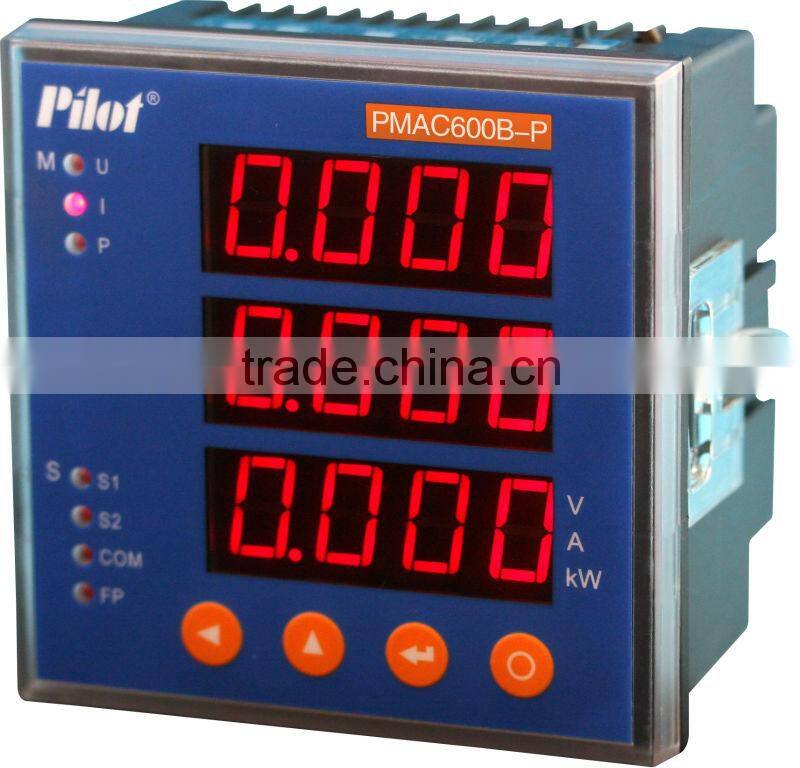

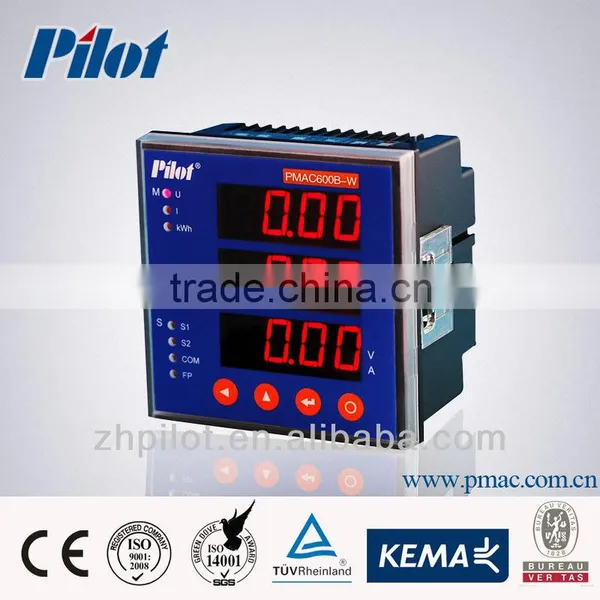

Programmable 3 Phase Voltmeter / Ammeter PMAC600B

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Zhuhai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Pilot
Model Number	PMAC600B	Measuring Current Range	0~49,999A, 0~5A
Measuring Voltage Range	0~500V, 0~500A	Accuracy Class	0.5%F.S
Operating Temperature	-20~+60 Degree	Dimensions	96mm x 96mm

Product Description

Specifications

3-phase Universal Digital Panel Meter ,LED display volt, current, power,
frequency, power factor, kWh, DI/ DO
RS485, Modbus

Programmable 3 Phase Voltmeter / Ammeter PMAC600B with following features:

ØSuit for 220V, or 240V (ph-N) low voltage system

ØSimultaneous sampling of Volts and Amps

ØCompact design with all real-time measurement

Ø10 years back-up of integrated energy data

ØLED display, high brightness, auto-scrolling

ØCT primary is programmable

ØPluggable terminals, easy to install

ØPanel size: 96 x 96mm

ØPassword protect

ØStandard: IEC62053-21, CE

Basic Function

PMAC600 measures and display one or more parameters listed below:

ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca,

ØCurrent—Ia, Ib, Ic, In

ØActive power – Pa, Pb, Pc, ∑P

ØReactive power –Qa, Qb, Qc, ∑Q

ØPower factor—PFa, PFb, PFc, ∑PF

ØFrequency--F

ØActive energy—kWh

ØReactive energy-- kvarh

Optional Function

ØTwo status input ( wet contact)

ØTwo relay alarm output

ØOne RS485 communication

Parameter	Index
Accuracy Rate	0.5
Suitable Network	PMAC600B: 3-phase 4-wire
Displayed Data	Current	4 digits, display real value,Unit: Amp.
	Voltage	4 digits, display real value, phase voltage, Unit:V
	Active Power	4 digits, display real value,Unit: KW
	Reactive Power	4 digits, display real value,Unit: KVAR
	Power Factor	3 digits, display real value.
	Frequency	4 digits, display real value, Unit: Hz.
	Active Energy	Maximum 9 digits, display real value in 3 lines, Unit: Kwh
	Reactive Energy	Maximum 9 digits, display real value in 3 lines, Unit: Kvarh
Input	Rated Current	1A or 5A (secondary)
	Rated Voltage	380VAC
	Frequency	35Hz ~ 65Hz
	Status Input	220Vac±25%,220Vdc±25%
Relay Output	220VAC/5A,30VDC/5A
Analog Output	4~20mA,Maximum 400Ω
Power Supply	Wide	AC: 85V ~ 265V;DC: 80V ~ 300V
Insulation Strength	2KV(testing voltage is AC valid value)
Insulation Resistance	≥ 50MΩ
MTBF	≥ 50000h
Operating Environment	Operating Temperature:-20°C~+60°C Storage Temperature:-40°C~+85°C Humidity:5%~95%,non-condensing
Cut-out Dimension	89.5mm x 89.5mm (+0.5mm)
