Specifications
1. LED display Panel Meter2. Voltage, current, active power, reactive power, power factor, frequency, kWh, kvarh
3. DI/DO
PMAC600E LED display Panel Meter
Application
Control panels
Switchboard
Energy management systemPower quality analysis
Feature:
LED screen with optional function
Sampling AC data in single or three phase system
Optional single parameter measure or integrated measure
Measure voltage, power, frequency,power factor, energy
External CT programmable
RS485 communication/ MODBUS protocol
Password protect
Specifications
PMAC600B/BH digital Panel meter supports single measurement or multiple measurements, LED display with 3 lines and 4 lists, four keys are used to set up parameters, optional 4-20mA output or RS485 port, wide range of standard and optional measurements, digital power transducer for PLC, DCS, EMS, and SCADA applicationsThis is suit for 220V/380V LV system.
This product provides voltage, current, active power, reactive power, power factor, frequency, active energy, reactive energy parameters and has strong extendedauxiliary functions such as two status inputs, two relay alarm outputs (or two 4-20mA analog outputs), via RS485/MODBUS communication to manage meters.
Users can realize automatic control through programming the relay output or analog outputeasily, easy installation and small size.

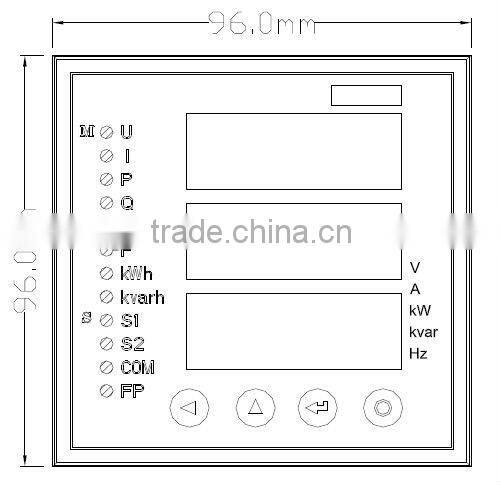

Installation size: 89.5mm x 89.5mm.

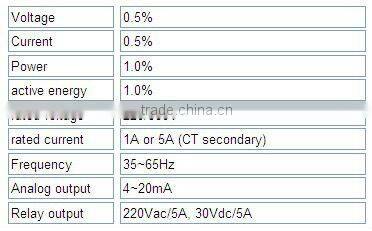

Technical information:

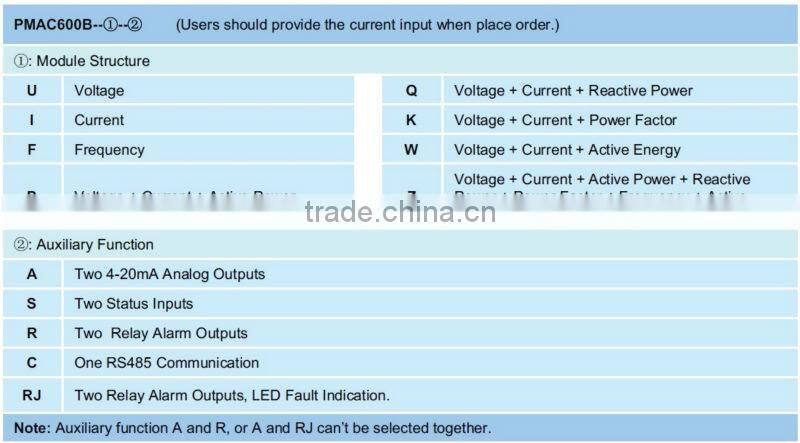

Order information:
To know more about the product, please kindly contact us. Thanks in advance.
