PMAC600B/BH Rs485 Communcation Power Quality Meter

FOB Price

Negotiable / Unit

8 Units(Min. Order)

Port Zhuhai
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC600B/BH	Measuring Current Range	0-5A
Measuring Voltage Range	0-500V	Accuracy Class	0.5%
Operating Temperature	-20℃ ~+60℃	Dimensions	969655mm

Product Description

Specifications

digital power meter
1. Suit for 220/380V,up to 35KV system
2. two Analog outputs
3. Digital LED

PMAC600B digital power meter

PMAC600B/BH three-phase digital panel meter is designed to monitor and display the electrical parameters in single and three-phase systems.

Application
Control panels
Switchboard
Energy management systemPower quality analysis

Feature:

Suit for up to 35KV high voltage system

LED screen with optional function
Sampling AC data in single or three phase system
Optional single parameter measure or integrated measure

Measure voltage, power, frequency,power factor, energy

External CT programmable and PT programmable

RS485 communication/ MODBUS protocol
Password protect

Specifications

PMAC600B/BH digital Panel meter supports single measurement or multiple measurements, LED display with 3 lines and 4 lists, four keys are used to set up parameters, optional 4-20mA output or RS485 port, wide range of standard and optional measurements, digital power transducer for PLC, DCS, EMS, and SCADA applicationsThis is suit for 220V/380V LV system.

This product provides voltage, current, active power, reactive power, power factor, frequency, active energy, reactive energy parameters and has strong extendedauxiliary functions such as two status inputs, two relay alarm outputs (or two 4-20mA analog outputs), via RS485/MODBUS communication to manage meters.

Users can realize automatic control through programming the relay output or analog outputeasily, easy installation and small size.

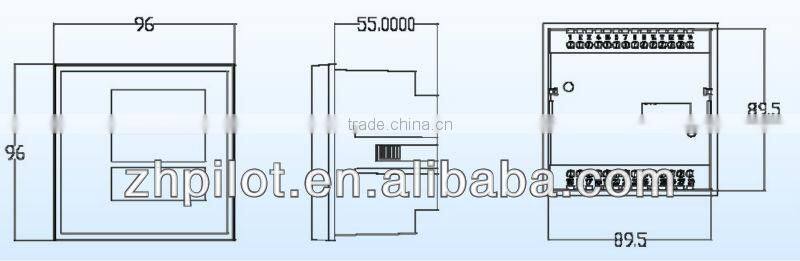

Installation size: 89.5mm x 89.5mm.

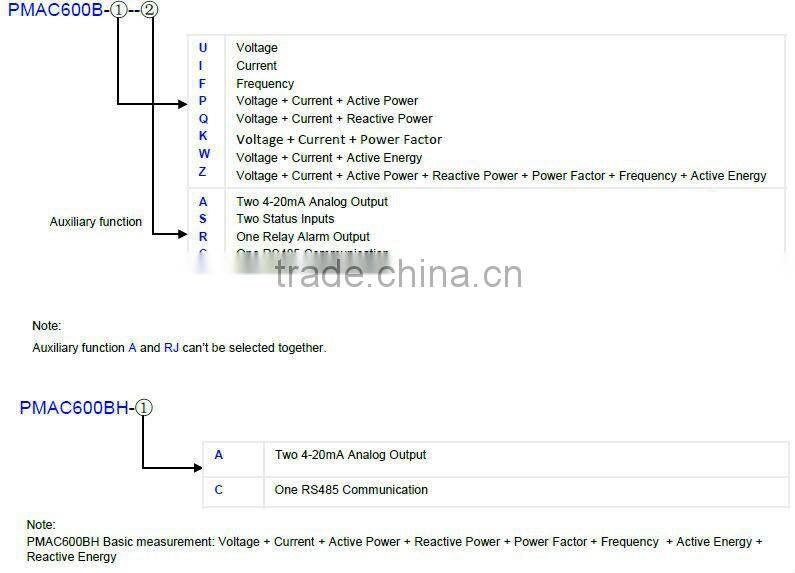

Order information:

PMAC600B/BH

Function:

Voltage/Current/Active Power/Reactive Power/Power Factor/Frequency/Active Energy/Reactive Energy
