Specifications
three phase led optical panel meter1. Suit for 220/380V,up to 35KV system
2. two Analog outputs
3. Digital LED

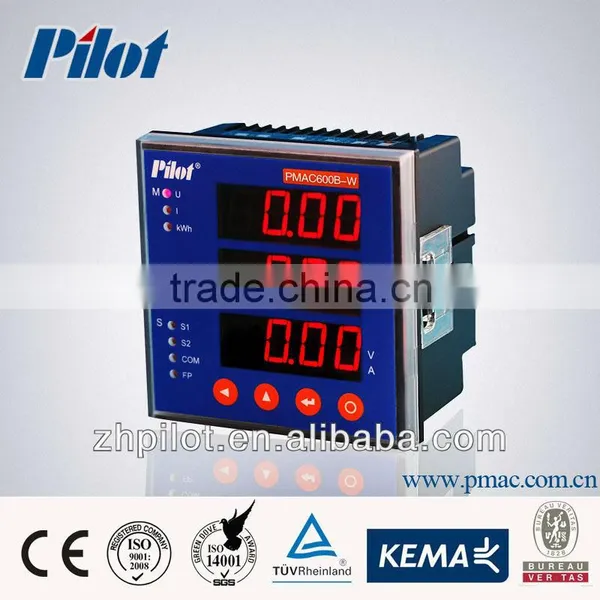

PMAC600B/BH three phase led optical panel meter
PMAC600B/BH three-phase digital panel meter is designed to monitor and display the electrical parameters in single and three-phase systems.
Application
Control panels
Switchboard
Energy management systemPower quality analysis
Feature:
Suit for up to 35KV high voltage system
LED screen with optional function
Sampling AC data in single or three phase system
Optional single parameter measure or integrated measure
Measure voltage, power, frequency,power factor, energy
External CT programmable and PT programmable
RS485 communication/ MODBUS protocol
Password protect
Specifications
PMAC600B/BH digital Panel meter supports single measurement or multiple measurements, LED display with 3 lines and 4 lists, four keys are used to set up parameters, optional 4-20mA output or RS485 port, wide range of standard and optional measurements, digital power transducer for PLC, DCS, EMS, and SCADA applicationsThis is suit for 220V/380V LV system.
This product provides voltage, current, active power, reactive power, power factor, frequency, active energy, reactive energy parameters and has strong extendedauxiliary functions such as two status inputs, two relay alarm outputs (or two 4-20mA analog outputs), via RS485/MODBUS communication to manage meters.
Users can realize automatic control through programming the relay output or analog outputeasily, easy installation and small size.

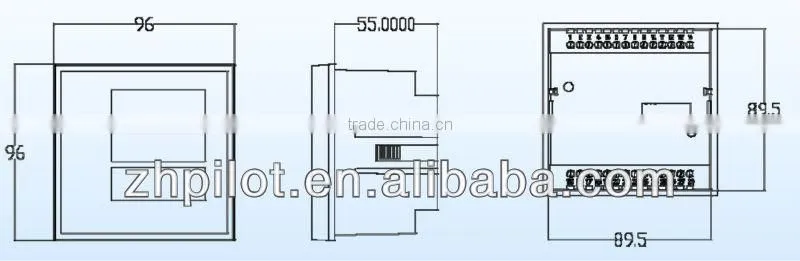

Installation size: 89.5mm x 89.5mm.

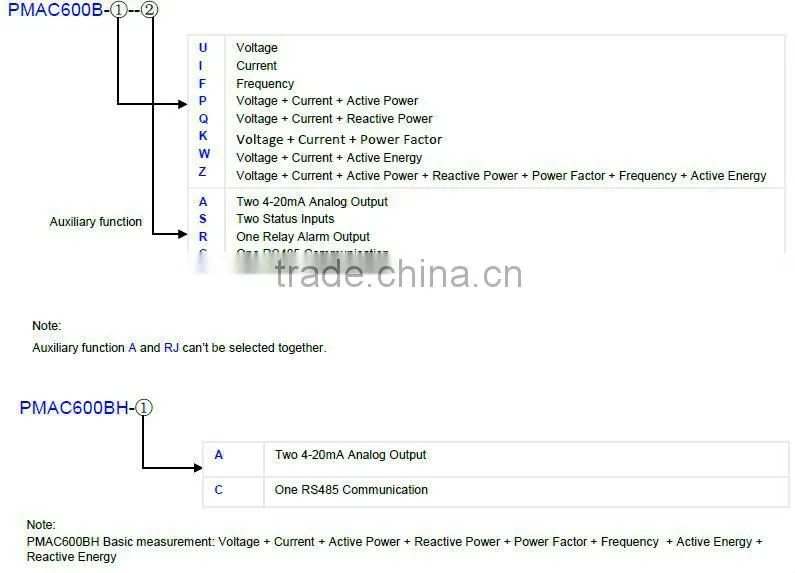

Order information:
PMAC600B/BH
Send Inquiry to This Supplier
