PMAC625 Digital Active Panel Meter

FOB Price

Negotiable / Unit

2 Units(Min. Order)

Port Zhuhai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Pilot
Model Number	PMAC625	Measuring Current Range	0-5A
Measuring Voltage Range	0-500V	Accuracy Class	0.5%
Operating Temperature	-20~70degree	Dimensions	96 x 96mm

Product Description

PMAC625 panel meter is widely used in numerous industrial power supply places, energy sources management, automatic and intellectualized network etc.

PMAC625 series are suit for 220/380 LV system.

Product provides voltage, current, active power, reactive power, power factor, frequency, active energy, and reactive energy etc. parameters and has strong extended auxiliary function such as two status input of monitor switch state, two relay alarm output (or two 4-20mA analog output) of control switch action and administration of networks via RS485/MODBUS communication. Users can realize automatic control through program the relay output easily.

Basic Function Optional Function

PMAC625 measures and display one or more parameters listed below: ØTwo status input ( wet contact)

ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca ØTwo relay alarm output

ØCurrent—Ia, Ib, Ic, In ØOne RS485 communication

ØActive power – Pa, Pb, Pc, ∑P

ØReactive power –Qa, Qb, Qc, ∑Q

ØPower factor—PFa, PFb, PFc, ∑PF

ØFrequency--F

ØActive energy—kWh

ØReactive energy-- kvarh

Technical Specification

Parameter	Accuracy	Resolution	Measuring Range
Voltage	0.2%	0.01V	264V(ph-N), 500V (ph-ph)
Current	0.2%	0.001	CT primary: 0~9,999A CT secondary: 1 A or 5A
Power	0.5%	0.1W/ var	9,999 kW/ kvar
Power factor	0.5%	0.001	-1.000~+1.000
Frequency	0.01	0.01Hz	35-65Hz
Active energy	1.0%	0.1kWh	0-99,999,999.9 kWh
Reactive energy	2.0%	0.1kvarh	0-99,999,999.9 kvarh

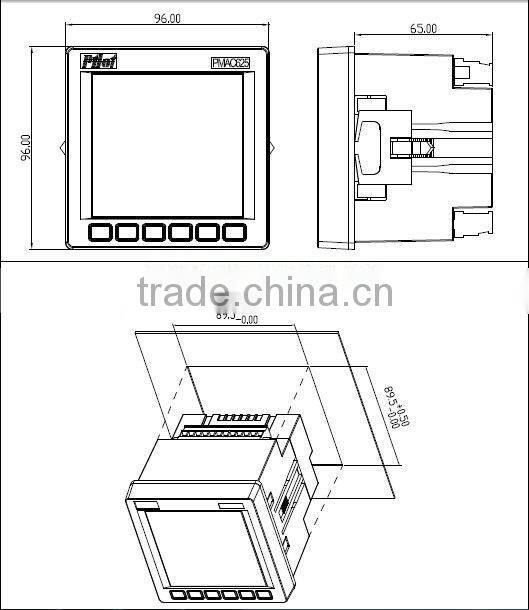

Dimension
