PMAC770-DR Din rail Modbus Power Meter is a branch of PMAC770. It is a cost-effective three phase multifunction power meter and provide same basic function as PMAC770. It’s widely used in low voltage and medium voltage distribution/ automation system.

Basic function

1. Real Tim metering:

    U, I, P, Q, S, PF, F, kWh, kvarh, Demand & Max. demand, Max./ Min. (U, I, P, Q), multi-tariff enrgy

2. Power quality analysis:

    Unbalance, Harmonic (31st), Harmonic RMS(0~31st), Harmonic energy (1st ~ 13th), Voltage crest factor, current K factor, Load rate, Voltage deviation, Frequency deviation, Over/under limit alarm

3. Setpoint alarm

   3 status input + 2 relay output

4. three DI + two Do

    3 status input + 2 relay output

5. RS485

    MODBUS-RTU protocol

6. Record function

    SOE (event log), Real-time clock (yyyy-mm-dd  hh:mm:ss)

    Voltage/ frequency deviation, Voltage unbalance record

Outlook

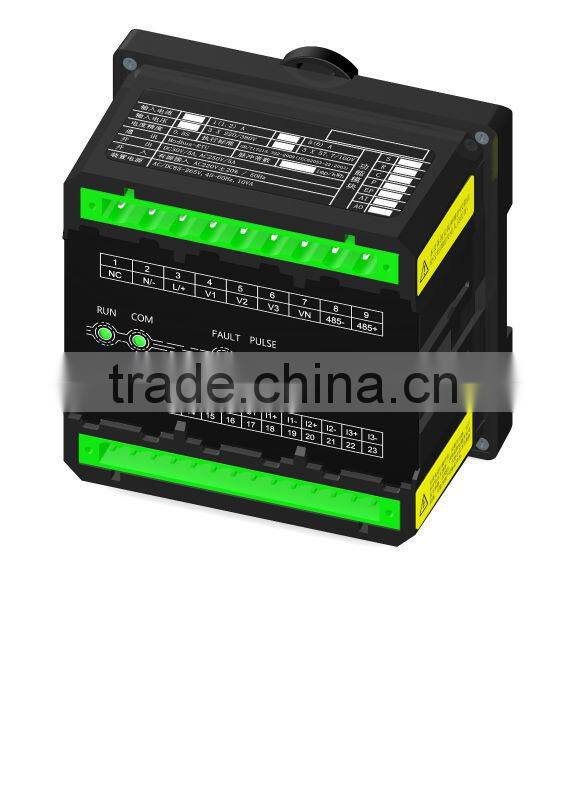

 Front view

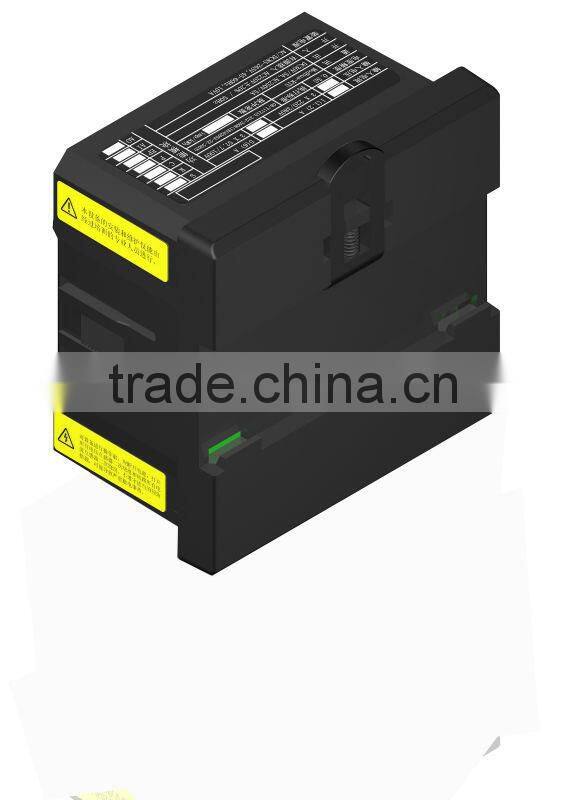

Back view

Order Information:

PMAC770-DR rated input voltage and current

 PMAC770-DR frequency

    F1       50Hz

    F2       60Hz

 PMAC770-DR power supply

   P1           85~265VAC, 85~265VDC

   P2           100~420VAC, 100~400VDC
