PILOT PMAC903 100A Energy Meter Pulse Output
- Zhuhai
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | PILOT | |
| Model Number | PMACC903 Din Rail kWh meter | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 999999.9 kwh | |
| Accuracy Class | 0.5s | Output Voltage | 220/380V | |
| Operating Temperature | -20℃~ +55 ℃ | Dimensions | 125x88x73mm |
Product Description
PMAC903 100A energy meter pulse output
Please contact us for 100A direct connect

Specifications
3-phase LCD electronic energy meter, kWh meter, digital metering voltage, current, Hz. power, power factor, kWh, RS485, Modbus
The 3-phase LCD electronic energy meter, kWh meter, digital metering voltage, current, Hz. power, power factor, kWh, RS485, Modbus
Features:
- Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
- 6 +1 digits LCD display (999999.9 kWh)
- Record historical energy for last 31 days , last 12 months and last 10 years
- kWh accuracy class 0.5S or class 1.0
- LED indicates pulse, reverse energy, phase loss
- 3 keys for programming
- 2 pulse outputs (for kWh or for kvarh, settable)
- 35mm DIN rail installing, standard DIN ED5002
- Support online updating
- High temperature resistant materials
- Standard: IEC62053-21/ 22/23, CE, KEMA
Basic Function
- Measure and display V, I, P, PF, F, kWh, kvarh value (also can read via RS485)
- One RS485 port , Support Modbus-RTU protocol
- Historical energy record for last 31 days, last 12 months and last 10 years
- Reactive energy measuring
- Other real-time data via RS485: Q, S
Optional Function
- Multi-tariff (can be displayed on LCD If selected)

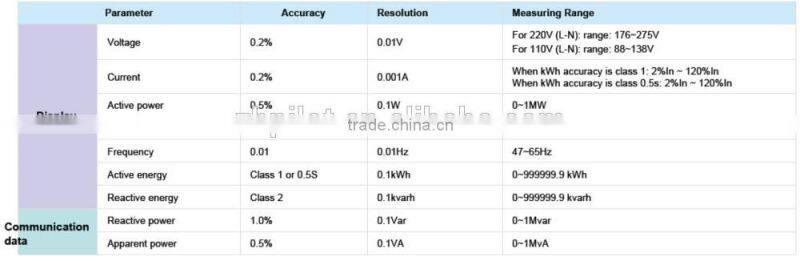

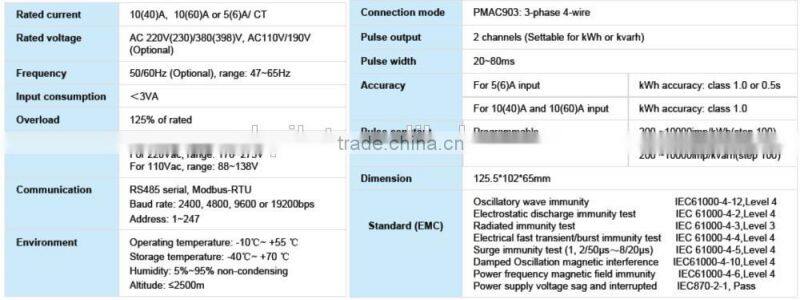

Technical specific

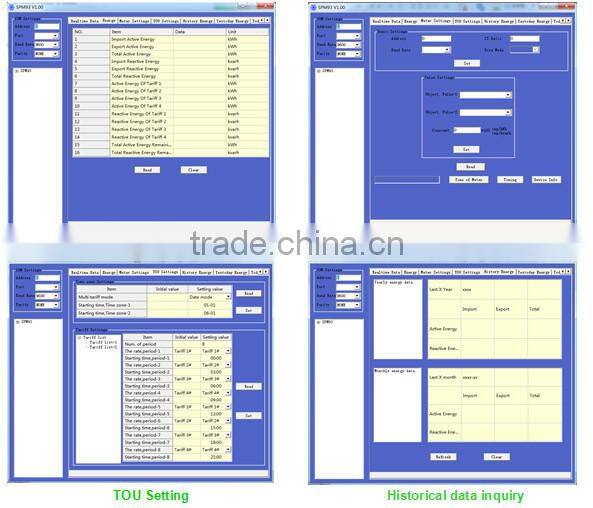

Free testing software

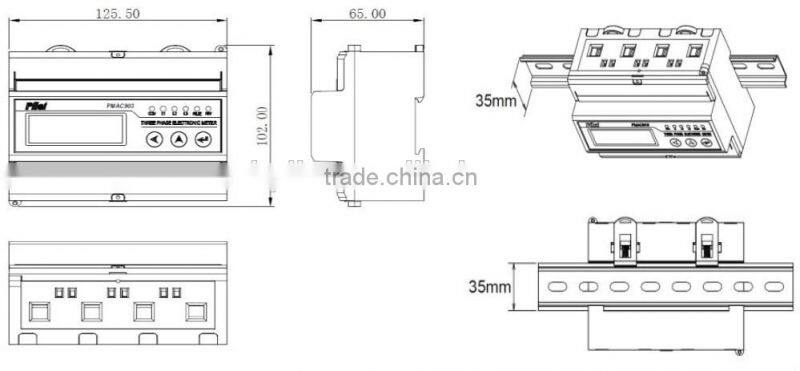

Dimension

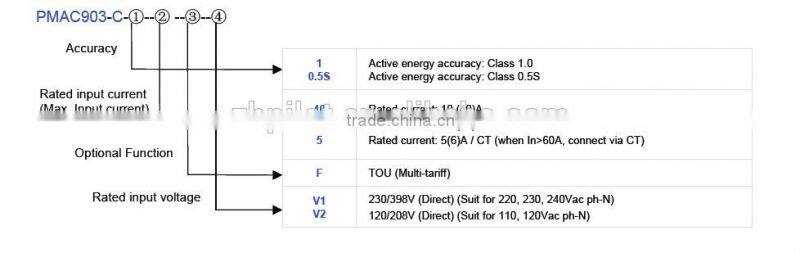

Order Information
Note:
1. PMAC903 Din Rail kWh meter default rated voltage 220V, frequency 50Hz.
2. Frequency is 50Hz or 60Hz (optional)
3. For rated current input 5(6)A, customers can select accuracy class 1 or 0.5s; But for rated current input 10(40)A and 10(60)A ,customers can only select accuracy class 1.
Example 1: Model No. PMAC903-C-1-40-F-V1 Din Rail kWh meter , which indicates the device provides basic function, accuracy class 1, rated current is 10(40)A, provides optional TOU (Multi-tariff) function and rated voltage input is 220/380V
For 100A direct connection, please contact us for more detail .
SPM93 smaller DIN Rail Energy Meter (Cheaper solution)
http://zhpilot.en.china.cn/product/60124192599-800909826/SPM93_Modbus_Data_Record_Three_phase_energy_meter.html
SPM91 smaller DIN Rail Single phase energy meter (Cheaper solution)
http://zhpilot.en.china.cn/product/60126199720-50323645/SPM91_modbus_single_phase_smart_energy_meter.html
PMAC201HW 12 Channel Energy Meter
http://zhpilot.en.china.cn/product/1642431847-215314014/PMAC201HW_Modbus_12_channel_energy_meter.html
PMAC3624 Energy Monitor Web server
http://zhpilot.en.china.cn/product/60055078889-800376595/PMAC3624_Mini_SCADA_for_128pcs_meter.html
