PMAC625 Voltage Current Power Meter

Name: PMAC625 Voltage Current Power Meter
Brand: PILOT
Availability: InStock

FOB Price

US$ 1 - 80 / Unit

1 Unit(Min. Order)

Port Zhuhai Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC625	Measuring Current Range	0-5A (Via CT )
Measuring Voltage Range	0-500V	Accuracy Class	0.5
Operating Temperature	-20~70degree	Dimensions	969683

Product Description

PMAC625 voltage current power meter

Feature:

Suit for 220V, or 240V (ph-N) low voltage system

Simultaneous sampling of Volts and Amps

Compact design with all real-time measurement

10 years back-up of integrated energy data

LED display, high brightness, auto-scrolling

CT primary is programmable

Pluggable terminals, easy to install

Panel size: 96 x 96mm

Password protect

Standard: IEC62053-21, CE

Basic Function

PMAC625 measures and display one or more parameters listed below:

ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca

ØCurrent—Ia, Ib, Ic, In

ØActive power – Pa, Pb, Pc, ∑P

ØReactive power –Qa, Qb, Qc, ∑Q

ØPower factor—PFa, PFb, PFc, ∑PF

ØFrequency--F

ØActive energy—kWh

ØReactive energy-- kvarh

Optional Function

ØTwo status input ( wet contact)

ØTwo relay alarm output

ØOne RS485 communication

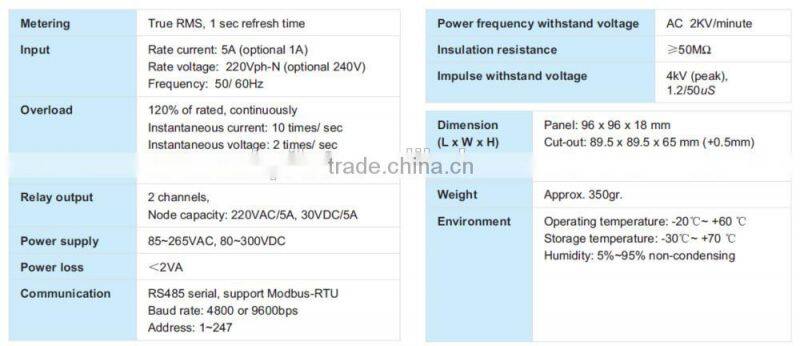

Technical Specification

Parameter	Accuracy	Resolution	Measuring Range
Voltage	0.2%	0.01V	264V(ph-N), 500V (ph-ph)
Current	0.2%	0.001	CT primary: 0~9,999A CT secondary: 1 A or 5A
Power	0.5%	0.1W/ var	9,999 kW/ kvar
Power factor	0.5%	0.001	-1.000~+1.000
Frequency	0.01	0.01Hz	35-65Hz
Active energy	1.0%	0.1kWh	0-99,999,999.9 kWh
Reactive energy	2.0%	0.1kvarh	0-99,999,999.9 kvarh

Testing software

Testing software

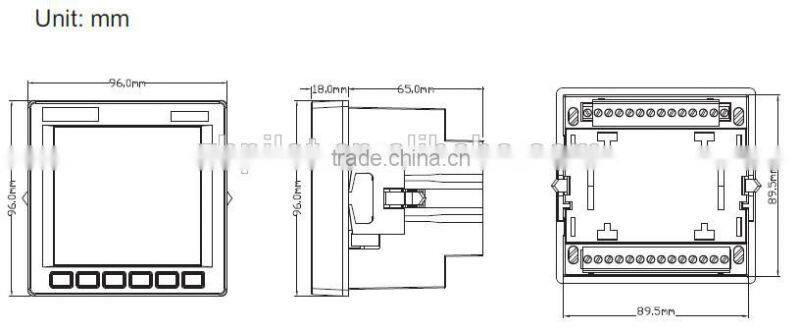

Dimension

Dimension
