PMAC720 LCD Electric Power Meter

PMAC720 LCD Electric Power Meter photo-1
US$ 120 - 150 MOQ: 8 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC720
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name PILOT
Model Number PMAC720
Measuring Current Range 0~49,999A
Measuring Voltage Range 0~99,999,999.9V
Accuracy Class 0.5%
Operating Temperature -20~+60
Dimensions 96*96*71

PMAC720  Three Phase LCD electric power meter

Application



Application



Control panels

Power quality analysis

Energy management system

Building management system





Feature





Feature:



Suit for LV/ HV voltage system
Compact design with all real-time measurement

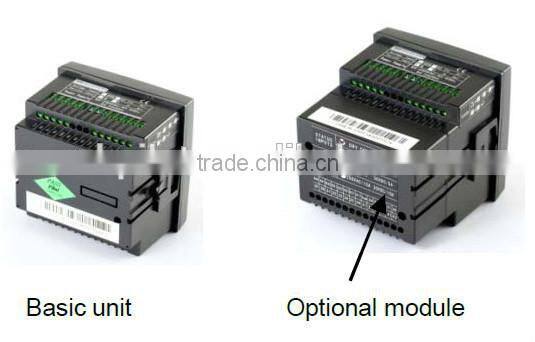

Consist of basic unit and optional modules
10 years back-up of integrated energy data
Large LCD, high brightness
High accuracy, V or I is 0.2%, kWh is class 1
CT and PT programmable
Panel size: 96 x 96mm
Password protect
Standard: IEC62053-21/ 23, CE

Measurement:

PMAC720 provides one RS485 communication, measures and display real-time parameters:
Voltage—Ua, Ub, Uc, Uab, Ubc, Uca,
Current—Ia, Ib, Ic, In
Active power Pa, Pb, Pc, ∑P
Reactive power Qa, Qb, Qc, ∑Q
Power factorPFa, PFb, PFc, ∑PF
Frequency--F
Active energy—kWh
Reactive energy– kvarh

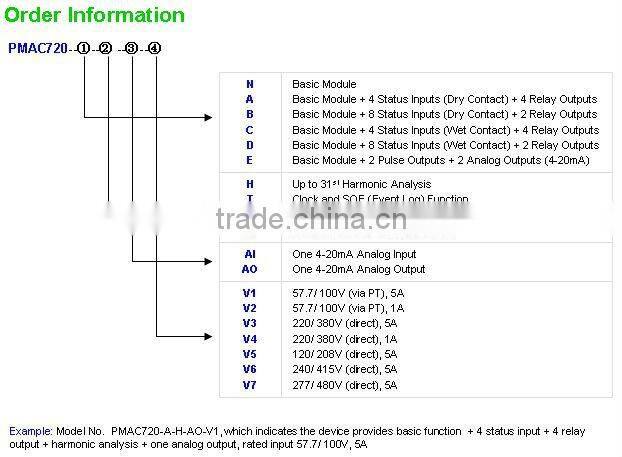

Option module
4 status input (dry contact) + 4 relay output
8 status input (dry contact) + 2 relay output
4 status input (wet contact) + 4 relay output
8 status input (wet contact) + 2 pulse output
2 pulse output + 2 analog output

Optional function:

Up to 31st harmonic analysis
Clock and SOE (event log)
TOU (multi-tariff)
Two RS485 communication port
One 4~20mA analog input
One 4~20mA analog output







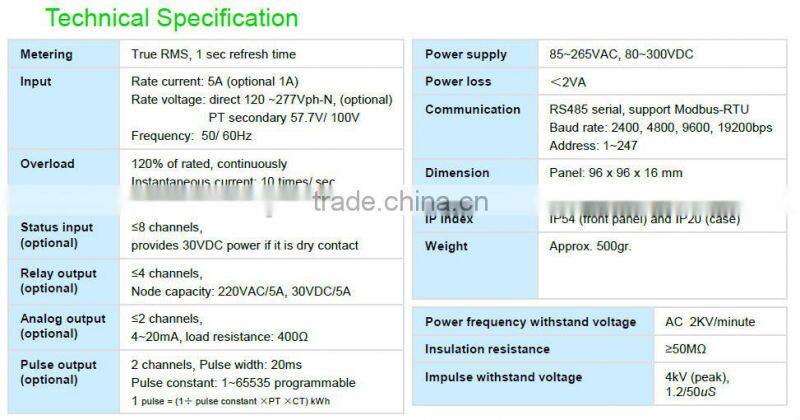

Accuracy:



ParameterAccuracyResolutionMeasuring range
Voltage0.2%0.01

direct 520V ph-ph

PT primary; 0~999999V

Current0.2%0.0010~49999A
Power0.5%0.10~100MW/ Mvar
Power factor0.5%0.001-1.000~+1.000
Frequency0.010.0145~65Hz
Active energy1.0%0.10~99,999,999.9kWh
Reactive energy2.0%0.10~99,999,999.9 kvarh
Individual harmonic1.0%0.0010~100%
Un-balance1.0%0.0010~100%









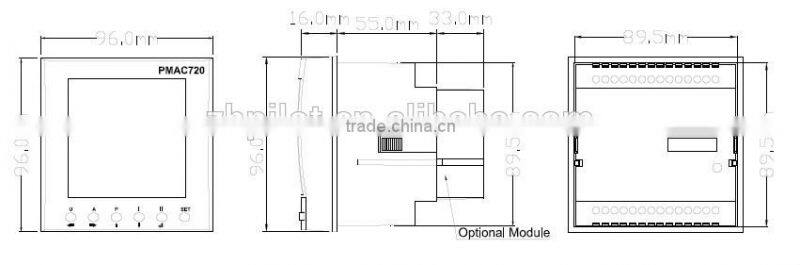

Dimension

















Similar Products



 1.  SPM33 Economic Power Meter (Low cost )





http://zhpilot.en.china.cn/product/1902478439-50323645/SPM33_Three_Phase_Multifunctional_Power_Meter.html





2.   PMAC735 Profibus Power Meter





http://zhpilot.en.china.cn/product/294169299-50323645/PMAC735_3_phase_LCD_multifunction_digital_power_meter.html



3.  PMAC770 Multifunction Power Meter  ( High Performance )



http://zhpilot.en.china.cn/product/698732522-50323645/PMAC770_Modbus_communication_power_meter_Bacnet_power_quality_analyzer.html







Solution





1.  Mini SCADA -- PMAC3624 Web Server



http://zhpilot.en.china.cn/product/60055078889-800376595/PMAC3624_Mini_SCADA_for_128pcs_meter.html
