PILOT SPM93 Energy Meter Modbus Protocol
- Zhuhai Port
- Credit Card
You May Like
-
PILOT SPM91 Energy Meter Modbus Rtu Protocol
-
PILOT SPM33 Three Phase Multifunctional Power Monitor
-
PILOT SPM33 Panel Mount Three Phase 4 Wire Energy Meter
-
PILOT PMAC770 LCD Three Phase 4 Wire Energy Meter
-
PILOT SPM93 Three Phase 4 Wire Energy Meter
-
PMAC901 100A Single Phase Energy Meter Pulse Output
Product Details
| Place of Origin | Guangdong, China | Brand Name | pilot | |
| Model Number | SPM93 | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 0~9999999.9 kWh | |
| Accuracy Class | class 1.0 | Output Voltage | Suit for 110V, 120V, 220V, 230V, 240V AC | |

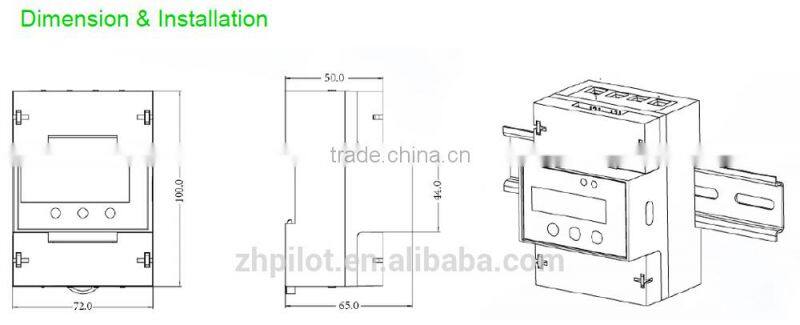

| Operating Temperature | -20℃~ +55 ℃ | Dimensions | 72*100*65mm |
Product Description
PILOT SPM93 energy meter modbus protocol
Basic Function
Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
7 +1 digits LCD display (9999999.9 kWh)

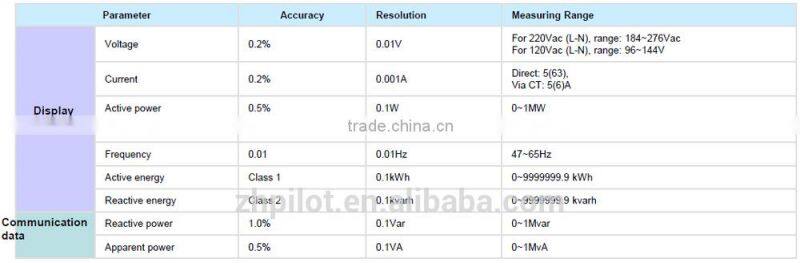

Measure and display V, I, P, PF, F, kWh, kvarh, Multi-tariff energy value
Q,S can be read via RS485

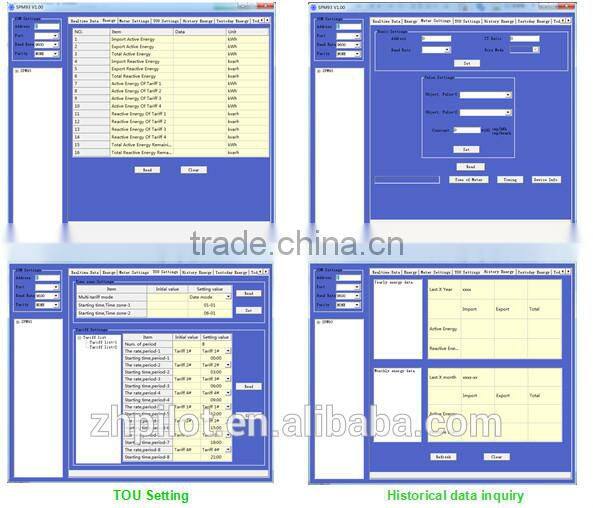

Record historical energy for latest 31days , latest 12 months and latest 10 years
kWh accuracy class 1.0
2 LED indicates pulse ((Settable for kWh or kvarh))
LCD display prompt for phase sequence error
3 keys for programming , 35mm DIN rail installing, standard DIN ED5002
High temperature resistant materials
One RS485 port, MODBUS protocol
Standard: IEC62053-21/ 23

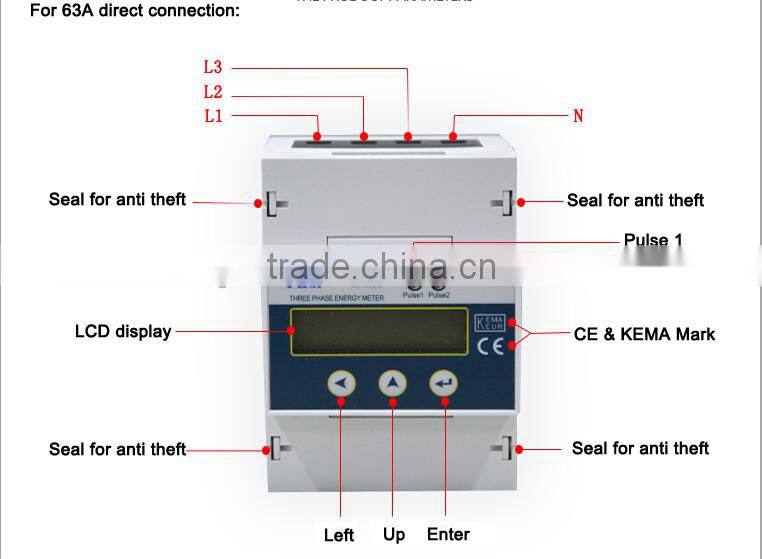

Connection introduction
