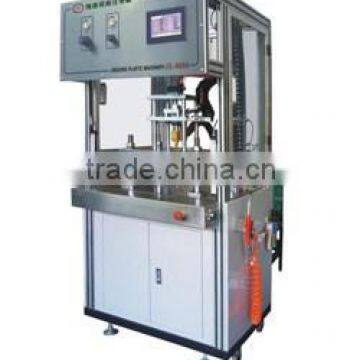

vertical plastic injection molding machine for sensoe ,low pressure injection molding machine for led module

vertical plastic injection molding machine for sensoe  ,low pressure injection molding machine for led module

Specification

1 , Model : JX-900

2 ,Size :1040x915x1660  mm

3 ,Weight : 350 kg

4 , Work station high :900 mm

5 , Plant view :1040x920  mm

6 , Packing size :1060x1050x1700 mm ,Packing weight :400 kg

7 , Melting tank : (5 liter )x1

8 , Gun & Tip Angle  : (36.4⁰ 60⁰ 90⁰ )

9 , Heated hose : JX-ZH-16-Cx1

10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz

11 ,Temperature Control Zones : 3

12 , Temperature range : 70⁰C-260⁰C

13 , Max power (kw) : 4.5  kw

14 , Working pressure :0.5 Mpa -0.8 Mpa

15 , Air consumptiom : 0.1m3/min

16 , Clamping device  :   pnumatic

17 , Clamping force : Max 12 ton

18 , Clamping stroke : 150 mm

19 , Control system : touch screen

20 , Standard mold set size (mm) : 230x120x150(25kg)

21 , Max mold set size (mm) : 300x200x150 mm

22 , Max part size (mm) : 60x50x18 mm

Feature

1 , Single station vertical injection system ,especially  on the left and right parallel continuous wire outlet  mold design is more reasonable  and  reliable .

2 , Console and sol system adopts the integral layout ,flexible use

3 , Console touch-screen display ,with muti-language PLC control system

4 , Glue gun is directly connected with sol cylinder by a hose  ,compact structure ,stable plastic injection .

5 , Injection pressure adjustable ,DELTA temperature control module ,accurately monitor the temperature conditions .

6 , The hands switch clamping and safety grating ,emergency stop switch ,to ensure safe operation .

7 , The mold is convenient to replace ,workbench build product ejection device ,convenient to extract  product .

8 , Dual cylinders is optional  glue injection is more stable , high production efficency

9 , According to the human engineeing machine pedel design convenient operation .

FAQ

1 , What is the product ?

It is low pressure injection  machine for sensor and led module , use for injection system  .

2 , how is it performance ?

It is low pressure injection systems  , more efficency    ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want tomanufacture electric sensor  and led module , how it can do that ?

Yes , we can provide you the  system and solution .
