Home > Products > Low pressure injection molding machine > Roof Shield lntegrated Machine plastic low pressure molding equipment low pressure molding system low pressure molding resin

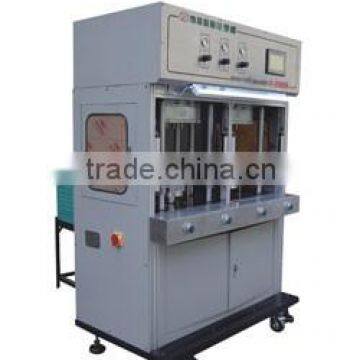

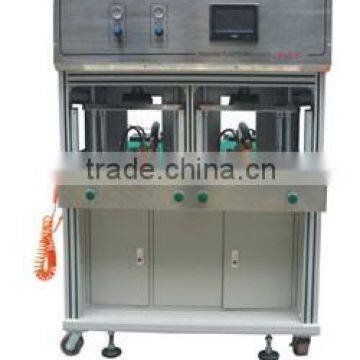

Roof Shield lntegrated Machine plastic low pressure molding equipment low pressure molding system low pressure molding resin
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
JX-1800 / low pressure plastic injection molding machine Single station Side type
-
JX-525 / Desktop Side One body aircraft low pressure plastic injection molding machine Single station Side type
-
JX-1600A / Low pressure plastic injection molding machine Single station machine Side type
-
plastic low pressure molding equipment low pressure molding system low pressure molding resin hot melt adhensives low pressure
-
plastic low pressure molding equipment low pressure molding system low pressure molding resin hot melt adhensives low pressure
-
low pressure molding system LPMS low pressure plastic injection molding machine Single station Side type
Product Details
| Condition | New | Type | Injection Blow Molding | |
| Style | Vertical | Brand Name | JXC | |
| Model Number | JX-2200 | Place of Origin | Guangdong, China | |
| Plastic Type | Other, Low pressure hot melt adhesive(electronic special) | Automatic | Yes | |
| Injection Weight | 80-150g/mit | Clamping Force | Max 1.2Ton | |
| Opening Stroke | 125mm or 150mm option | Power(W) | 4500w | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JX-2200 Side duplex split low pressure plastic injection LPMS low pressure molding system Roof Shield lntegrated Machine plastic low pressure molding equipment low pressure molding system low pressure molding resin hot melt adhensives low pressure injection mold
[Features]
1, duplex Side dispensing systems, duplex table, high-capacity plastic tank is designed to give maximum productivity for manufacturers. Console and sol system uses split layout.
2, plastic pump with plastic tank integrated devices. Compact structure, stable performance.
3,7-inch touch-screen computer interface, real-time display of machine operation and the functional parameters.
4, plastic injection pressure adjustable, DELTA temperature control module, precise monitoring of temperature conditions.
5, the larger the mold table given more space to provide more flexible.
6, clamping his hands and safety grating switch, emergency stop switch, to ensure safe operation.
7, optional Shuangjiao cylinders, dispensing more stable, more productive, more widely used.
8, the machine in accordance with ergonomic pedals designed to facilitate the operation of production.
[Specifications]
Plastic machinery | JX-2200 |
Size(mm)Machine(kg) | 1310x960x1650 (540kg) |
WorkStation Height(mm) | 850 |
Plant View(mm) | 1700x1300 |
Packing(mm)Size(kg) | 1450x1060x1700 (590kg) |
Melting Tank | (5Liter)×1 or2 optional |
Gun & Tip Angle | (36.4°60°.90°)optional |
Heated Hose | JX-ZH-12-C×2 |
Electricity | 200-240VAC/1Phase/50 or 60Hz |
Temperature Control Zones | 5 |
Temperature Range | 70℃- 260℃ |
Max.Power(Kw) | 6 |
Working pressure(Mpa) | 0.5(Mpa)~0.8(Mpa) |
Air Consumption | 0.18m3/min |
Clamping Device | Pneumatic |
Clamping Force | Max.1.2 Tons |
Clamping Stroke(mm) | 125mm or 150mm option |
Control System | touch screen |
Standard Mold Set Size(mm) | 230×120×150 (25kg) |
Max.Mold Set Size(mm) | 300×200×150 |
