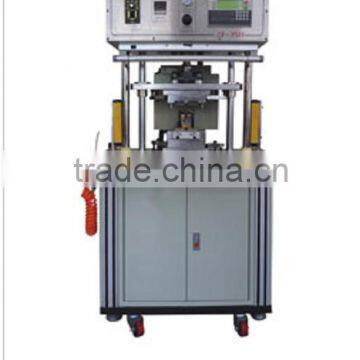

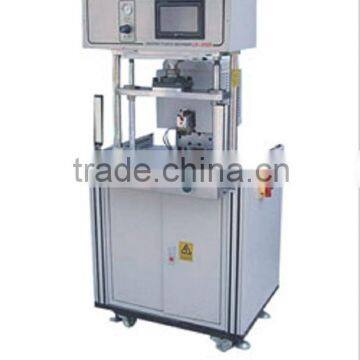

JX-350X Low Pressure Injection Machine , Low Pressure Plastic Injection Machine Supplier

JX-350 low pressure injection machine , low pressure plastic injection machine supplier

Specification

1 , Model : JX-350

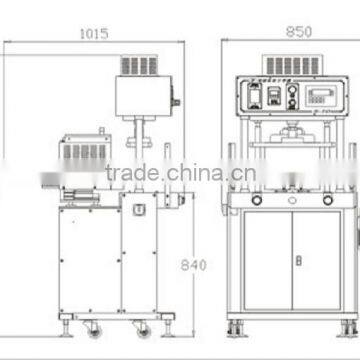

2 ,Size : 850x10150x1640 mm

3 ,Weight :  300kg

4 , Work station high : 840 mm

5 , Plant view : 1020X850  mm

6 , Packing size : 950x1120x1700 mm ,Packing weight :315 kg

7 , Melting tank : ( 3 liter )x1

8 , Gun & Tip Angle  : (36.4⁰ 60⁰ 90⁰ )

9 , Heated hose : N/A

10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz

11 ,Temperature Control Zones : 2

12 , Temperature range : 70⁰C-260⁰C

13 , Max power (kw) :  4 kw

14 , Working pressure :0.5 Mpa -0.8 Mpa

15 , Air consumptiom : 0.1m3/min

16 , Clamping device  :pneumatic

17 , Clamping force : Max 12 ton

18 , Clamping stroke : 150 mm

19 , Control system : touch screen

20 , Standard mold set size (mm) : 180x100x150(16kg)

21 , Max mold set size (mm) : 300x120x150 mm

22 , Max part size (mm) :  50x45x8 mm

Feature

1 , Single station vertical injection system ,especially  on the left and right parallel continuous wire outlet  mold design is more reasonable  and  reliable .

2 , Console and sol system adopts the integral layout ,flexible use

3 , Console touch-screen display ,with muti-language PLC control system

4 , Glue gun is directly connected with sol cylinder by a hose  ,compact structure ,stable plastic injection .

5 , Injection pressure adjustable ,DELTA temperature control module ,accurately monitor the temperature conditions .

6 , The hands switch clamping and safety grating ,emergency stop switch ,to ensure safe operation .

7 , The mold is convenient to replace ,workbench build product ejection device ,convenient to extract  product .

8 , Dual cylinders is optional  glue injection is more stable , high production efficency

9 , According to the human engineeing machine pedel design convenient operation .

FAQ

1 , What is the product ?

It is low pressure injection  machine for lithium battery , use for injection battery  .

2 , how is it performance ?

It is low pressure injection systems  , more efficency    ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open a battery factory and an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery automating system and solution .
