Best Price China Manufacturer Lithium Battery Tester for smart phone cylinder battery Testing Battery

Best Price China Manufacturer Lithium Battery Tester for smart phone cylinder battery Testing Battery

This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester

Application:

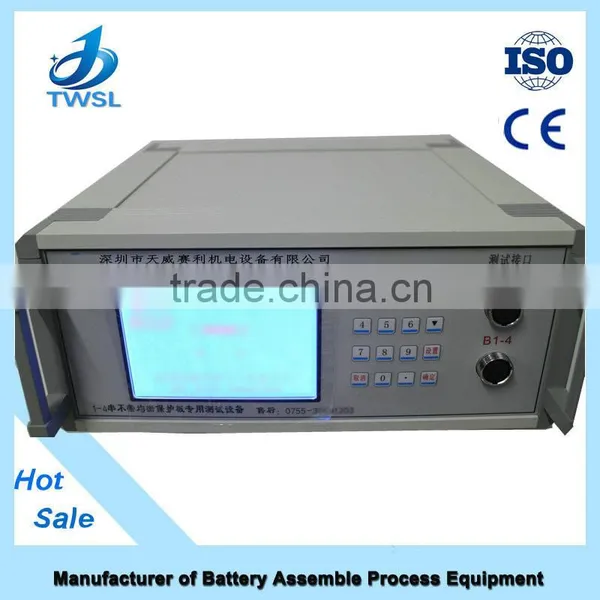

TWSL-8858 multi-function PCB board testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery protecting board.

Features:
1, Short circuit protection test 2, Self consumption of each PCB board test
3, Equalizing current and balance voltage test
Specification:
Size(L*W*H): 410 *420*200mm; Net weight: 15KG

Operating environment:
Input power from 170-260V, Temperature from -10℃-40℃, humidity from 10%-90%, Maximum power 600W.

Basic configuration:
The current module: 60A, 120A two grades with 0.1A accuracy
The voltage module: 0-5V range with 5mV accuracy
Short circuit module: capture time and current of short circuit precisely by complete analog of battery pack

Detailed configuration:
Item Range Accuracy
Test rate of series 1-24 series optional
Over charge protecting voltage 0-5V ±5mV
Over discharge protecting voltage 0-5V ±5mV
Over charge recovery voltage 0-5V ±5mV
Over discharge recovery voltage 0-5V ±5mV
Over charge protecting current 0-50A ±0.1A
Over discharge protecting current 0-120A ±0.1A
Balanced turn-on voltage 0-5V ±5mV
Equilibrium real time current 0-1000MA ±1mA
Over current protection delay 0-8S ±1mS
Total self current consumption 0-10MA ±5uA
Single self current consumption 0-500uA ±1uA
Loop resistance 0-200mΩ ±1mΩ
Short circuit protecting
(more than 10 series) 0-9999u
