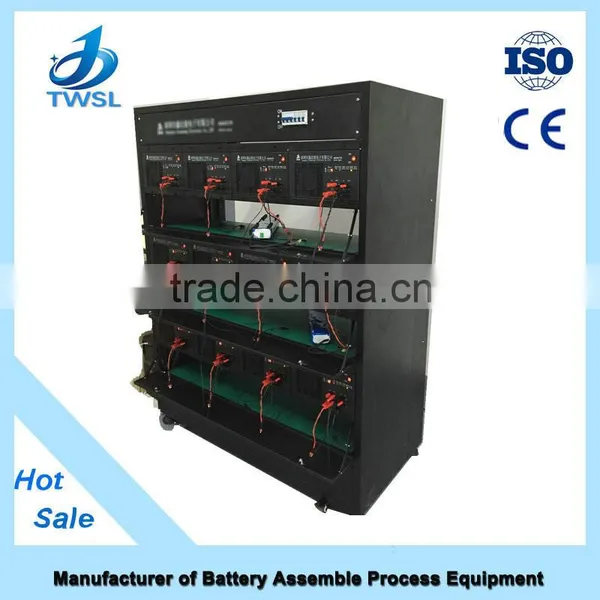

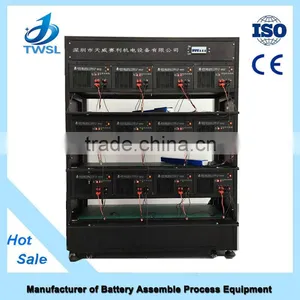

Best Discount Lithium Battery Testing Machine Lithium Battery Tester Test Machine Testing Equipment

lithium battery testing equipment for lithium battery test battery tester Machine testing  0~70V charging 5A discharge 10A battery tester

Features:

Constant current and constant voltage charging;

Constant current discharging;

Record charge and discharge capacity;

Upper and lower limits of voltage protection;

To detect the battery protection by charging and discharging;

Advantages:

In network mode, connect automatically;

MYSQL database, ensures that no data is lost, provides data tracing function

In small quantity, equipments communicate with PC via serial port;

Multiple devices, equipments communicate with PC via internet, control all the instruments via one network interface which ensures timeliness and integrity of data;

Series number displayed on LED screen, available for querying the instrument location by corresponding number, series number can be modified in software, reflecting the flexibility of instrument;

In addition to P+ and P- interfaces, instrument also provides the CH+ and CH-, charge and discharge in one instrument;

Fit for all batteries within the measurement range, improves the versatility of the equipment.

Specification:

Input power: AC 220V±10%  50Hz

Voltage         measurement range   0-70V

                    Accuracy: ±(0.2% of reading + 0.2% of range)

Currency:     Charge range: 0-5000mA

Charge accuracy: ±(0.2% of reading + 0.2% of range)

Discharge range: 0-15000mA

Accuracy:±(0.2% of reading + 0.2% of range)

Charge         Constant voltage cut-off current

Capacity      Accuracy: ±1‰

Power           Discharge power: ≤800W

Time:           Inspection time: <2S

                   Timer range: 0-999 Hour/Step

Interval of data record: ≥5S

Charge          Mode: Constant current and constant voltage charging

                    Cut-off condition: voltage, current, relative time, over discharge protect

Discharge       Model: Constant-current discharge

                     Cut-off condition: voltage, relative time, over discharge protection

Circulation      Measurement range: 1-999 times

                     Single cycle steps: 100

Voltage and Currency tests sampling: Four-wired sampling

Database type: MYSQL

PC communication mode: TCP/IP protocol, Serial

Data output: EXCEL/TXT/Diagram

Communication interface: Internet access

Channel of each cabinet: 12

Crate dimension(W*D*H): 45*30*17(mm)

Cabinet dimension( W*D*H): 130*60*160(mm)
