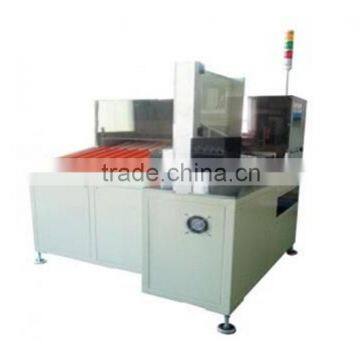

18650 ten-speed automatic sorting solution Cylindrical battery ten-speed automatic sorting machine

18650 ten-speed automatic sorting solution Cylindrical battery ten-speed automatic sorting machine

product name:

Features:

TWSL-1000 sorter main achievement of the bulk material on a cylindrical battery, automatic cutting test, the robot automatic binning and other functions. Equipment according to the parameters set by the different battery internal resistance and voltage precision sorting by the robot to a different gear, this device implements the 10 sorting, and can be tested per hour with a group of about 5000 batteries. No similar equipment in the industry is currently the fastest cylinder sorter. Batteries test data system to achieve database management, long-term preservation, traceability and strong.

model: TWSL-1000

Single-phase 220VAC power: 0.8KW

Working gas source: 0.5-0.6MPa

Adaptation battery Dimensions: 18650

Separation efficiency: 80PPM above

Weight: About 300KG

Dimensions : Length 100 * W 140 * H 160cm

instrument: Precision voltage resistance tester (optional)

Sorting parameters: Open circuit voltage, AC resistance

Open circuit voltage accuracy :± 0.1% rdg Display Resolution: 0.1mvΩ

AC resistance accuracy: ± 0.5% rdg Display Resolution: 0.1mvΩ

FAQ

1 , What is the product ?

It is an automating sorting  machine for 18650 26650 battery , use for 18650 26650 battery sorting.

2 , how is it performance ?

It is automating , more effectioncy , it can replace 10-15 staffs works ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open an automating system for 18650 26650  battery , how it can do that ?

Yes , we can provide you the battery automating system and solution .
