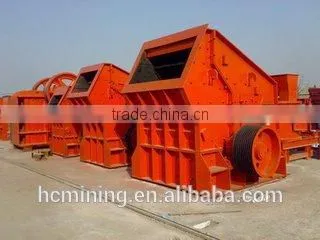

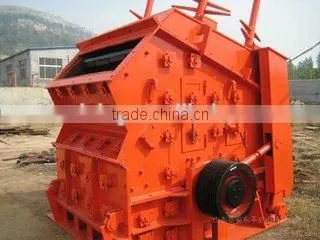

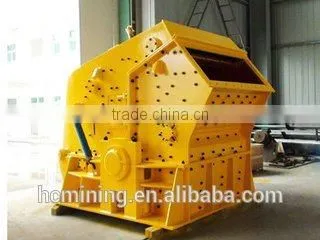

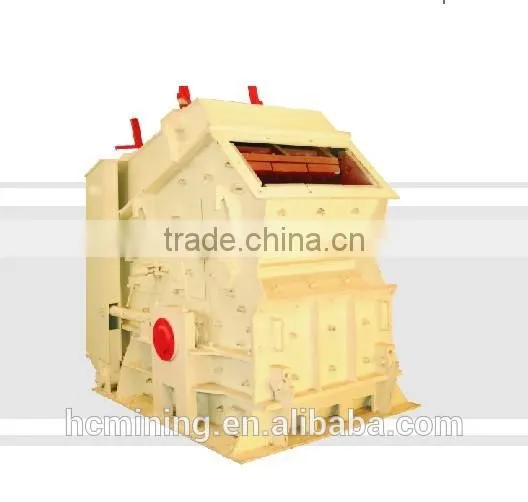

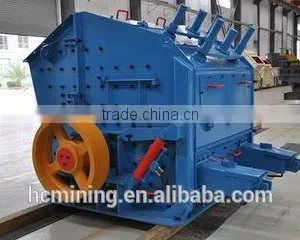

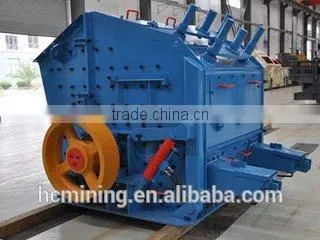

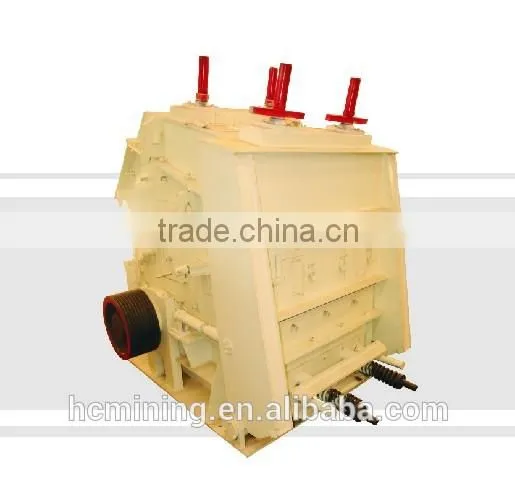

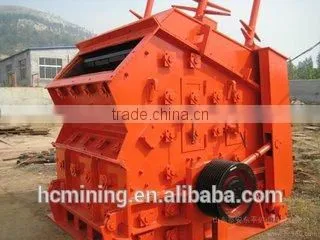

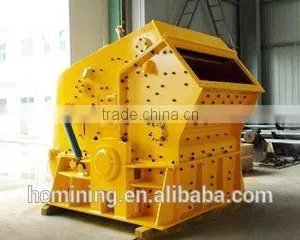

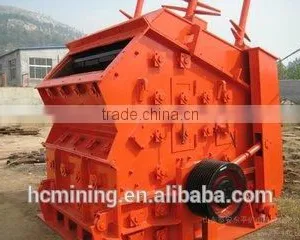

Impact crusher machine
Impact crusher machine introduction:
Impact crusher machine are used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris.
Impact crusher machine working principle:
When the impact crusher machine works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the stone crusher machine.
Impact crusher machine characteristics:
Excellent cubic final products
Special structure
Non-key connection
High chrome hammer
Durability in long time simplicity in operation
Easy adjustment, high reduction ration
Good performance and high reliability
Impact crusher machine technical parameter:
Models |
Rotor size (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Power (kW) |
Weight (t) |
PF1007 |
Φ1000×700 |
400×730 |
300 |
15-30 |
37 |
5.54 |
PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
55 |
15 |
PF1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
95 |
15.25 |
PF1214 |
Φ1250×1400 |
400×1430 |
350 |
90-180 |
132 |
19 |
PF1315 |
Φ1320×1500 |
860×1520 |
500 |
120-250 |
200 |
24 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
260 |
27 |
Note: This series crusher fits in the hard stone crushing, and the 90% of the output materials size ≤ 40mm
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
If you want to know more details, please contact me!!
Website:
Tel: +86-0371-86160152
