Product Details

Condition	New	Type	Slat Conveyor
Material	Rubber	Material Feature	Heat Resistant
Structure	Belt Conveyor	Load Capacity	Min: 40-80t/h Max: 655-1284t/h
Place of Origin	Henan, China	Brand Name	HC
Model Number	HC series

Product Description

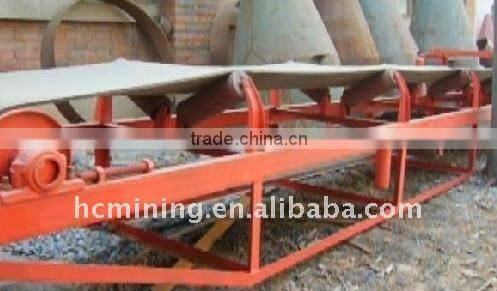

Charcoal briquette belt conveyor

Introduction:

Charcoal Briquette Belt Conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force. The Belt Conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long

Technical parameter:

Belt width ( mm )	Convey length (m) / power (Kw)			Speed(M/S)	Capacity(t/h)
400	≤12 / 1.5	12-20 / 2.2-4	20-25 / 3.5-7.5	1.3-1.6	40-80
500	≤12 / 3	12-20 /4-5.5	20-30 / 5.5-7.5	1.3-1.6	78-191
650	≤12 / 4	12-20 / 5.5	20-30 / 7.5-11	1.3.-16	131-323
800	≤6 / 4	6-15 /5.5	15-30 /7.5-15	1.3-1.6	278-546
1000	≤10 / 5.5	10-20 / 7.5-11	20-40 / 11-12	1.3-2.0	435-853
1200	≤10 / 7.5	10-20 /11	20-40 / 15-30	1.3-2.0	655-1284

Accessory:

1. The conveying quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.

2. Density of material is less than 2.5t/m3.

3. The conveying length is not restricted to the form; different length can be manufactured according to customers demands.
