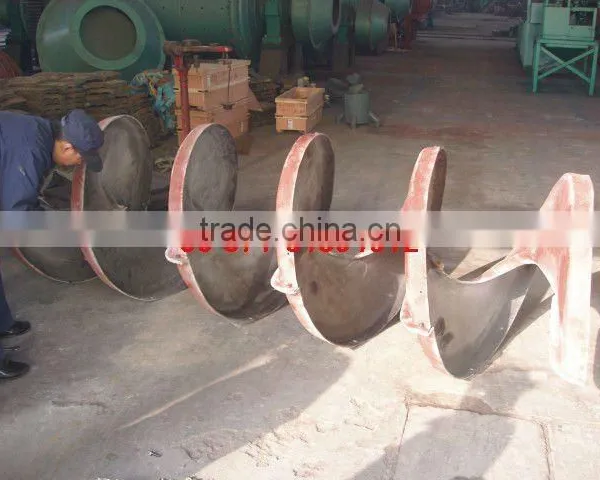

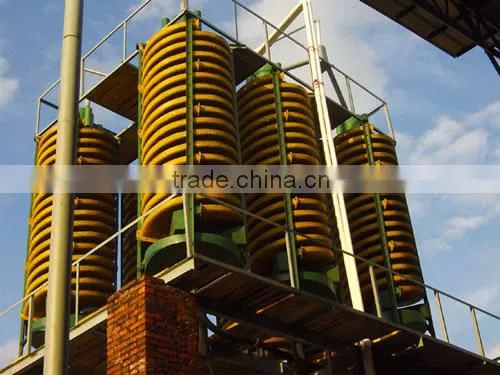

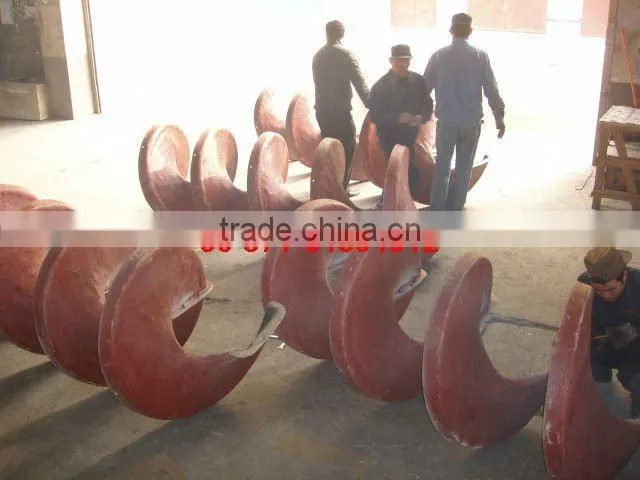

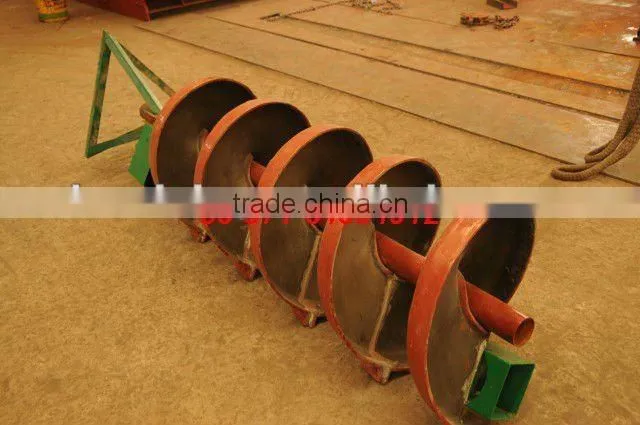

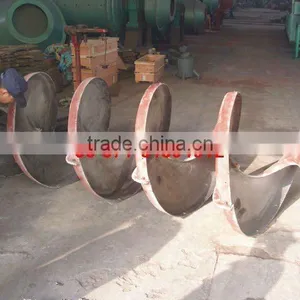

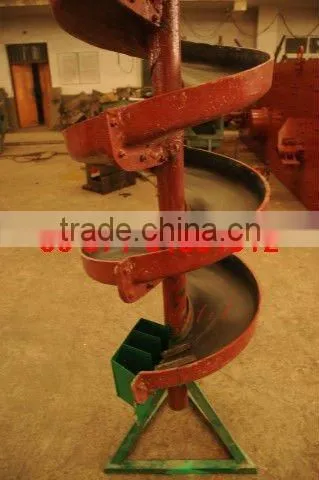

Spiral chute mining equipment
Introduction:
spiral chute mining equipment is our company of concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating of the sand ore of the seashore, riverside, sand, rill is better. The advantage is reasonable structure, simple fixed, less space, easily operated, concentrating even, separated clearly, high efficient. The product is made of the chlorine plastic, the advantage is light, moisture proof, antirust, corrosion proof, properly suitable for the changing of th feeding size and chrome, granularity, grade, no noise.
Application:
It is applicable to material separation of size 0.3 - 0.02 mm, such as of Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin, Tantalum ore, Niobium mine and other non-ferrous metals, precious metals and non-metallic minerals, which with proportion differences.
Working Principle:

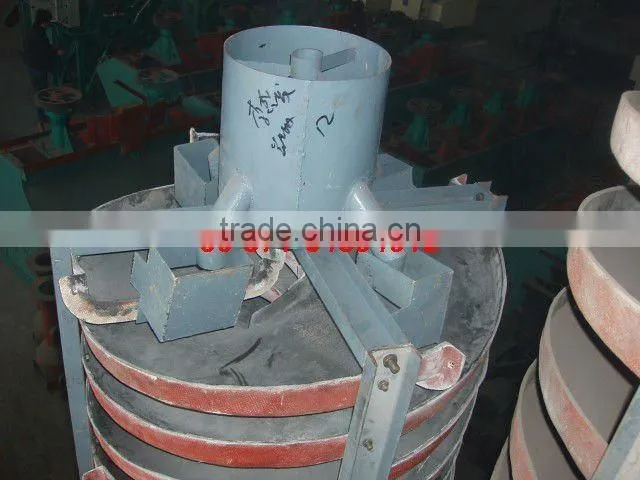

In order to have a good separation, there should be a difference in Specific Gravity's of at least 1.0. One main benefit of spiral chute mining equipment is they have no moving parts. The feed range, in percent solids, to a spiral ranges from 20% solids up to 40% solids. Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
Technial Parameter:
Model |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
External diameter(mm) |
1200 |
900 |
600 |
400 |
Screw distance(mm) |
900/720/540 |
675/540/405 |
450/360/270 |
240/180 |
Ratio(scroll distance/diameter) |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.6/0.45 |
Transverse obliqiuty |
9o |
9o |
9o |
9o |
Max. scroll buckets for each machine |
4 |
4 |
3 |
2 |
Feeding granularity(mm) |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 |
Feeding thickness(%) |
25-55 |
25-55 |
25-55 |
25-55 |
Capacity(t/h) |
4-6 |
2-3 |
0.8-1.2 |
0.15-0.2 |
