Product Details
Condition: | New | Type: | Flotation Separator | Place of Origin: | Henan, China |
Brand Name: | HC | Model Number: | XJK series |
Product Description

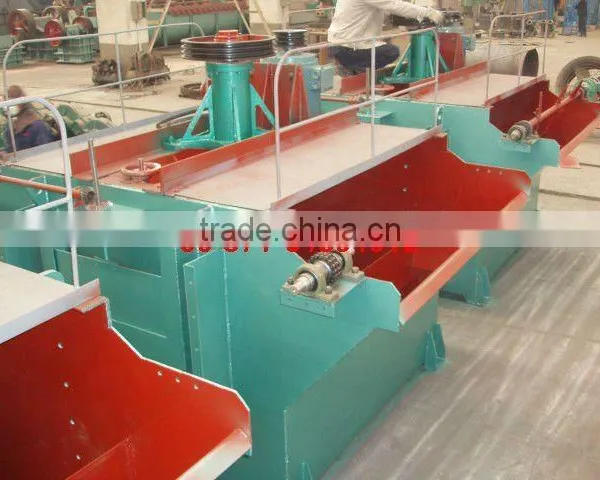

laboratory flotation machine
Introduction:

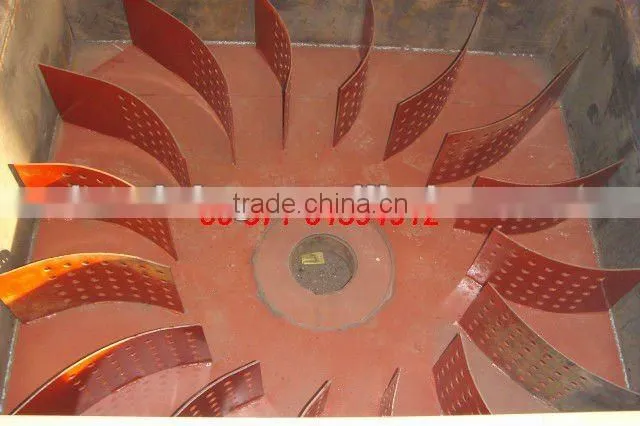

laboratory flotation machine is applicable for the separation of nonferrous metal and ferrous metals, such as fluorite and talc. The impeller is driven by V-belts, which can bring the centrifugal effect to form negative pressure. While extracting sufficient air to mix with ore pulp, the machine stirs ore pulp and mixes it with chemicals to form mineralized froth. By adjusting the height of the flash board to control the liquid level, the useful froth can be scraped from the loam board.
working principle:
When the laboratory flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
Features:
1. large air-absorption capacity
2. low energy consumption
3. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow......
Specifications:
Type | Cubage(m3) | Diameter of impellor(mm) | Capacity(m3/min) | Speed of impellor(r/min) | Motor of impellor | Weight (t/single trough) |
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | Y90L-4-1.5 | 0.23 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | Y90L-4-1.5 | 0.35 |
XJK-0.35 | 0.35 | 300 | 0.18-0.4 | 470 | Y90L-4-1.5 | 0.43 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | Y100L-4-3 | 0.86 |
XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | Y100M-4-5.5 | 1.38 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | Y100M-4-11 | 2.33 |
XJK-5.8 | 1.1 | 750 | 3-7 | 240 | Y100M-4-22 | 3.533 |
