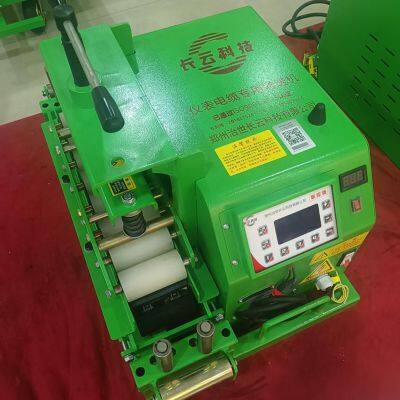

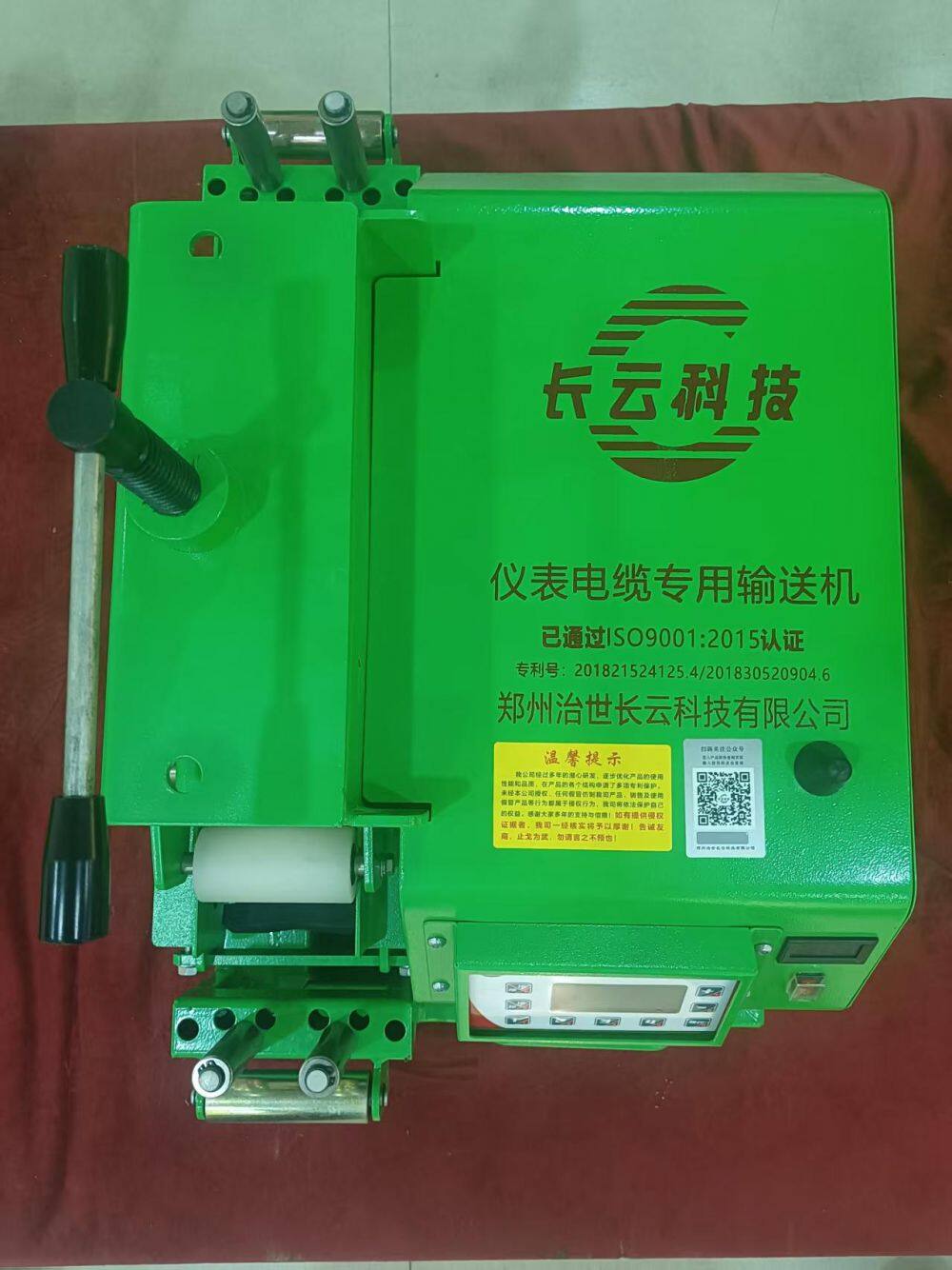

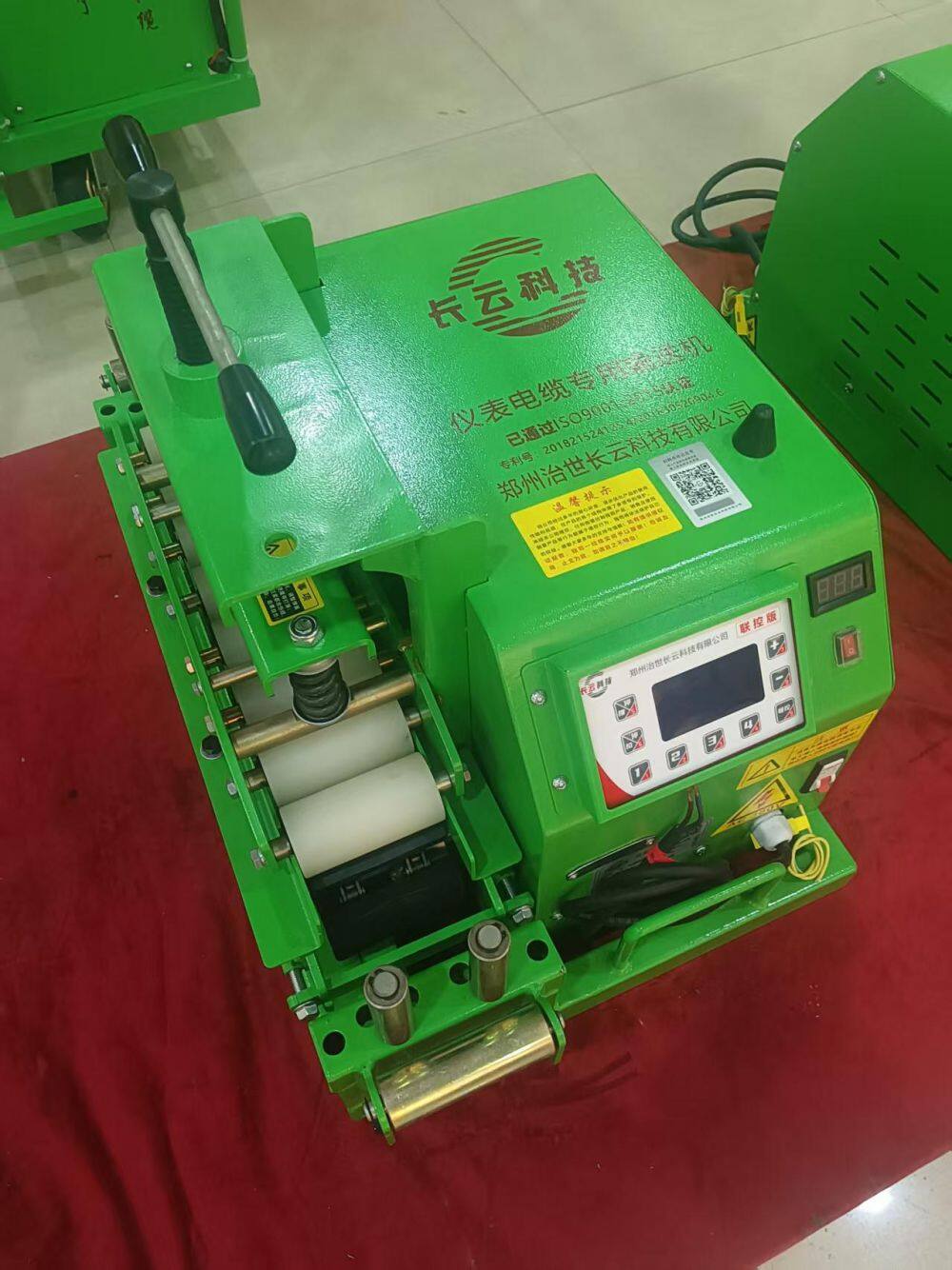

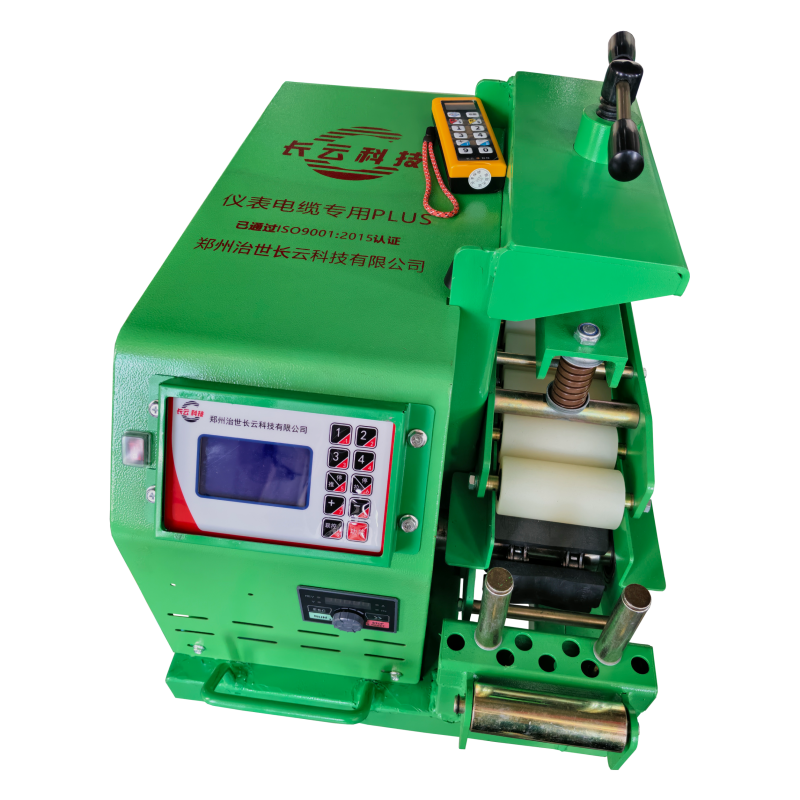

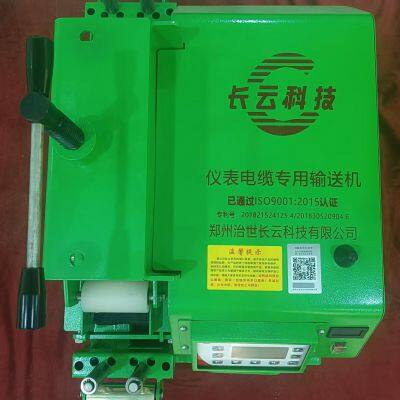

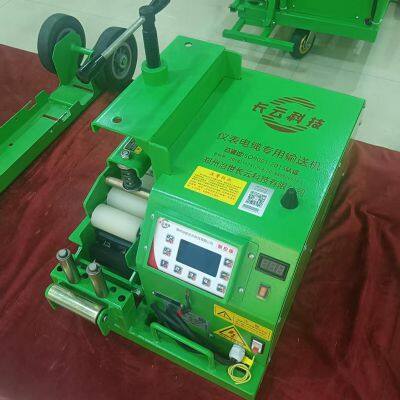

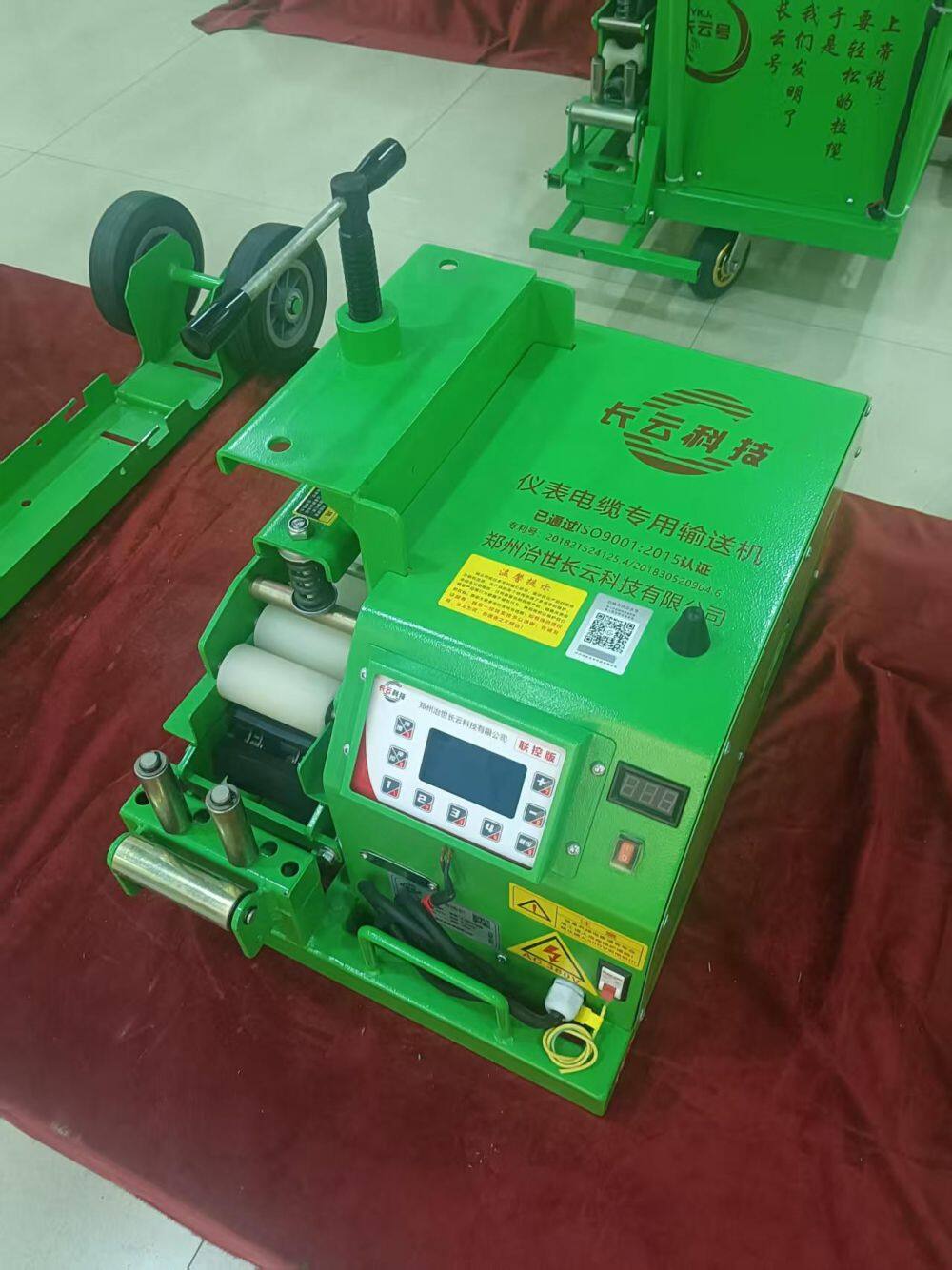

Instrument Conveyor PLUS - Cable Conveyor With 3000N Max Pull Force, Remote Control & Stepless Speed

Key Features

• Power and Performance: With a 1500W motor, it can achieve a maximum pulling force of 3000N, suitable for cables with diameters ranging from 1 - 5cm. The conveying speed ranges from 4 - 26m/min, with the optimal speed being 10 - 16m/min (at gear 2 and gear 3).

• Control Modes: Supports control via the control panel and remote control. It also enables multi - machine linkage control, making large - scale cable laying projects more efficient.

• Speed Regulation: Features 4 - gear + stepless speed change, allowing for flexible speed adjustment as per different requirements.

• Durable Design: The nylon pressure wheel combined with high - quality rubber wheels ensures a long service life. It also comes with an external antenna and a panel protective cover for added protection.

•


Technical Parameters

• Model: Instrument Conveyor PLUS

• Power Supply: AC380V (AC220V customizable)

• Motor Power: 1500W

• Conveying Speed: 4 - 26m/min (Optimal: 10 - 16m/min at gear 2, 3)

• Maximum Pull Force: 3000N

• Cable Diameter: 1 - 5cm

• Dimension: 75X42X50cm

• Net Weight: About 76kg

Note
