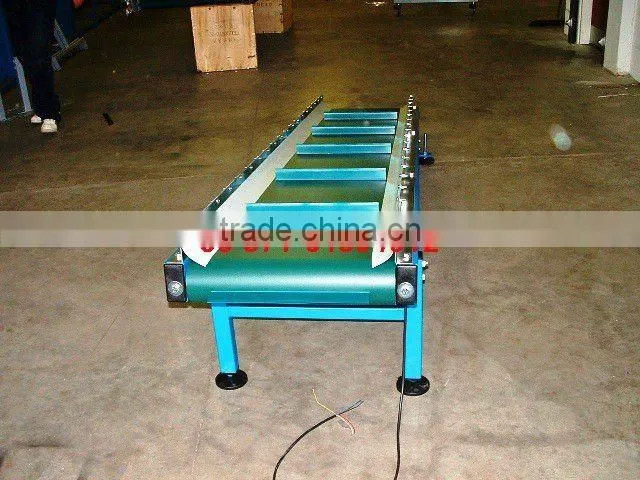

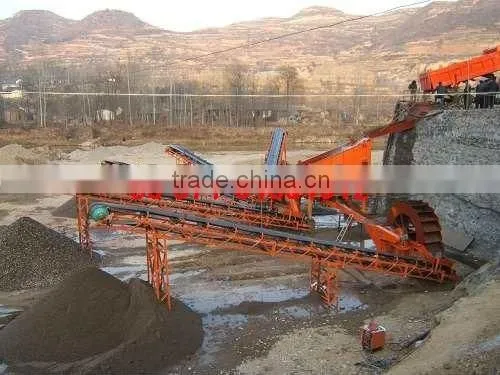

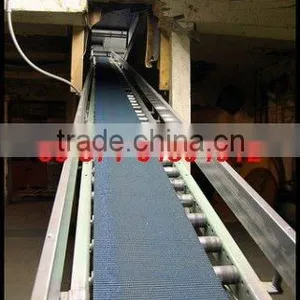

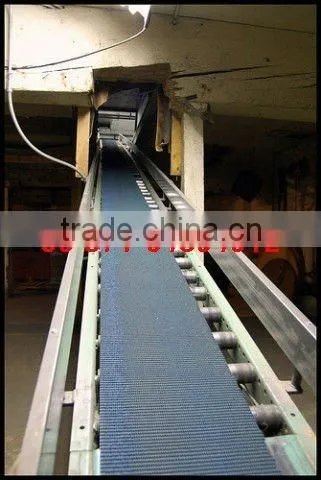

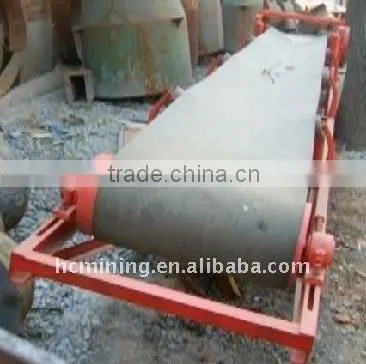

Material transfer system (belt conveyor)
Introduction:
material transfer system is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force. This kind of transfer system is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long
Technical Parameter:
Belt width ( mm ) |
Convey length (m) / power (Kw) |
Speed(M/S) |
Capacity(t/h) |
||
400 |
≤12 / 1.5 |
12-20 / 2.2-4 |
20-25 / 3.5-7.5 |
1.3-1.6 |
40-80 |
500 |
≤12 / 3 |
12-20 /4-5.5 |
20-30 / 5.5-7.5 |
1.3-1.6 |
78-191 |
650 |
≤12 / 4 |
12-20 / 5.5 |
20-30 / 7.5-11 |
1.3.-16 |
131-323 |
800 |
≤6 / 4 |
6-15 /5.5 |
15-30 /7.5-15 |
1.3-1.6 |
278-546 |
1000 |
≤10 / 5.5 |
10-20 / 7.5-11 |
20-40 / 11-12 |
1.3-2.0 |
435-853 |
1200 |
≤10 / 7.5 |
10-20 /11 |
20-40 / 15-30 |
1.3-2.0 |
655-1284 |
Accessory:
1. The conveying quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
2. Density of material is less than 2.5t/m3.
3. The conveying length is not restricted to the form; different length can be manufactured according to customers demands.
