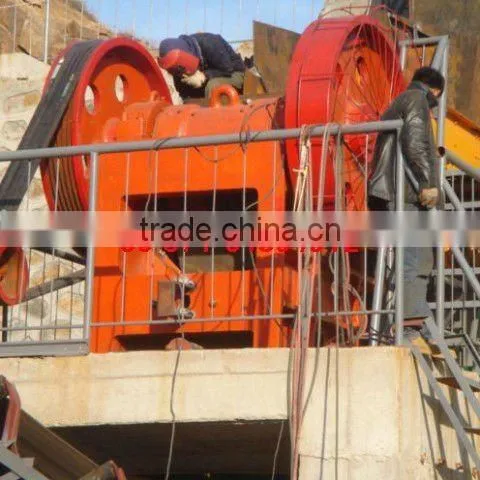

Thick broken shredder
Brief introduction
Thick broken shredder is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. The highest antipressure strength of material to be crushed is 320MPa. This thick broken shredder is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.
Working Principle:
The motor drives pulley, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.
Features:
High ratio of crushing;
Homogeneous final product size;
Simple structure;
Reliable working condition;
Easy maintenance;
Low operating cost;
Little noise and dust;
Safe and reliable lubrication;
PE, PEX series thick broken crusher is Large-scale tilting complex style, widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and many other industries, dealing with large particle size, compressive strength of not more than the various ore 320Mpa and the rough rocks or broken pieces of work. PE series for the rough-breaking, PEX series used to the small and thin break.
Technical parameters:
Model |
Max. Feed Size |
Output Size |
Capacity |
Motor Power |
Weight |
PE-60×100 |
45 |
3-10 |
0.2-0.6 |
1.1 |
0.116 |
PE-150×250 |
125 |
10-40 |
0.6-3 |
5.5 |
0.81 |
PE-250×400 |
210 |
20-80 |
3-13.1 |
15 |
2.8 |
PE-250×500 |
210 |
20-80 |
5.7-31 |
18.5 |
3.37 |
PE-400×600 |
340 |
40-100 |
10-40 |
30 |
6.5 |
PE-430×600 |
400 |
90-140 |
35-60 |
37 |
6.5 |
PE-475×1050 |
400 |
90-140 |
37.5-81 |
55 |
11.7 |
PE-500×750 |
425 |
50-100 |
28.5-62.5 |
55 |
10.3 |
PE-550×900 |
450 |
50-120 |
47-75 |
55 |
7.8 |
PE-600×750 |
500 |
150-200 |
50-100 |
55 |
12 |
