Specifications
Gold Ore Ball Mill1. Dry or wet grinding ways
2. High efficiency
3. Grind materials into fine powder
4. 23 years experience
High Efficiency Gold Ore Ball Mill:
The ball mill is a key piece of equipment for grinding crushed materials, and it is widely used in production lines for powders such as cement, silicates, refractory material, fertilizer, glass ceramics, etc. as well as for ore dressing of both ferrous non-ferrous metals. The ball mill can grind various ores and other materials either wet or dry. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material. Key properties of grinding media are size, density, hardness, and composition.
A ball mill, a type of grinder, is a cylindrical device used in grinding materials like ores, chemicals, ceramic raw materials and paints. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used as media, including ceramic balls, flint pebbles and stainless steel balls. An internal cascading effect reduces the material to a fine powder. Industrial ball mills can operate continuously fed at one end and discharged at the other end.
Model |
Cylinder speed (r/min) |
Ball loading (t) |
Feeding Size (mm) |
Output size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
MQZ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
15 |
4.2 |
MG900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
MQZ1200×2400 |
37 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
11.5 |
MG1200×3000 |
37 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
MG1200×4500 |
37 |
6.6 |
≤25 |
0.074-0.4 |
1.6-5.8 |
45 |
13.8 |
MQZ1500×3000 |
29.7 |
8 |
≤25 |
0.074-0.4 |
2-5 |
75 |
16 |
MG1500×4500 |
29.7 |
12.5 |
≤25 |
0.074-0.4 |
3-6 |
90 |
22 |
MG1500×5700 |
29.7 |
15 |
≤25 |
0.074-0.4 |
3.5-6 |
110 |
24.7 |
MQZ1830×3000 |
25 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
MG1830×4500 |
25 |
15.8 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
MG1830×6400 |
24.1 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
36.5 |
MG1830×7000 |
24.1 |
24 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
39 |
MQZ2100×3000 |
24.6 |
20 |
≤25 |
0.074-0.4 |
7.5-36 |
180 |
40 |
Parts of ball mill machine
Flash of ball mill machine

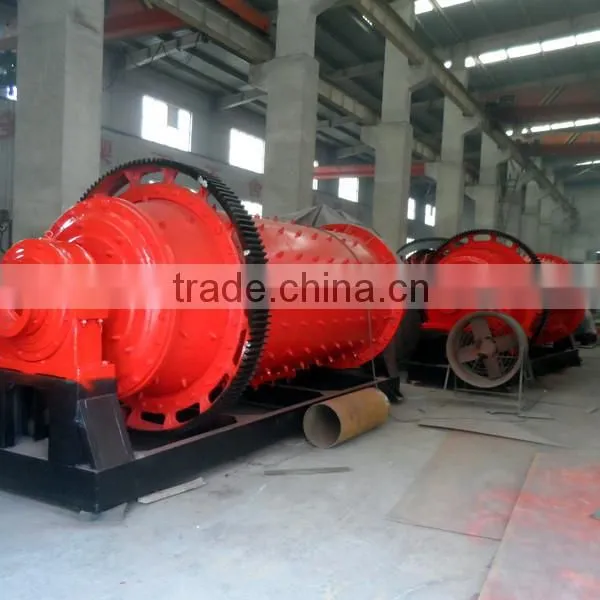

Ball Mill machine in our factory
Delivery of baill mill machine
Customer site of ball mill machine
•Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day
•Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
•Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged).
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Welcome to visit our factor for checking machines in workshop.
If you at Shanghai/Beijing/Guangzhou etc. You can fly to “Zhengzhou Xinzheng International Airport”. We can pick you up at the airport.
If you are interested in our product, pls contact me:
