China High Quality Portable Magnetic Separator Manufacturer
- Qingdao Shanghai Tianjin Dalian Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Iron Ore Separation Equipment Shaking Table for Sale
-
High Efficiency Gold Ore Ball Mill
-
Long Working Life Ball Grinding Mill
-
Low Price Compound Crusher, Composite Crusher for Sale
-
Hengchang High Quality YMQ Ball Mill for Mining Ore
-
Gongyi Hengchang Good Quality Compost Fertilizer Disc Pelleting Machine
Product Details
| Condition | New | Type | Other, Magnetic Separator, Magnetic Separator Price | |
| Production Capacity | 24-350 t/h | Place of Origin | Henan, China | |
| Brand Name | HC | Model Number | CTB series | |
| Voltage | refer to your specification | Power(W) | 1.1-11 kw | |
| Dimension(L*W*H) | according to different models | Weight | 850-9000 kg | |
| Certification | ISO9001,BV,SGS | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China high quality portable magnetic separator manufacturer:
Magnetic separator refers to a kind of equipment which select according to the magnetic difference between the ore and the barren rock in a dry/wet way. Magnetic separators with fixed magnetic drum can be applied to the separation of fine strong magnetic ore while they, also, can be used to remove the strong magnetic mixture ore from the non-magnetic ore. This kind of magnetic separators can be feed and discharged continuously with its intensive magnetic field, big work clearance and large treatment capacity.
Features of magnetic separator:
♥ The wet magnetic separator applies to the strong magnetic minerals with the particle size of less than 3mm, such as the magnetite, calcined ore, ilmenite ore, etc. In addition, it is also widely used for iron removal operation in coal, non-ferrous metal and building material industry. Our factory can supply different magnetic force grade separator in the form of downstream, semi-counter current, counter current. It owns the features of simple structure, large capacity, easy operation and maintenance, etc.

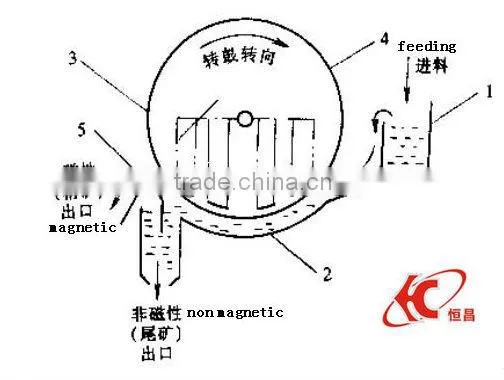

Working Principle of magnetic separator:
The strong magnetic ore is adsorbed to the surface of the drum while the weak magnetic ore and non-magnetic ore are flicked off when the ore powder enters into the magnetic field. The strong magnetic adsorption on the drum surface revolves with the drum and is brought from the magnetic field. Finally it will be crushed into fine ore bunker finishing the separation.

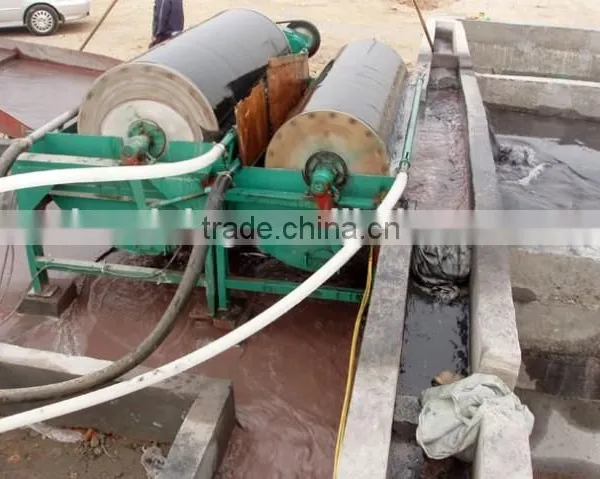

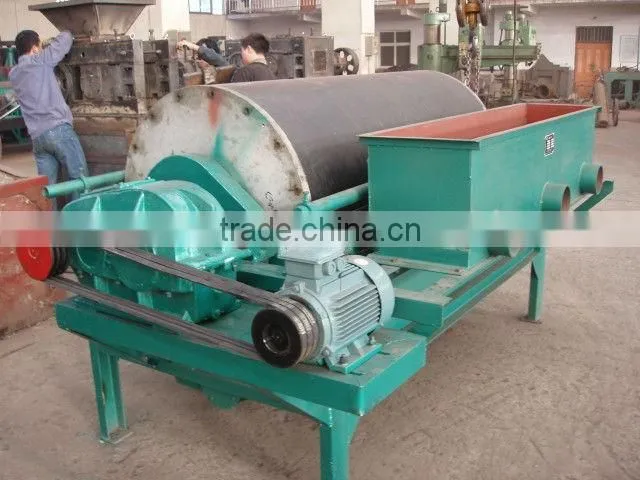

The dry magnetic The wet magnetic
Technical Parameters of magnetic separator:
Model | Magnetic Strength (mT) | Input Size (mm) | Cylinder Speed (r/min) | Power (kw) | Capacity | Weight (kg) | |
Dry Ore (t/h) | Slurry (m3/h) | ||||||
CTB600x900 | ≥120 | ≤1 | 40 | 1.1 | 8-15 | 24 | 850 |
CTB600×1200 | ≥120 | ≤1 | 40 | 1.5 | 10-20 | 32 | 1000 |
CTB600×1800 | ≥120 | ≤1 | 40 | 2.2 | 15-30 | 48 | 1300 |
CTB750×1200 | ≥120 | ≤1 | 35 | 2.2 | 15-30 | 48 | 1500 |
CTB750×1800 | ≥120 | ≤1 | 35 | 3.0 | 20-45 | 72 | 1800 |
CTB900×1800 | ≥135 | ≤1 | 28 | 4.0 | 25-55 | 90 | 2400 |
CTB900×2100 | ≥135 | ≤1 | 28 | 4.0 | 30-65 | 100 | 2650 |
CTB1050×1800 | ≥145 | ≤1 | 22 | 5.5 | 35-70 | 110 | 3800 |
CTB1050×2100 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4150 |
CTB1050×2400 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4500 |
CTB1200×2100 | ≥145 | ≤1 | 19 | 7.5 | 62-110 | 160 | 5800 |
CTB1200×2400 | ≥145 | ≤1 | 19 | 7.5 | 82-120 | 192 | 6200 |
CTB1200×3000 | ≥145 | ≤1 | 19 | 7.5 | 80-150 | 240 | 6800 |
•Installation and guidance
When the machine arrives at your company, our engineer will guide you the installation and commissioning.
•Technical training
We provide free technical training service
•Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged).
If you are interested in our products, please contact:
Contact Us
- Gongyi Hengchang Metallurgical Building Material Equipments Plant
- Contact nameXingqi Li Chat Now
- Phone86-371-86106152
- AddressNo.6 Guang road, gongyi, Zhengzhou, Henan
