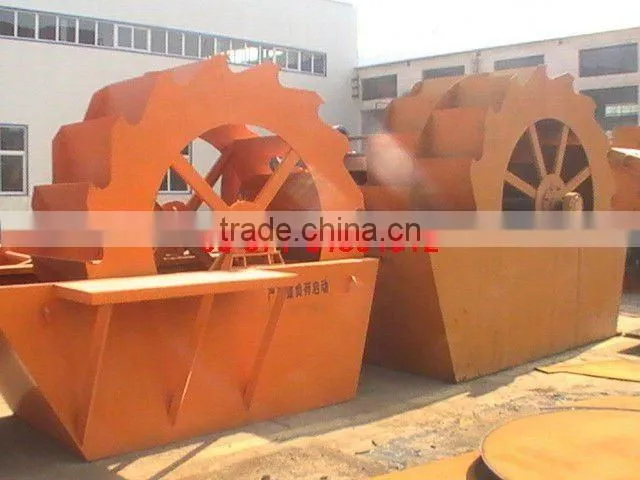

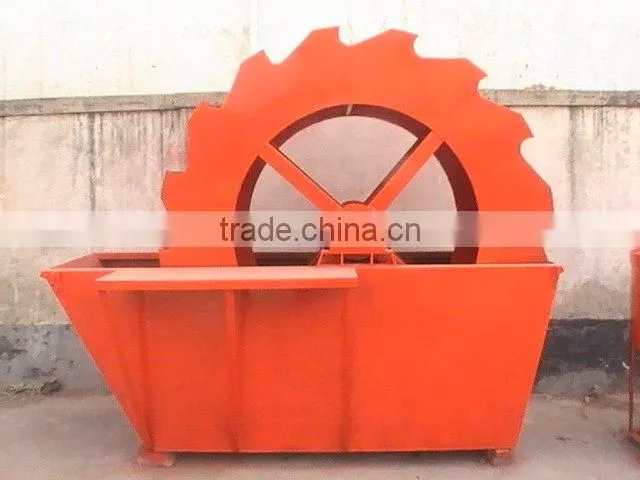

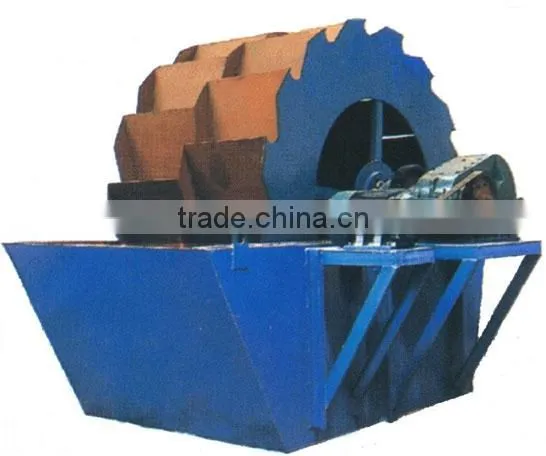

Sand removal machine
Sand removal machine introduction:
Sand removal machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effective and a kind of high efficiency sand washing equipment matched with the Sand Making Machine. Sand removal machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity
Sand removal machine operating principle:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used.
Sand removal machine characteristics:
Reasonable structure,
Large capacity,
Low consumption,
Little loss of the sand during the washing process,
Low failure rate.
Sand removal machine specification and technical parameter :
Models |
XSD2610 |
XSD2816 |
XSD3016 |
Impeller Specification (mm) |
Φ2600×1000 |
Φ2800×1600 |
Φ3000×1600 |
Impeller Speed(r/min) |
2600 |
3000 |
3600 |
Capacity (t/h) |
20-50 |
50-80 |
80-150 |
Feed Size (mm) |
≤10 |
≤10 |
≤10 |
Water Consumption (mm) |
20~60 |
50~100 |
70~120 |
Electric Motor Power (KW) |
7.5 |
15 |
18.5 |
Weight (t) |
2.68 |
3.26 |
4.3 |
Decelerator Models |
ZQ50-50-I-Z |
ZQ60-50-I-Z |
ZQ65-50-I-Z |
Overall Dimensions (L×W×H) |
3255×1982×2690 |
3540×3000×2880 |
3845×3000×3080 |
