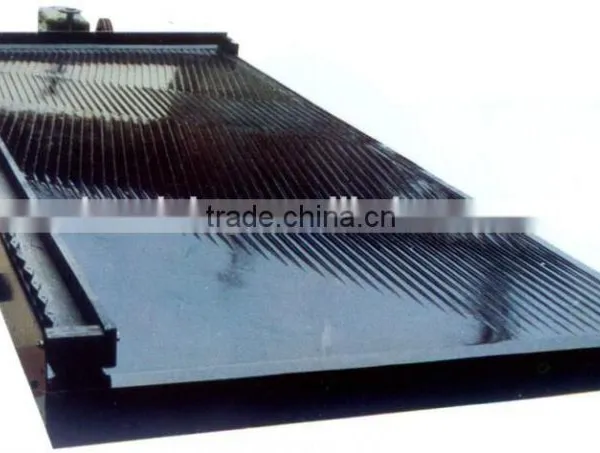

ISO9001:2008 Good quality copper separation shaking table
1. Introduction of Good quality copper separation shaking table
Shaking table is one of the main gravity separation equipment, which is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.etc. It owns the advantages of high concentration ratio and sorting efficiency, easy management and adjustment, achieving the final concentrate and tailings at one time.
2. Features of copper separation shaking table
1) Big steel intensity
2) Low water absorptivit, does not increase height
3) Good wearability of the work surface
4) Anti-chemical corrosion, acid do not avoid medicament in ore pulp
5) Good weather resistance, good shape stability
6) Good selection function, good index stability
3.Technical parameter copper separation shaking table
| Name | Bed length | Head width | End width | Max input size | Stroke | Water consumption | Function area | Bed fracture shape | Power | Weight |
| Unit | mm | mm | mm | mm | mm | Ton/ day | square meter | kw | kg | |
| Coarse sand | 4450 | 1855 | 1546 | 2.0 | 16-22 | 80-150 | 7.6 | Rectangel | 1.1 | 780 |
| Fine sand | 4450 | 1855 | 1546 | 0.5 | 11-16 | 30-60 | 7.6 | Sawtooth | 1.1 | 780 |
| Slime sand | 4450 | 1855 | 1546 | 0.15 | 8-16 | 10-17 | 7.6 | Triangular | 1.1 | 780 |

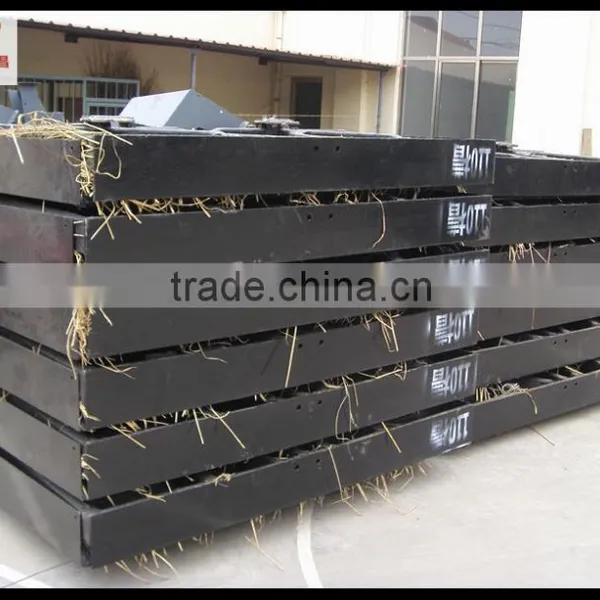

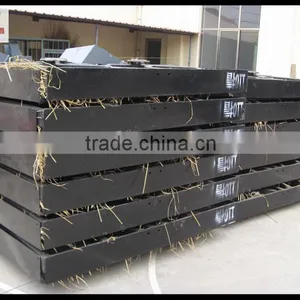

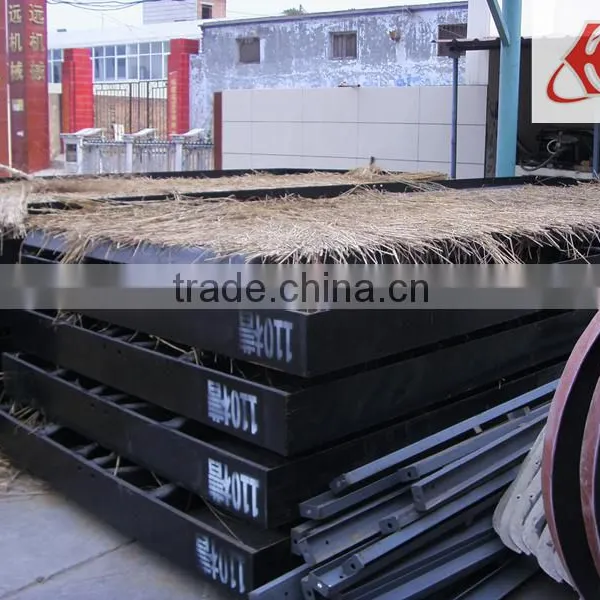

4. Pictures of copper separation shaking table for sale piling up and containner loading
5. Customer sites
6. Customers visiting our Factory
Vice Governor of Benue State, Nigeira ( front )
7. Our factory and workshop
