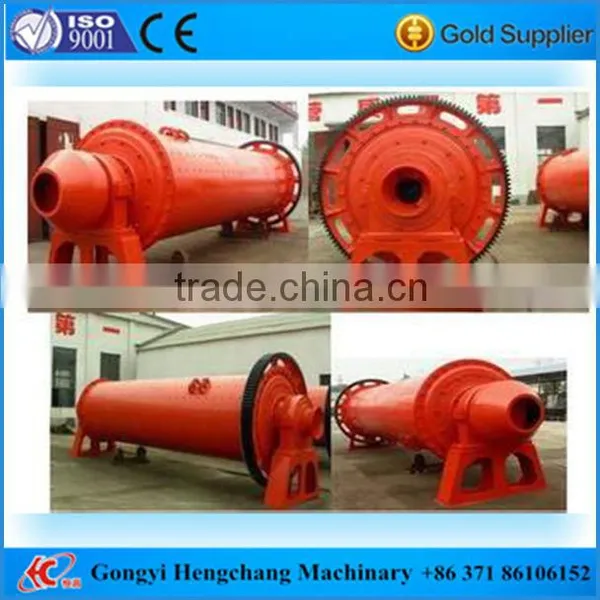

Ball mill liners on Ball mill machine for sale
Product Description

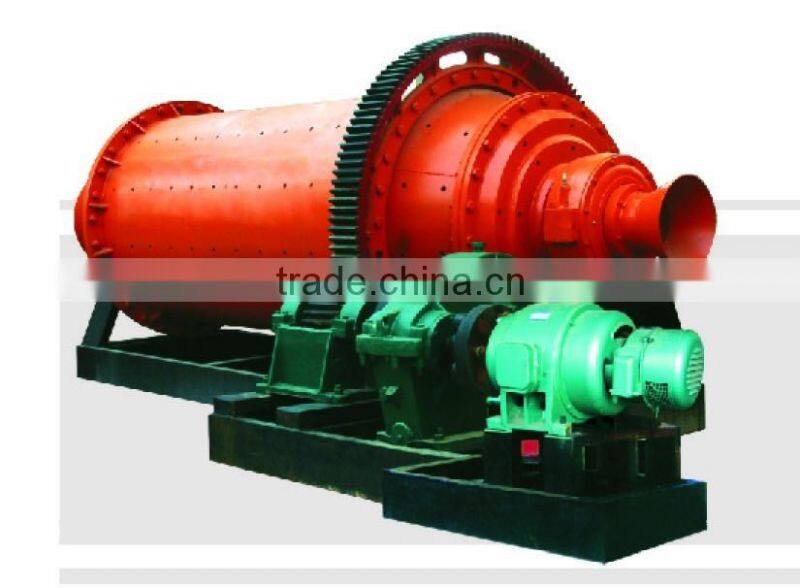

Ball Mill is a key equipment to grind all kinds of ores and other materials.which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics,
Ball Mill consists of feed&discharge parts, rotary shell, transmission part and other major components.Hollow shaft is with steel parts, lining is removable. Rotary gear adopts casting hobbing, and the tube body is with resisting liner.

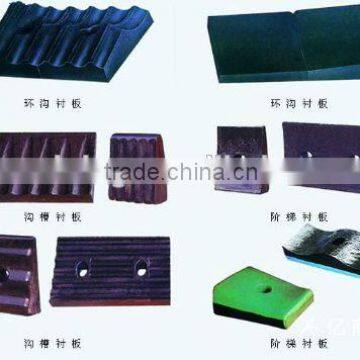

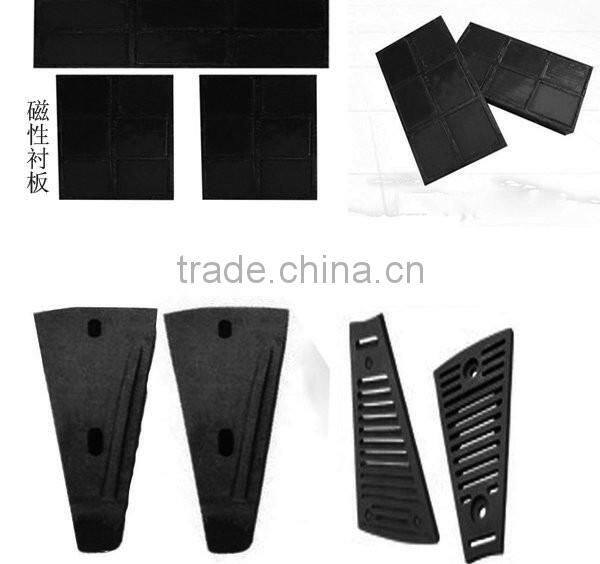

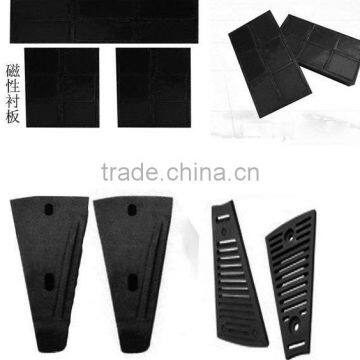

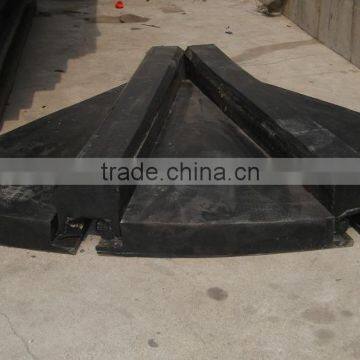

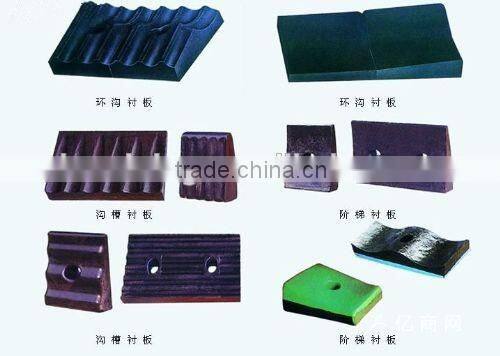

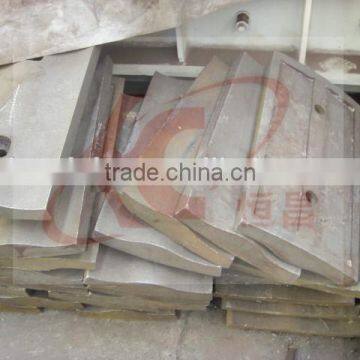

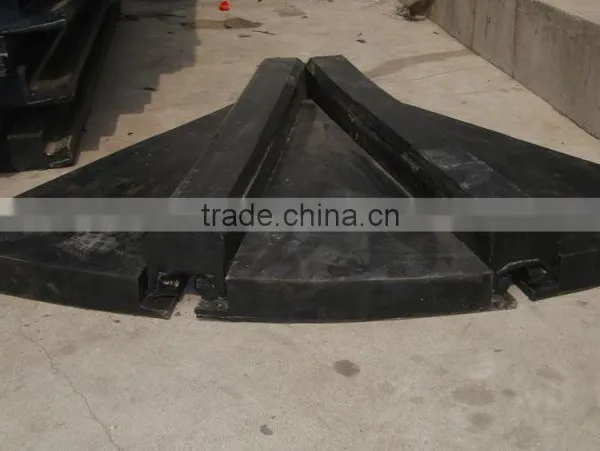

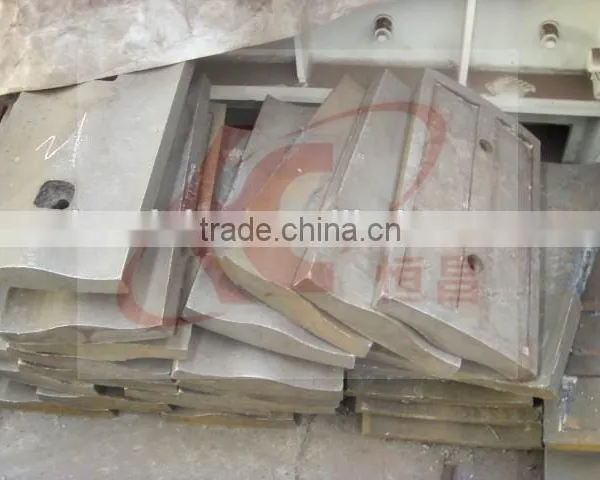

Different kinds ball mill liners:
Advantages of Hengchang high quality ball mill:
1.High efficiency of grinding
2.Low failure rate
3.Prosper design
4.Convenient usage.
Working Principle of Hengchang high quality ball mill:
The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid of ball mill. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The ball mill shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In ball mill second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Technical Data of ball mill:
Model |
Rotate Speed (r/min) |
Max. ball No (t) |
Feed size(m) |
Output size(mm) |
Capacity(t/h) |
Power (kw) |
Weight (t) |
YMQ750×1800 |
39 |
1.0 |
0-15 |
0.075-0.3 |
0.3-0.8 |
11 |
3.5 |
YMQ900×2100 |
37.8 |
1.5 |
0-15 |
0.075-0.3 |
0.8-2.1 |
15 |
5.2 |
YMQ1200×2800 |
37 |
5.2 |
0-20 |
0.075-0.3 |
1.2-6.2 |
30 |
10 |
YMQ1500×3500 |
29.7 |
8.0 |
0-25 |
0.075-0.3 |
2.8-9 |
75 |
17 |
YMQ1500×4500 |
29.7 |
9.5 |
0-25 |
0.075-0.3 |
2.8-10 |
90 |
20 |
YMQ1830×3600 |
25 |
11.5 |
0-25 |
0.075-0.3 |
5.2-25 |
130 |
28 |
YMQ1830×4500 |
25 |
16.5 |
0-25 |
0.075-0.3 |
5.2-30 |
155 |
32 |
YMQ2100×3600 |
24.6 |
17.4 |
0-25 |
0.075-0.3 |
6.5-40 |
180 |
41 |
YMQ2100×4500 |
24.6 |
22.5 |
0-25 |
0.075-0.3 |
6.5-42 |
210 |
46 |
YMQ2400×3600 |
22.4 |
23 |
0-25 |
0.075-0.3 |
7.2-92 |
210 |
65 |
YMQ2400×4500 |
22.4 |
28.5 |
0-25 |
0.075-0.3 |
7.2-95 |
245 |
72 |
YMQ2700×3600 |
20.7 |
40 |
0-25 |
0.075-0.3 |
12-145 |
320 |
80 |
YMQ2700×4500 |
20.7 |
50 |
0-25 |
0.075-0.3 |
12-155 |
380 |
90 |
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Customer visit
So far, Hengchang machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Indian, Arabia and so on.Welcome you visit our company.
