High cost performance lead flotation separator for sale
Gongyi Hengchang Metallurgy Building Material Equipments plant was established in 1992, and it is a professional manufacturer specializing in the production of hammer crusher, jaw crusher, coal briquette machine, rotary dryer, ball mill, spiral classifier, jigger machine, flotation machine and so on.

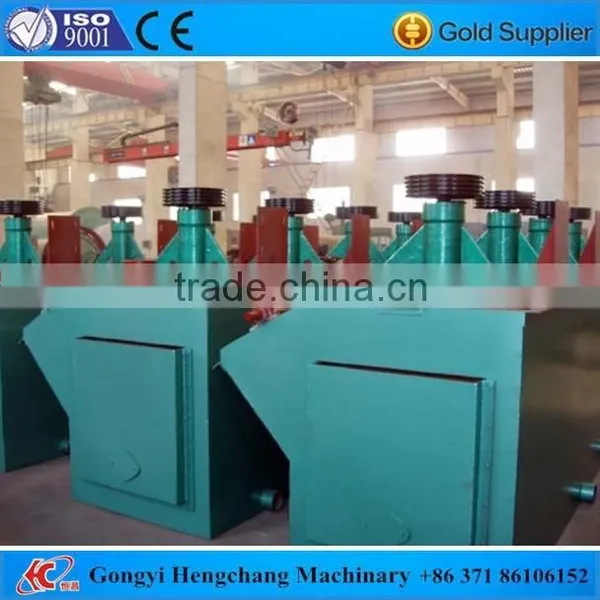

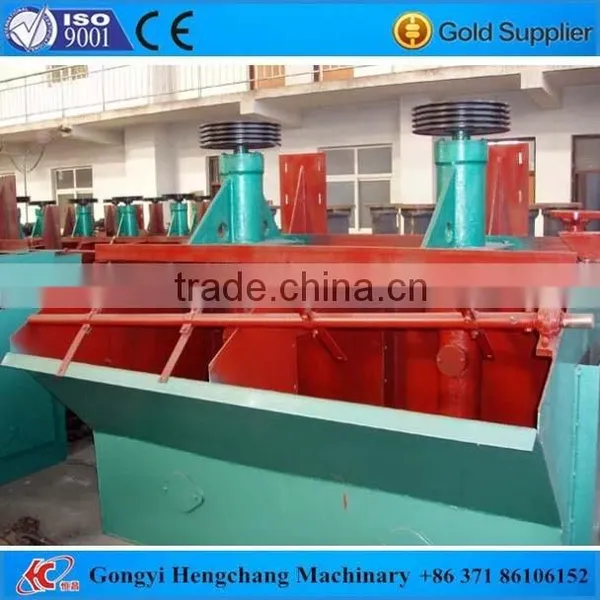

Flotation machine has the advanced forward-type tank structure, double-blade wheel, with a diversion pipe and false bottom device. The slurry in the slot flows in an up and down double fixed direction cycle, which is good for the coarse-grained mineral flotation. It can absorb fresh air and slurry, no need foam pump, suitable for separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals.
1. High recovery ratio
2. Every cell has three functions: disposition, slurry absorption, flotation separation
3. The strade can be changed
4. Strade contral the stablization of liquid level
Model |
SF-0.15 |
SF-0.37 |
SF-1.2 |
SF-2.8 |
SF-4 |
SF-6 |
SF-8 |
SF-10 |
SF-16 |
SF-20 |
|
|
Tank Volume (m3) |
0.15 |
0.37 |
1.2 |
2.8 |
4 |
6 |
8 |
10 |
16 |
20 |
|
|
Tank size (m) |
0.5×0.5 ×0.6 |
0.7×0.7 ×0.75 |
1.1×1.1 ×1.1 |
1.7×1.6 ×1.15 |
1.85×2.05 ×1.2 |
2.2×2.2 ×1.3 |
2.2×2.2 ×1.4 |
2.2×2.9 ×1.7 |
2.9×3.8 ×1.7 |
2.85×3.8 ×2 |
|
|
Capacity (m3/min) |
0.06-0.18 |
0.2-0.4 |
0.6-1.2 |
1-3 |
2-4 |
3-6 |
4-8 |
5-10 |
5-15 |
5-20 |
|
|
Suction intensity (m3/m2/min) |
0.5-1.0 |
0.8-1.0 |
0.8-1.0 |
1-1.2 |
1-1.2 |
0.9-1.0 |
0.9-1.0 |
0.9-1.0 |
0.9-1.0 |
0.9-1.0 |
|
Main Power |
Power (kw) |
1.5 |
1.5 |
5.5 |
11 |
15 |
30 |
30 |
30 |
30 |
30x2 |
|
Speed (r/min) |
940 |
1400 |
960 |
730 |
730 |
730 |
730 |
730 |
730 |
730 |
|
Impeller |
Dia. (mm) |
200 |
296 |
450 |
550 |
650 |
700 |
760 |
760 |
760 |
760 |
|
Height (mm) |
57 |
80 |
104 |
124 |
131 |
186 |
186 |
186 |
186 |
186 |
|
|
Speed (r/min) |
536 |
386 |
312 |
268 |
220 |
191 |
191 |
191 |
191 |
191 |
|
|
circle Speed (r/min) |
5.6 |
6.0 |
7.35 |
7.7 |
7.3 |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|
|
Scraper Speed (r/min) |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
weight(kg) |
538/2 |
936/2 |
2745/2 |
4676/2 |
5165/1 |
3000/1 |
4129/1 |
4686/1 |
8230/1 |
8530/1 |
|
If you are interested in our products, please contact:
