China High Quality Ore Washing, Ore Washing Machine

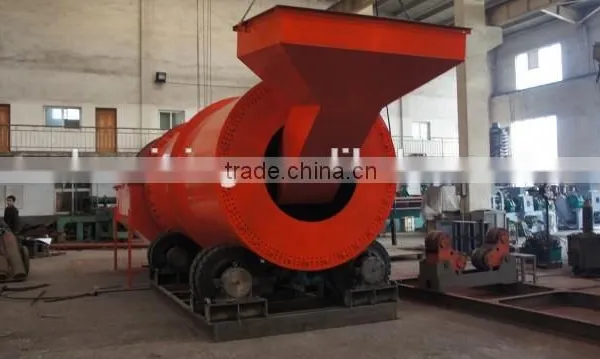

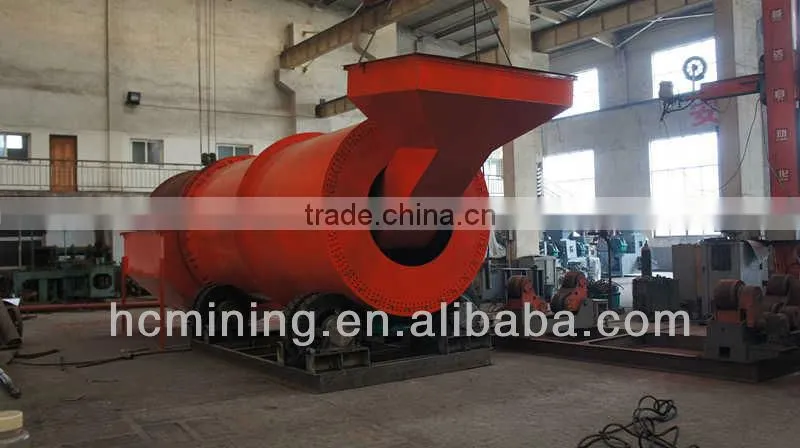

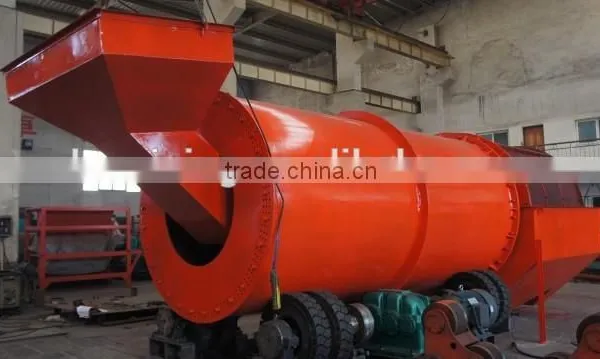

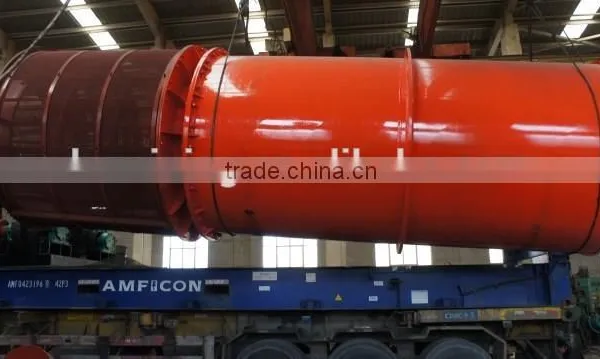

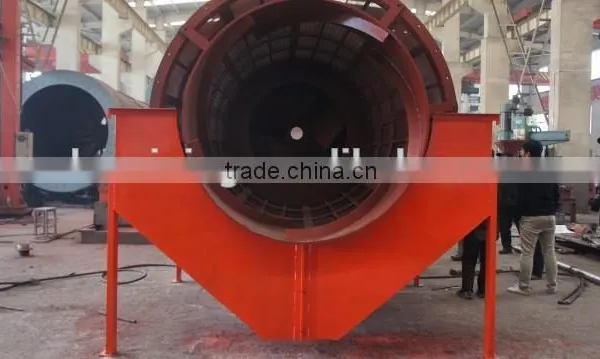

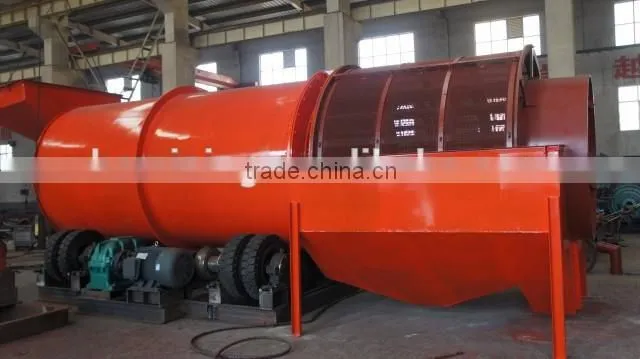

Ore washing machine has single or double layers circular sieve to classify two to three kinds of different grades sand and stone which should be clearly deslimed. Rotary Ore washing machine wash ore before beneficiation operation system, and improving the ore grade for next processing step. it can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and so on.
1.Designed to break up alluvial gravels, clays and sand.
2. High capacity and high power scrubbing.
3. The long drum of the scrubber retains material for longer, more vigorous washing for complete separation.
4. One high output electrical motor driving a gear system providing efficient torque.
5. Adjustable rotary speed.
6. The water with high pressure flushed the inwall of drum.
7. Can accept material up to 230mm.
8. Mechanical sealing of inlet chute – minimal spillage when over feeding.
Model |
Drum Dimension (mm) |
Screen Size (mm) |
Feeding Size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
GTX1030 |
Φ1000×3000 |
≤20 |
≤80 |
40 |
15 |
3.8 |
GTX1230 |
Φ1200×3000 |
≤25 |
≤100 |
70 |
22 |
4.7 |
GTX1430 |
Φ1400×3000 |
≤25 |
≤100 |
80 |
22 |
4.9 |
GTX1545 |
Φ1500×4500 |
≤25 |
≤160 |
120 |
30 |
6.9 |
GTX2265 |
Φ2200×6500 |
≤50 |
≤230 |
180 |
37 |
15.9 |
♥ Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day
♥ Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
♥ Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged).

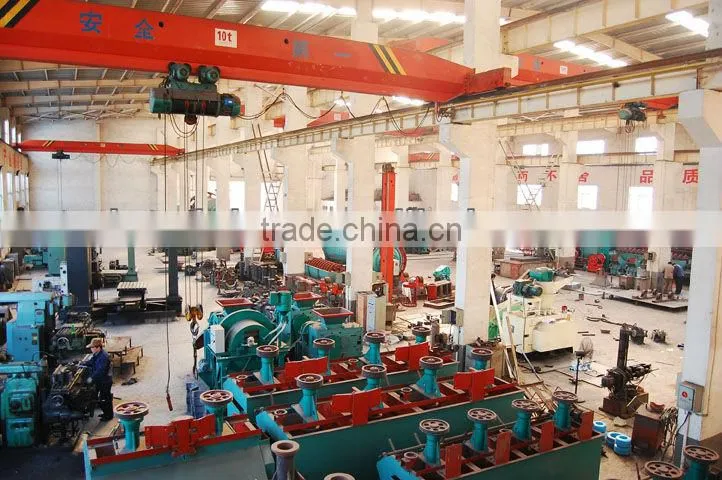

Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
