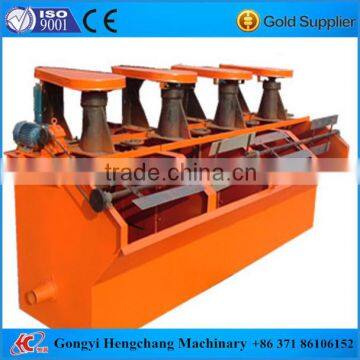

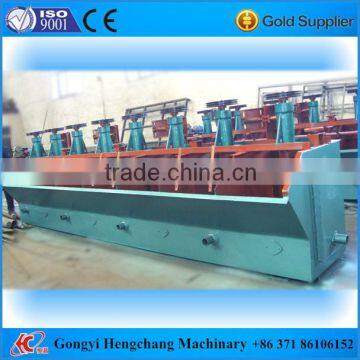

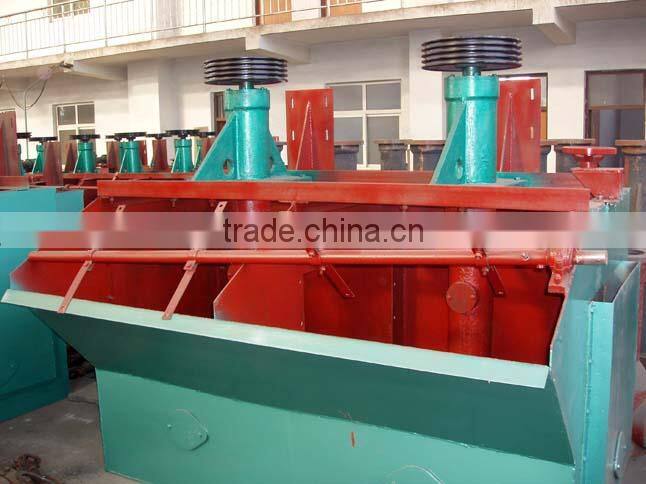

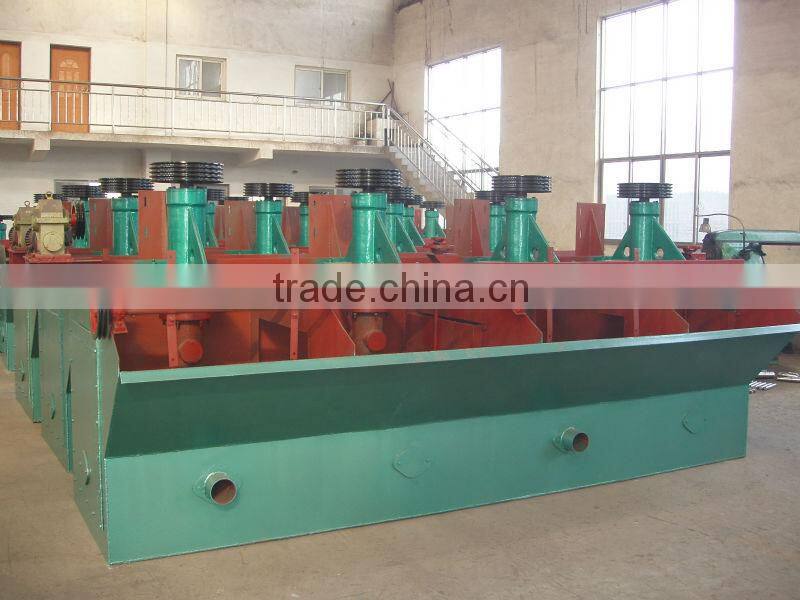

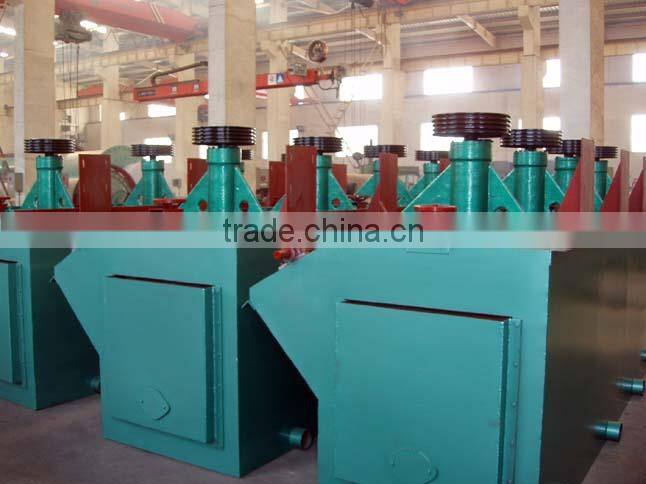

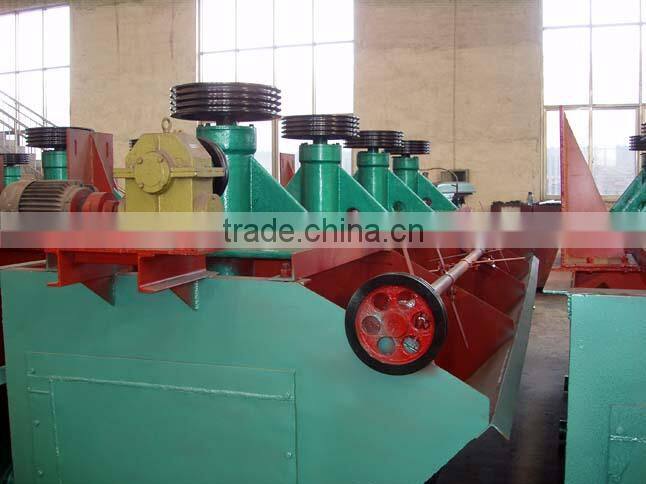

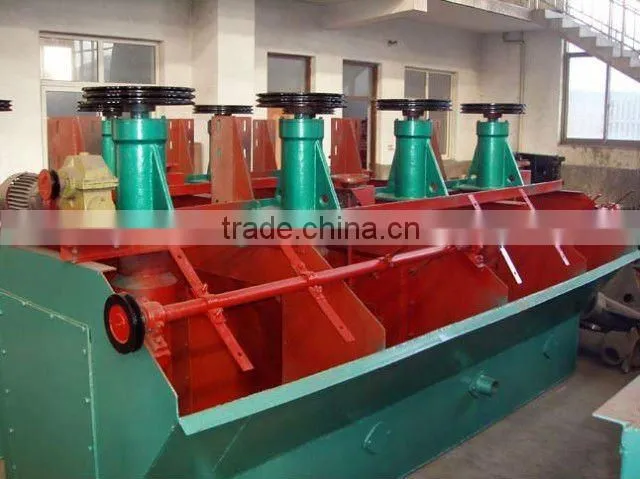

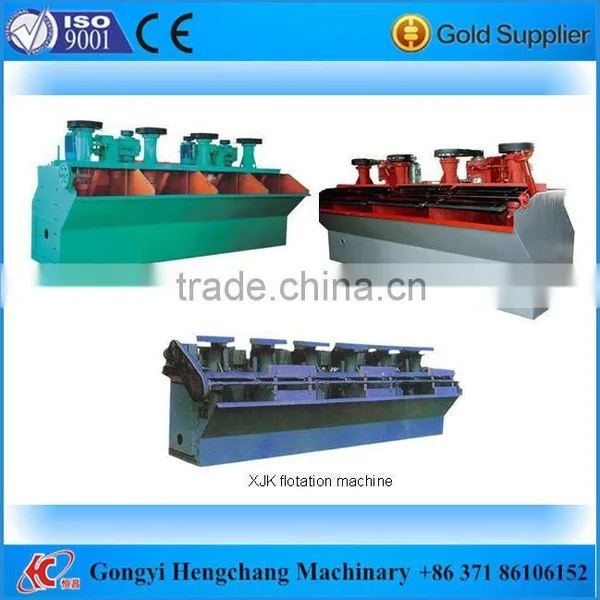

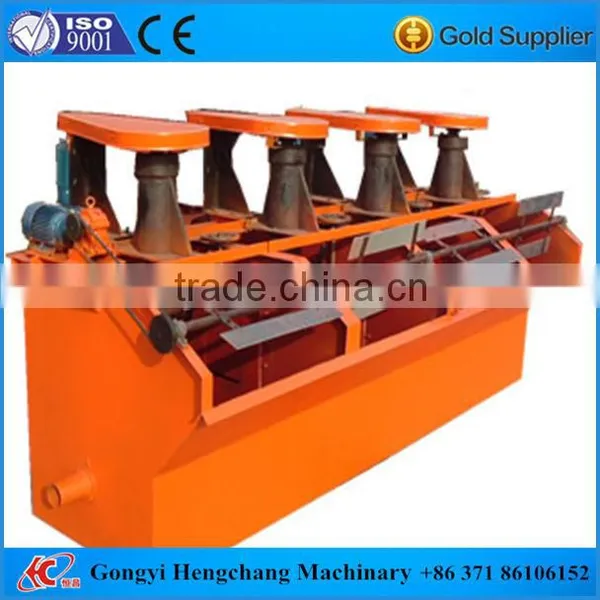

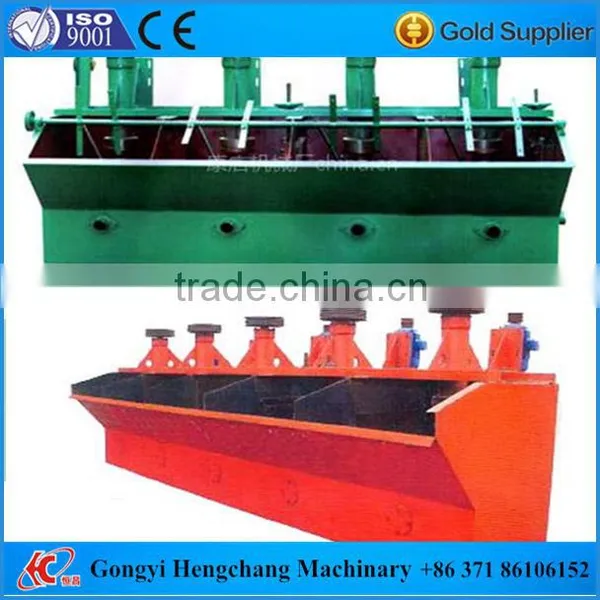

Hengchang Mining ore air flotation machine
Professional ore processing equipment/ Hengchang Mining ore air flotation machine
XJ mechanical agitating flotation machineis suitable forseparation ofnon-ferrous metals, ferrous metals, precious metals,non-metallic mineraland chemical raw materials, recovering usefulminerals.This machine has the features of the bigsuctioncapacity andlow power consumption.Every slot has the triplefunction of suction, groutand flotation which become the complete flotation circuit without anyauxiliary equipment installing the machine in a actinic line it will be easier for the flow process change, the rational slurry cycle and furthest reducing the coarse sand sinking.
Structure and working principle of Mining ore air flotation machine:
XJK series of Flotation machine consists of flotation cells, impeller, belt pulley, inlet pipe, strobe, covering plate, standpipe, draw bar, etc.
When the floatation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Features of Mining ore air flotation machine:
1. large air-absorption capacity
2. low energy consumption
3. less reagents consumption
4. easy to maintenance and can be designed according to the users.
5. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow.
6. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
Technical Parameters of Mining ore air flotation machine:
Model |
XJK—2(A) |
XJK—3(A) |
XJK—4(A) |
XJK—5(A) |
XJK—6(A) |
XJK—7(A) |
|
Slot Volume (m3) |
0.23 |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
Impeller Dia.(mm) |
250 |
300 |
350 |
500 |
600 |
750 |
Impeller Speed(r/min) |
500 |
483 |
400 |
330 |
280 |
240 |
Capacity(m3/min) |
0.12-0.28 |
0.18-0.5 |
0.3-0.9 |
0.6-1. 6 |
1.5-3.5 |
3-7 |
Slot Size(mm) |
600×600 ×650 |
700 × 700 ×750 |
820×900 ×850 |
1100×1100 ×1000 |
1750×1600 ×1100 |
2200×2200×200 |
Power(Kw) |
3/2 slots |
3/2 slots |
3 |
5.5 |
11 |
15 |
Weight(kg/Slot) |
1158/4 |
1720/4 |
2500/4 |
4514/2 |
4514/1 |
7066/4 |

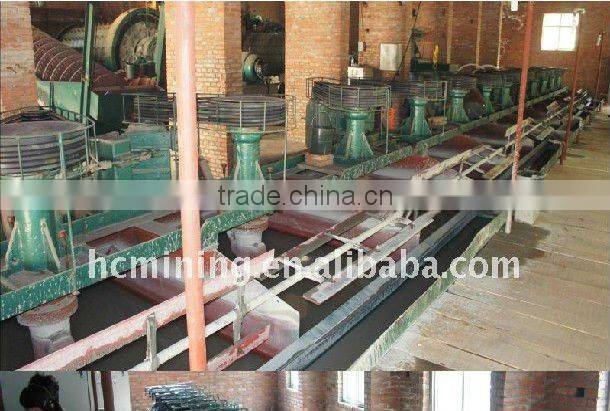

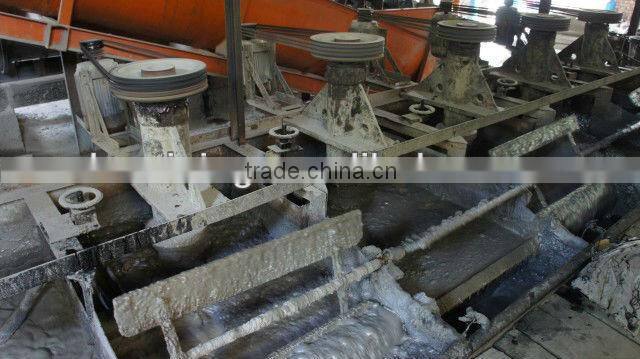

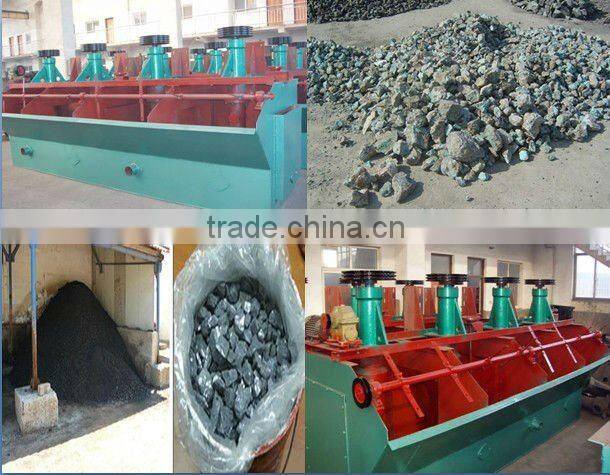

Application site of Mining ore air flotation machine:

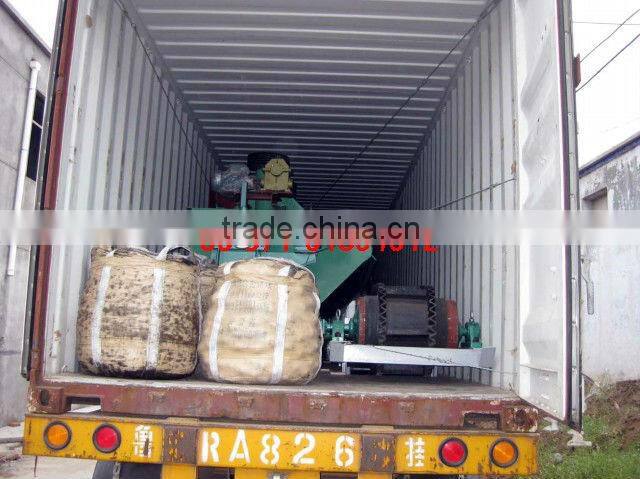

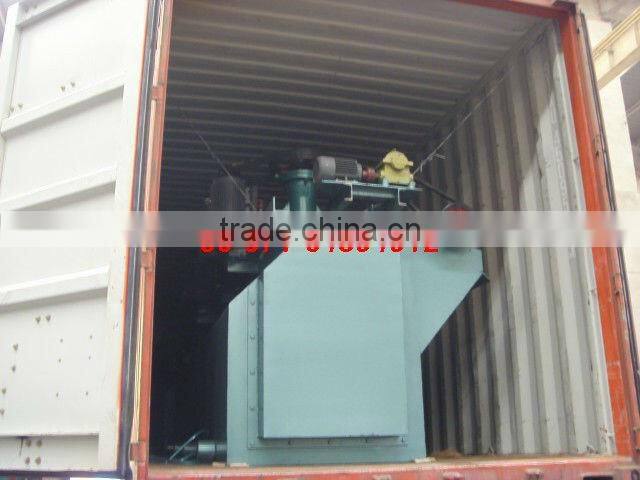

Delivery of flotation machine:
1. If the customers inquiry our machines, we will quote as soon as possible.
2. Our engineer will design the project according to the information our customers provide us, which is
included the flow chart, the flash of project.
3. After our customer makes sure our project, please pay 30% of total amount, then we will arrange our
workshop to produce the products.
4. Twenty days later, we will package and ship the goods to ours customers after recieving the whole
price.
5. If our customer needs our guide, we will send our after-sales person to guide the installtion.
6. We will provide the best price of wear parts to our customers in the lifetime of the machine.
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
