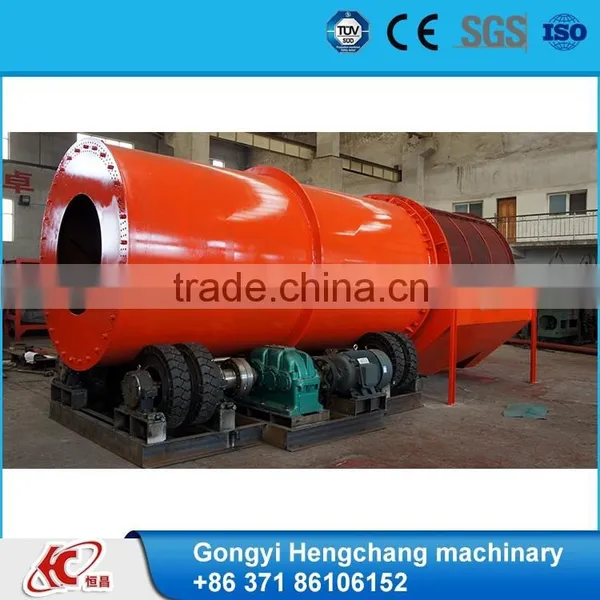

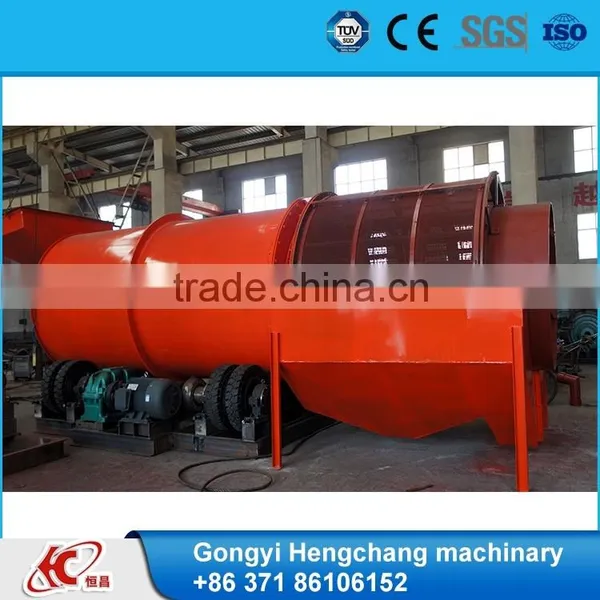

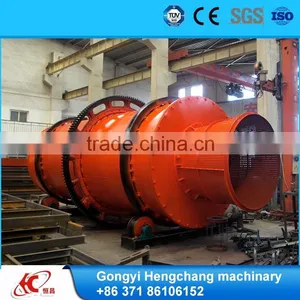

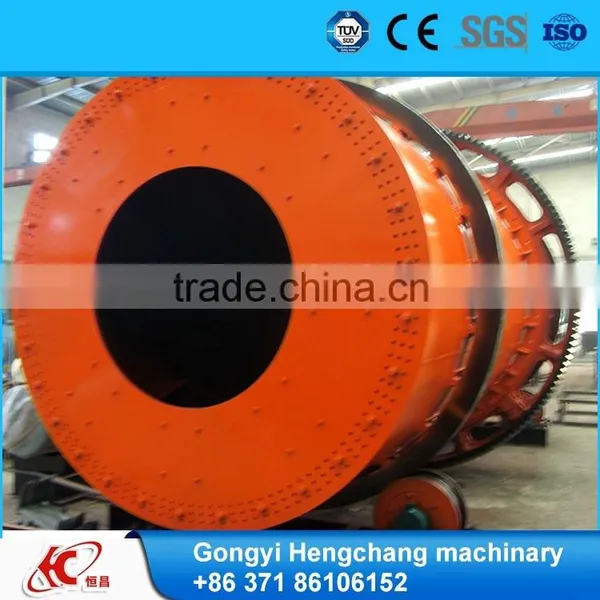

Introduction of Alluvial gold trommel wash plant price gold wash plant
GTX Rotary Ore washing machine has single or double layers circular sieve to classify two to three kinds of different grades sand and stone which should be clearly deslimed. It is mainly used for washing ore before beneficiation operation system, and improving the ore grade for next processing step. it can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and so on.
Working process of Alluvial gold trommel wash plant price gold wash plant
washing machine rotary scrubber, the slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
The rotary scrubber is an autogenous rotating drum scrubber, utilising pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end.
Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.
The scrubber spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist's and rock.
After the fine (soil) is separated, the material is moved into the screen.
The rotating screen separates the oversize material from the fines (the fines are usually termed or categorized into less than 8mm).
Most of the freely (gravity) recoverable gold and or other recoverable mineral is contained in the – 8mm fines.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Main Features of Alluvial gold trommel wash plant price gold wash plant
♦ High capacity and high power scrubbing
♦The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
♦ Thickening type steel plate for the drum
♦ Heavy duty bearing, gear and roller
♦ Wearable screen at the exit of drum for screening
♦ One high output electrical motor driving a gear system providing efficient torque
♦ The water with high pressure flushed the inwall of drum
♦ Can accept material up to 230mm
♦ Shell design less mass than conventional roller supported units – installation craneage requirement reduced
Machine Parts
Name: Motor reducer
Main Features

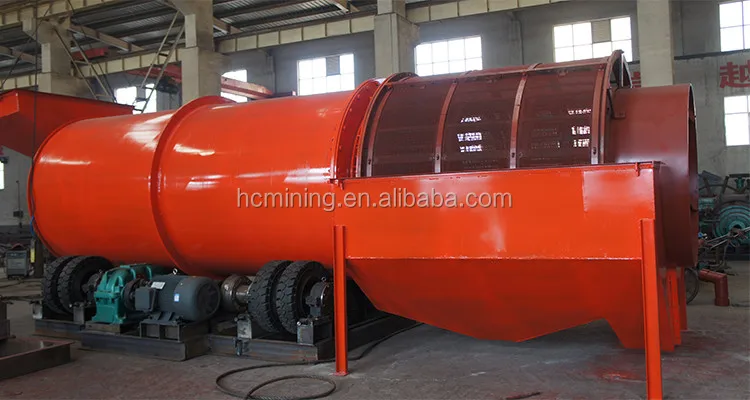

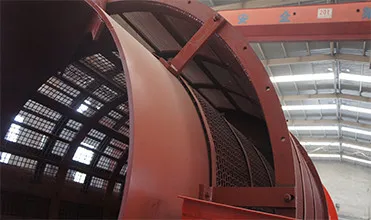

Name: Double Screen
These screen will separated the different particals, big size as waste and fine size will processed again.
Machine Features

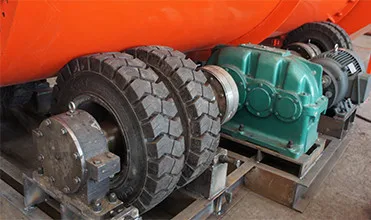

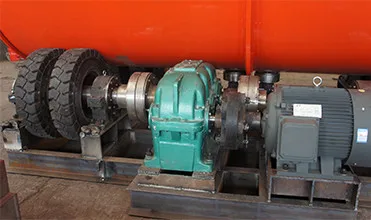

Name: Tyre driving
Tyre drving model gold washing plant has low noise and work smoothly.
Main Features

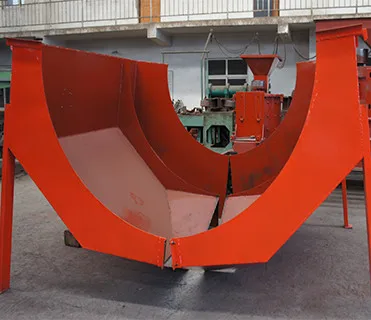

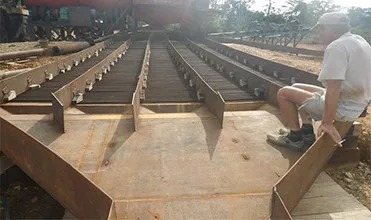

Name: Sluice chute
In the sluice chute, we can put the gold collection carpet, and after one day, we can gather the gold.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

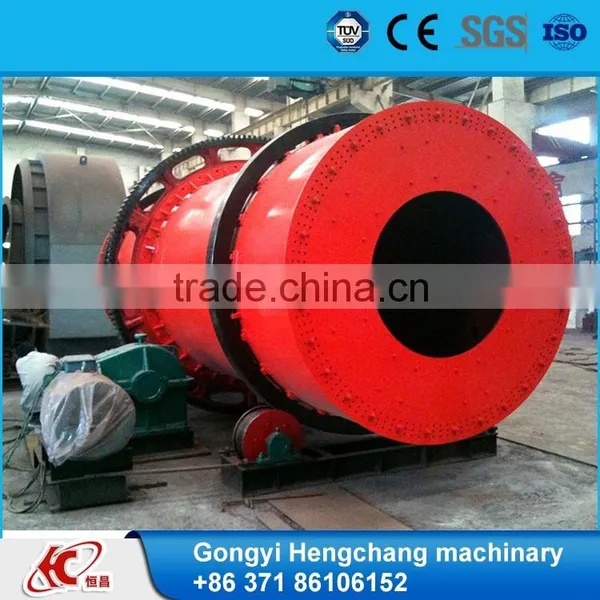

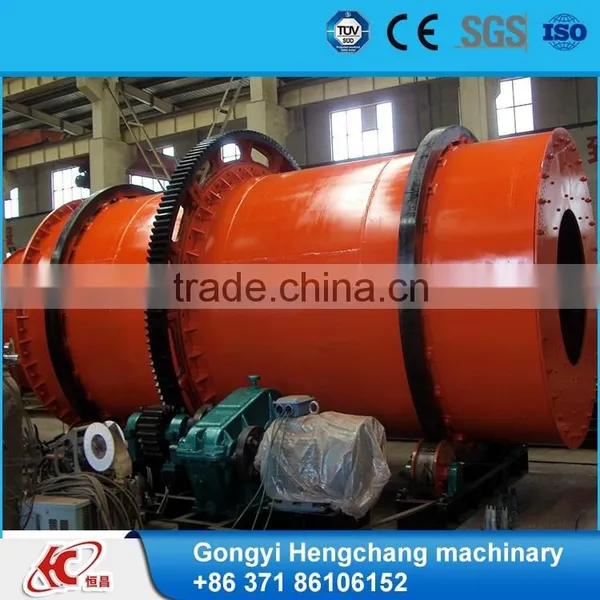

Gear Drive Model Rotary Ore Washing machine
