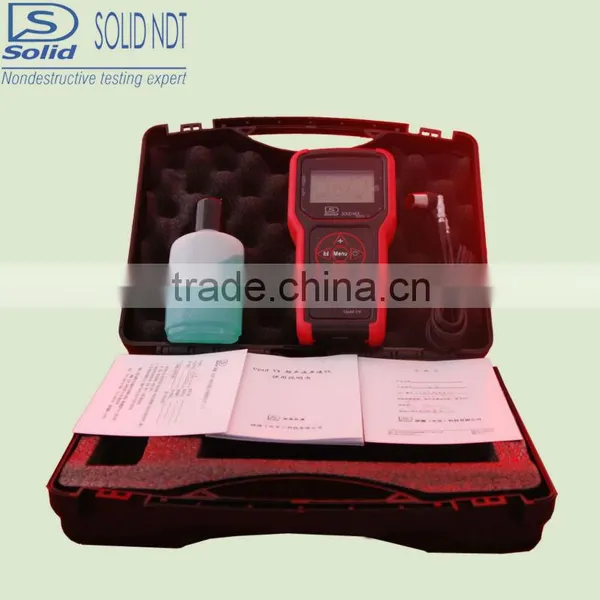

digital ultrasonic portalbe velocity gauge
- 50 Set / Sets per Month
- Beijing
- Credit Card
- Laboratory Intelligent Automatic WJL Series Laser Particle Size Analyzer
- Laboratory Digital Torque Wrench Calibration Tester Machine ANBH
- Laboratory Measuring Instrument High Precision Digital Torsion Spring Tester
- Physical Testing Digital Multi-range Torque Wrench Calibrator Tester
- Fabric Strength Tester
- Vibration Meter
Product Details
Place of Origin: | Beijing, China | Brand Name: | Solid | Model Number: | UpadVX |
Product Description
Specifications
1 Nodularity guage using2 Nondestructive Velocity Testing
3 Auto Probe Zeroing Calibration Without Block
Spercifacation
Principle | Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | |||
Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | |||
Nodularity | Percentage: 50~100%,1% Grade:1-6 | Thickness Range | 0.75-50mm | |||
Velocity | 1000~9999m/s | Weight | 250g | |||
Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | |||
Auto Probe Zeroing Calibration | Pulser | 150V Negative Pulse | ||||
Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | ||
Coupling Indicator | Bandwidth | 0.5-15MHz | ||||
Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | ||
Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | ||||
DISLAY | LCD | High-Contract 128*64 | File: Max, Min AVG, mean square error | |||
Beautiful printed characters, Number , Symbol, High Brightness EL Backlight | Alarm | Threshold Acoustooptical Alarm | ||||
Memory | Files | 1000 groups | ||||
Thickness Logging | 1000 data sets/group ,liner | |||||
Update Rate | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | |||
Scan Mode: 25times/s | ||||||
More Details
USB Parts
Series Products
Our Certification
We established in 2006. We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
