Help CenterSolid 2013 Newest Used Metal Nodularity Measuring Gauge Price
Related Products
-
Digital Ultrasonic Portalbe Velocity GaugeNegotiableMOQ: 1 Set -
Digital Velocity GaugeNegotiableMOQ: 1 Set
-
Digital Portable Velocity GaugeNegotiableMOQ: 1 Set
-
Digital Vibration Velocity SensorUS$ 750 - 800MOQ: 1 Set
-
Vibration Velocity Sensor From Solid (Beijing) Technology Co.,LtdUS$ 750 - 800MOQ: 1 Set
Specifications
1 Nodularity guage using2 Nondestructive Velocity Testing
3 Auto Probe Zeroing Calibration Without Block
1 Nodularity guage using
2 Nondestructive Velocity Testing
3 Auto Probe Zeroing Calibration Without Block
Advantages
What can we do for you?
1, we own 8 years of NDT experience. We can supply the professional solutions for you.
2, Independent R & D team can help your company to undertake the OEM project.
3, Comparing the warranty period with other enterprises we can guarantee the quality for 2 years.
4, Our partners are Qinghua University, BJEA, GE, ALSTOM, REXROTH, SMS and so on. We also can enjoy the government preferential policy. It will be our proud if you become our partner.
5,Our products already were provided to the world. We also have a lot of agents around the world. You can get the biggest discount from Solid NDT company.
Specification
Measuring Range |
1.0-1,200mm |
|||||
Measuring Resolution |
0.01mm(< 100mm)/ 1mm(>100mm) |
|||||
Velocity |
500~20,000m/s( 20 fixed velocities) |
|||||
Delay |
Display Delay: -20~3400us resolution: 0.1us Probe Delay : 0~99us resolution: 0.01us |
|||||
Auto Calibration |
Velocity Calibration& Probe Delay Calibration |
|||||
Linear Error |
Horizontal linearity error≤0.1% Vertical linearity error ≤3% |
|||||
Dynamic Range |
≥36dB |
|||||
Sensitivity Leavings |
≥64dB 200mm 2 flat-bottomed hole |
|||||
Dimension (mm) |
240*180*50 |
|||||
Weight |
1.9Kg(including battery pack) |
|||||
Working Environment |
Temperature:-20°C~70°C, Humidity:5%~90%, |
|||||
Pulse |
150V Negative Pulse |
Damping :50/150/400Ω |
||||
Pulse repetition frequency PRF could be adjusted | ||||||
Receiver |
Measuring mode:Peak /Verge |
Bandwidth:0.3~1 / 0.5~4 /2~15MHz |
||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | ||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | ||||||
Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 | ||||||
Display |
LCD |
TFT Color. Display,5 options for variable brightness. |
||||
GUI Theme |
Simple/Classical/Gray/Bright Light/ Dark Light |
|||||
Screen Update Rate |
≥60 Hz |
|||||
Gate/Measuring/ Alarm |
Gate |
Two Separated Gates A/B |
||||
Value Display |
5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB |
|||||
Alarm |
Thickness Value Threshold Alarm ,Separated Gate Alarm Logically |
|||||
Memory |
Channelparameters: 20 groups |
A Scan: 2000 groups |
||||
|
|
|||||
|
A Scan: 2000 groups |
||||||
| Memory | ||||||
More Details
USB Parts
Back

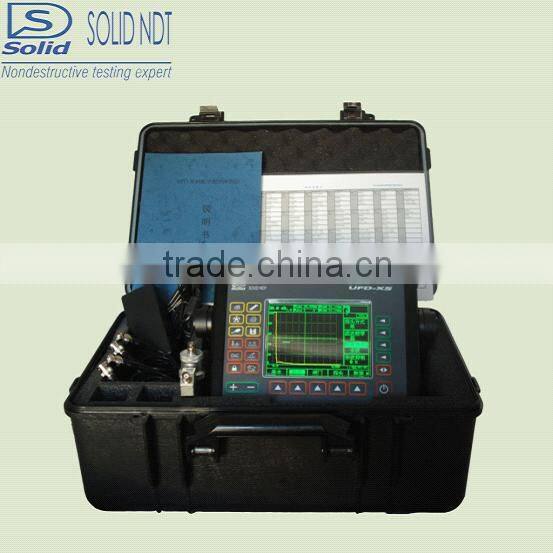

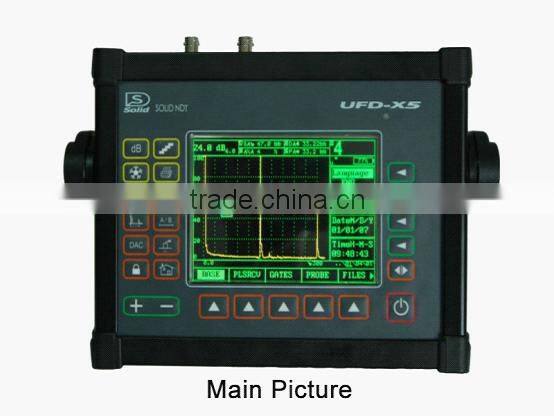

Whole Picture
Our Certification
We established in 2006. We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
