Solid USB Z6E Connection electricity ultrasonic flaw detector manual
- 50 Piece / Pieces per Month
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
- Laboratory Intelligent Automatic WJL Series Laser Particle Size Analyzer
- Laboratory Digital Torque Wrench Calibration Tester Machine ANBH
- Laboratory Measuring Instrument High Precision Digital Torsion Spring Tester
- Physical Testing Digital Multi-range Torque Wrench Calibrator Tester
- Fabric Strength Tester
- Vibration Meter
Product Details
Place of Origin: | Beijing, China | Brand Name: | Solid | Model Number: | UFD-X5 |
Product Description
Specifications
electricity ultrasonic flaw detector manualUSB for Storage ,Plug and Play
B Scan-Display Flaw Directly
5 intelligent DAC cur
electricity ultrasonic flaw detector manual

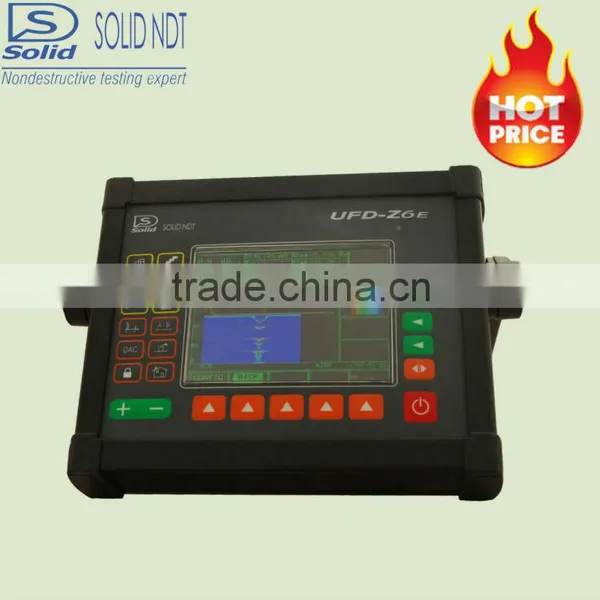

UFD Z Series Ultrasonic Flaw Detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
Z Series Ultrasonic Flaw Detector is a portable detecting station for taking you in a better siuation
FUNCTION
Post Insulator, Professional Insulator Button
Post Insulator, Professional Insulator Climbing Probe
Professional insulator detector blocks
Adjustable Transmitting Pulse
USB for Storage ,Plug and Play
B Scan-Display Flaw Directly
Massive Data Memory
320,000 Data Group/200,000 thickness values/10 min vedio
5 intelligent DAC curves, comply to JIS and API standard.
DGS curve: Flat bottomed, Flat-bottomed Hole, Through Holes as references
PERFOMANCE
Broad & Narrow Band Amplifier, which avoid disturb better
Square Wave Pulser
High accuracy: 10 places for AD sample
Extra-long Standby Time:
20 hours, getting rid of trouble from battery
Display screen could be adjusted to provide 5 optimum
Magnalium alloy coated, AP65 encapsulation, strong and durable, avoiding electro-magnetic interference.
Measuring Range | 1.0-1,500mm | |||
Measuring Resolution | 0.01mm(< 100mm)/ 1mm(>100mm) | |||
Velocity | 500~20,000m/s( 20 fixed velocities) | |||
Delay | Display Delay: -20~3400us resolution: 0.1us | |
Probe Delay : 0~99us resolution: 0.01us | ||
Auto Calibration | Velocity Calibration& Probe Delay Calibration | |
Linear Error | Horizontal linearity error≤0.1% Vertical linearity error ≤3% | |
Dynamic Range | ≥36dB | |
Sensitivity Leavings | ≥64dB 200mm2 flat-bottomed hole | |
Dimension (mm) | 240*180*50 | |
Weight | 1.9Kg(including battery pack) | |
Working Environment | Temperature:-20°C~70°C, Humidity:5%~90%, | |
Pulser | 150V Negative Pulse | Damping :50/150/400Ω |
Negative Pulse/Square Wave | Pluser Width:50-2000ns |
Pulse repetition frequency PRF could be adjusted | |||||||||
Receiver | Measuring mode:Peak /Verge | Bandwidth:0.3~1/ 0.5~4/2~15MHz Narrowband:1/2.5/5/10/15MHz | |||||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | |||||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | |||||||||
Gain :0 to 110dB Customers define steps 0/0.1/0.2/0.5/1/2/6/12 | |||||||||
Display | LCD | TFT Color. Display,5 options for variable brightness. | |||||||
GUI Theme | Simple/Classical/Gray/Bright Light/ Dark Light | ||||||||
Screen Update Rate | ≥60 Hz | ||||||||
Gate/Measuring/ Alarm | Gate | Two Separated Gates A/B | |||||||
Value Display | 5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB | ||||||||
Alarm | Thickness Value Threshold Alarm ,Separated Gate Alarm Logically | ||||||||
Memory | Channelparameters: 20 groups | A Scan: 2000 groups | |||||||
Thickness Logging: 320,000 data sets ,liner | Wave Video: 10 min | Reference Wave:4 | |||||||
Input/Output | Probe Cable: LEMO/BNC | Communication :RS232 | |||||||
Area | Language: Chinese /English | Unit: mm/inch | Clock: Date and Time | ||||||
Power Source | Battery: High power lithium battery ,capable of preventing over-charge and over-discharge | ||||||||
Power Indicator:Proportional battery gauge indicating remaining operation time | |||||||||
Working Time: Continuous working over 10 hours | |||||||||
Power adapter: Input 100~240V/50~60Hz output 9VDC/4A | |||||||||
High Grade | USB for Storage | 3 kinds of data report, screenshot , wave, thickness value | |||||||
Dynamic Echo | Digital Nature,Simulation Performance |
Gate: | Analysis the details of the wide gate area |
B Scan: | Thickness/ Shape scan Gray/Color board Design |
Echo Coding | Coordinate/Waveform, Calculating Echo-Echo distance |
Freezing Curve | All/Peak/Contrast/Envelope/Delay | |||||
Feature Indicator | Measuring of the sound distance wave front & amplitude | |||||
CSC Curve Calibration | Value correction according to probe angle, pieces thickness and curvature diameter | |||||
Lock | Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete | |||||
Screen saver | Standby/Character/Power Off | |||||
Equivalent Curve | DAC curve | Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard | ||||
DGS Curve | DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; | |||||
